1040310811
Manufacturer:
Molex
Mfr.Part #:
1040310811
Datasheet:
Description:

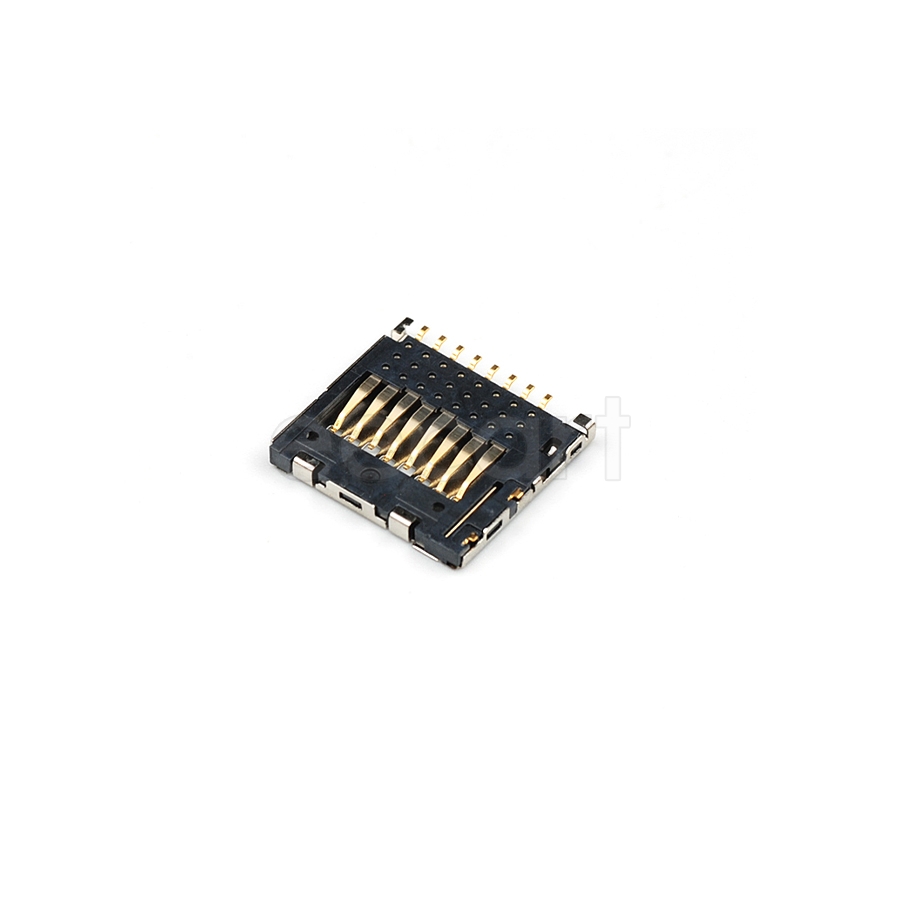

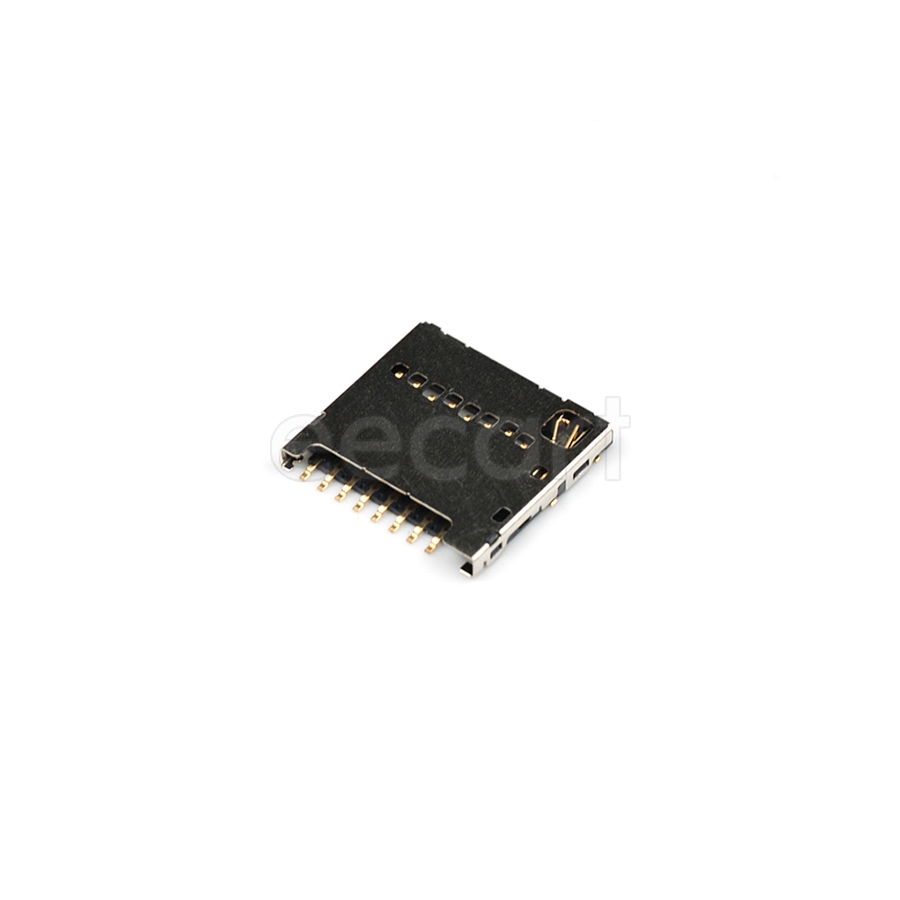

Memory Connectors SMD/SMT Number of Positions:10 (8 + 2) Connector
| Parameter | Value |
|---|---|
| Length | 11.14 mm |
| Width | 11.4 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 10 V |
| Height | 1.42 mm |
| Voltage Rating | 0.01 V (10 mV) |
| Depth | 11.4 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 1.1 mm |
| Current Rating | 500 mA |
| Memory Type | FLASH |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 8 |
| Ambient Temperature Range High | 85 °C |
| Connector Type | Connector |
| Number of Rows | 1 |
| Housing Material | Stainless Steel |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Packaging | Reel |
| Number of Positions | 10 (8 + 2) |
Stock: 3026
Distributors
pcbx
pcbxUnit Price$0.73939
Ext.Price$0.73939
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73939 | $0.73939 |
| 10 | $0.59395 | $5.93950 |
| 25 | $0.54274 | $13.56850 |
| 50 | $0.49594 | $24.79700 |
| 100 | $0.45318 | $45.31800 |
| 300 | $0.41896 | $125.68800 |
| 500 | $0.38732 | $193.66000 |
| 1000 | $0.36433 | $364.33000 |
