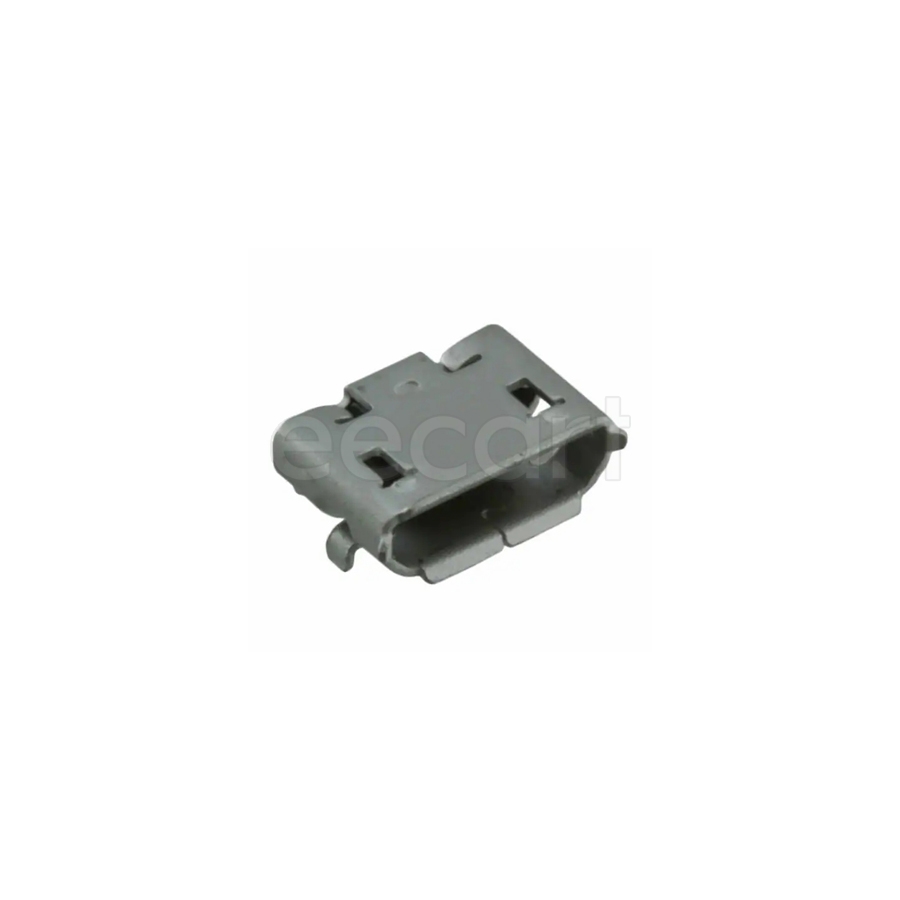

105017-0001
Manufacturer:
Molex
Mfr.Part #:
105017-0001
Datasheet:
Description:
USB Connectors SMD/SMT Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.2 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 2.825 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 7.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Copper |
| Pitch | 650 µm |
| Number of Terminals | 5 |
| Current Rating | 2.5 A |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
Stock: 12173
Distributors
pcbx
pcbxUnit Price$0.55656
Ext.Price$0.55656
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55656 | $0.55656 |
| 10 | $0.49159 | $4.91590 |
| 25 | $0.45397 | $11.34925 |
| 50 | $0.43858 | $21.92900 |
| 100 | $0.41464 | $41.46400 |
| 300 | $0.39314 | $117.94200 |
| 500 | $0.37275 | $186.37500 |
| 1000 | $0.35480 | $354.80000 |
