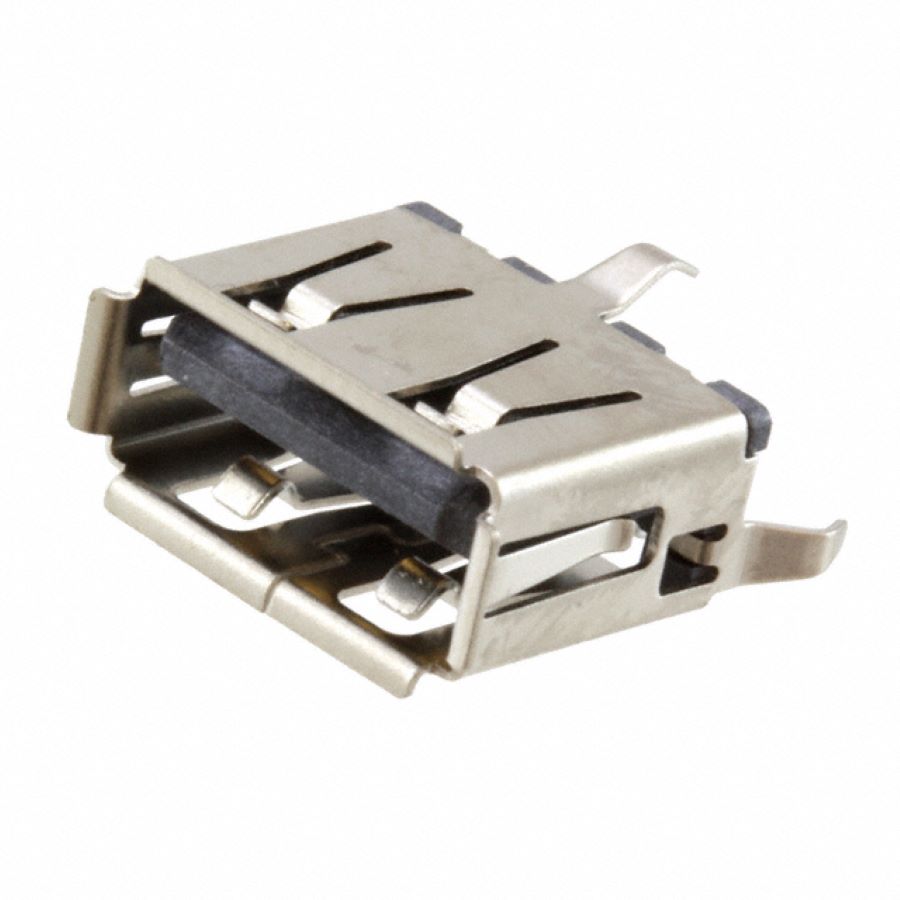

105057-0001
Manufacturer:
Molex
Mfr.Part #:
105057-0001
Datasheet:
Description:
USB Connectors Through Hole Jack (Female) USB
| Parameter | Value |
|---|---|
| Length | 14.68 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 10.75 mm |
| Packaging | Tray |
| Voltage Rating | 30 V |
| Depth | 14.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 2 mm |
| Number of Terminals | 4 |
| Current Rating | 1.5 A |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Jack (Female) |
| Shielding | Shielded |
| Number of Contacts | 4 |
| USB Standard | USB |
| Connector Type | Receptacle, USB |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Tin |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Vertical |
Stock: 3157
Distributors
pcbx
pcbxUnit Price$0.74464
Ext.Price$0.74464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74464 | $0.74464 |
| 10 | $0.60358 | $6.03580 |
| 25 | $0.59674 | $14.91850 |
| 50 | $0.56688 | $28.34400 |
| 100 | $0.53852 | $53.85200 |
| 300 | $0.51158 | $153.47400 |
| 500 | $0.48598 | $242.99000 |
| 1000 | $0.46166 | $461.66000 |
