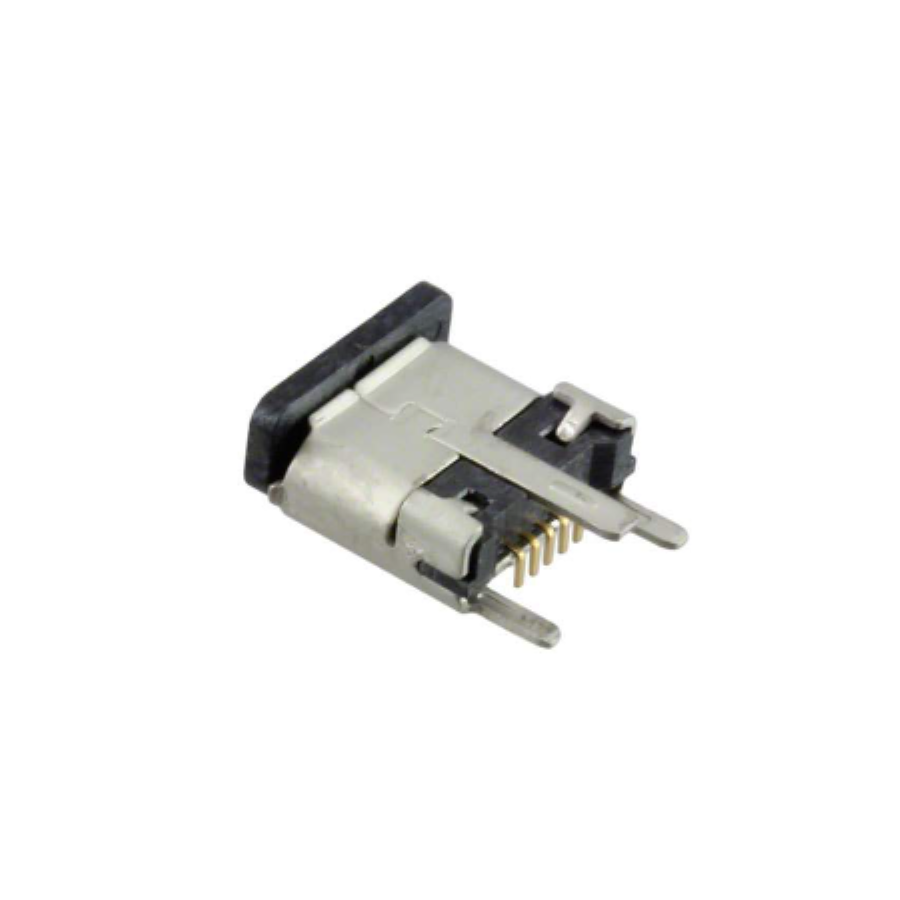

105133-0011
Manufacturer:
Molex
Mfr.Part #:
105133-0011
Datasheet:
Description:
USB Connectors SMD/SMT Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 6.95 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 4.45 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 650 µm |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Mounting Angle | Vertical |
Stock: 7247
Distributors
pcbx
pcbxUnit Price$0.71301
Ext.Price$0.71301
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71301 | $0.71301 |
| 10 | $0.61555 | $6.15550 |
| 25 | $0.57707 | $14.42675 |
| 50 | $0.55314 | $27.65700 |
| 100 | $0.53006 | $53.00600 |
| 300 | $0.47791 | $143.37300 |
| 500 | $0.43089 | $215.44500 |
| 1000 | $0.40951 | $409.51000 |
