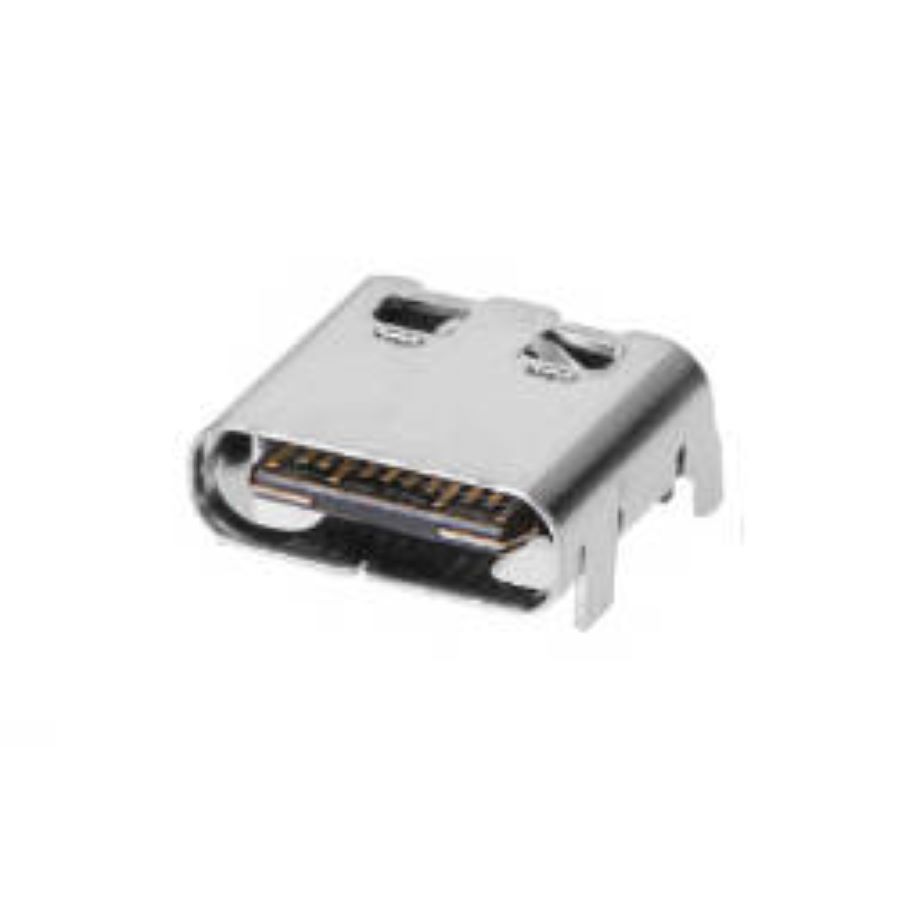

105450-0101
Manufacturer:
Molex
Mfr.Part #:
105450-0101
Datasheet:
Description:
USB Connectors SMD/SMT Female USB
| Parameter | Value |
|---|---|
| Length | 8.94 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 24 |
| Height | 3.44 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 500 µm |
| Number of Terminals | 24 |
| Current Rating | 5 A |
| Number of Circuits | 24 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 24 |
| USB Standard | USB |
| Connector Type | USB |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 21072
Distributors
pcbx
pcbxUnit Price$1.50211
Ext.Price$1.50211
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50211 | $1.50211 |
| 10 | $1.27641 | $12.76410 |
| 25 | $1.19519 | $29.87975 |
| 50 | $1.13877 | $56.93850 |
| 100 | $1.08234 | $108.23400 |
| 300 | $1.02482 | $307.44600 |
| 500 | $0.97034 | $485.17000 |
| 1000 | $0.84467 | $844.67000 |
