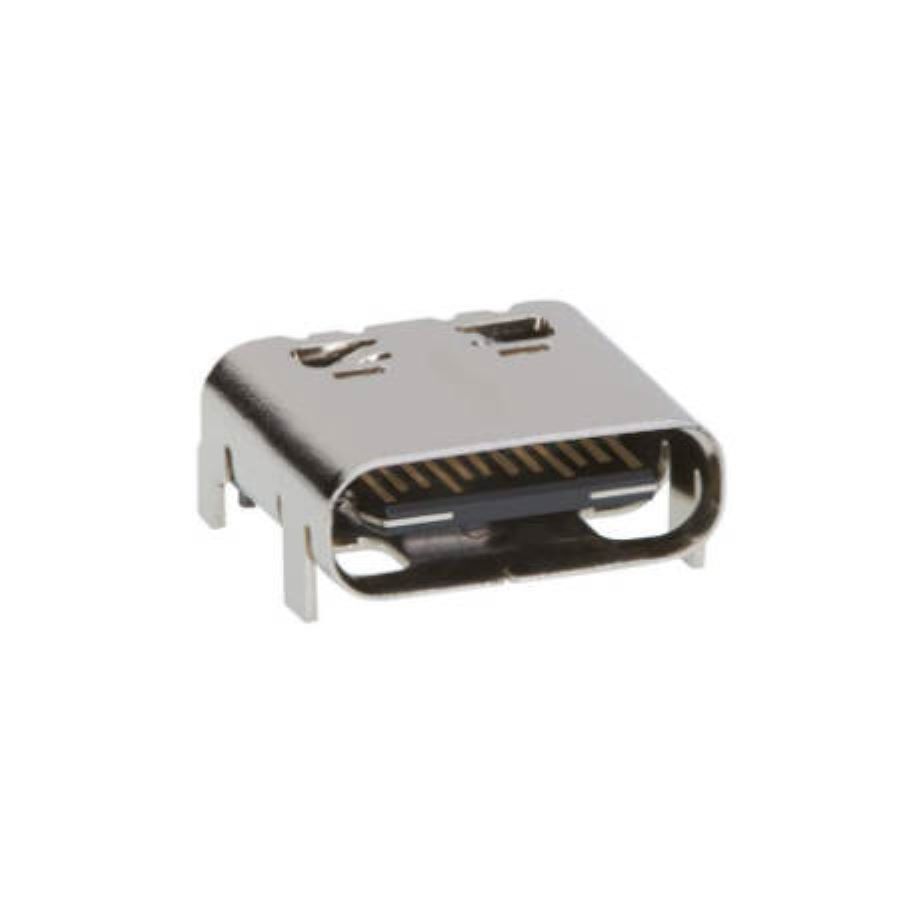

1054500101
Manufacturer:
Molex
Mfr.Part #:
1054500101
Datasheet:
Description:
USB Connectors SMD/SMT Female USB 3.1
| Parameter | Value |
|---|---|
| Length | 8.94 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 24 |
| Height | 3.44 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 500 µm |
| Number of Terminals | 24 |
| Current Rating | 5 A |
| Number of Circuits | 24 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 24 |
| USB Standard | USB 3.1 |
| Connector Type | USB |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | CN |
| Mounting Angle | Right Angle |
Stock: 692
Distributors
pcbx
pcbxUnit Price$0.85882
Ext.Price$0.85882
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85882 | $0.85882 |
| 10 | $0.75312 | $7.53120 |
| 25 | $0.69253 | $17.31325 |
| 50 | $0.63682 | $31.84100 |
| 100 | $0.58559 | $58.55900 |
| 300 | $0.56936 | $170.80800 |
| 500 | $0.55358 | $276.79000 |
| 1000 | $0.53835 | $538.35000 |
