10TPB47M
Manufacturer:
Panasonic
Mfr.Part #:
10TPB47M
Datasheet:
Description:

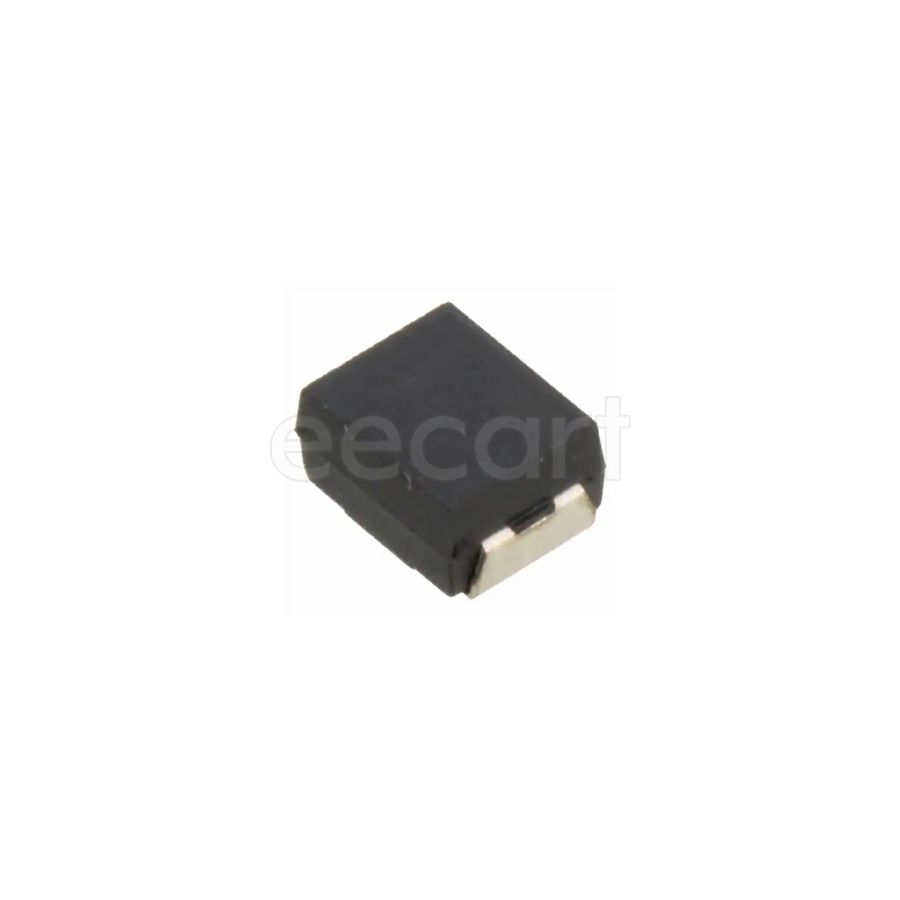

Tantalum Capacitors 1411(3528 Metric) SMD/SMT 47 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 70 mΩ |
| Ripple Current | 1.1 A |
| Height - Seated (Max) | 2.01 mm |
| Length | 3.5 mm |
| Width | 2.794 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Number of Pins | 2 |
| Leakage Current | 47 µA |
| Dissipation Factor | 8 % |
| Height | 1.9 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 10 V |
| REACH SVHC | No SVHC |
| Features | General Purpose |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532210080 |
| Type | Molded |
Stock: 2
Distributors
pcbx
pcbxUnit Price$0.54480
Ext.Price$0.54480
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54480 | $0.54480 |
| 10 | $0.44342 | $4.43420 |
| 25 | $0.40807 | $10.20175 |
| 50 | $0.37554 | $18.77700 |
| 100 | $0.34561 | $34.56100 |
| 300 | $0.32998 | $98.99400 |
| 500 | $0.31506 | $157.53000 |
| 1000 | $0.29973 | $299.73000 |
