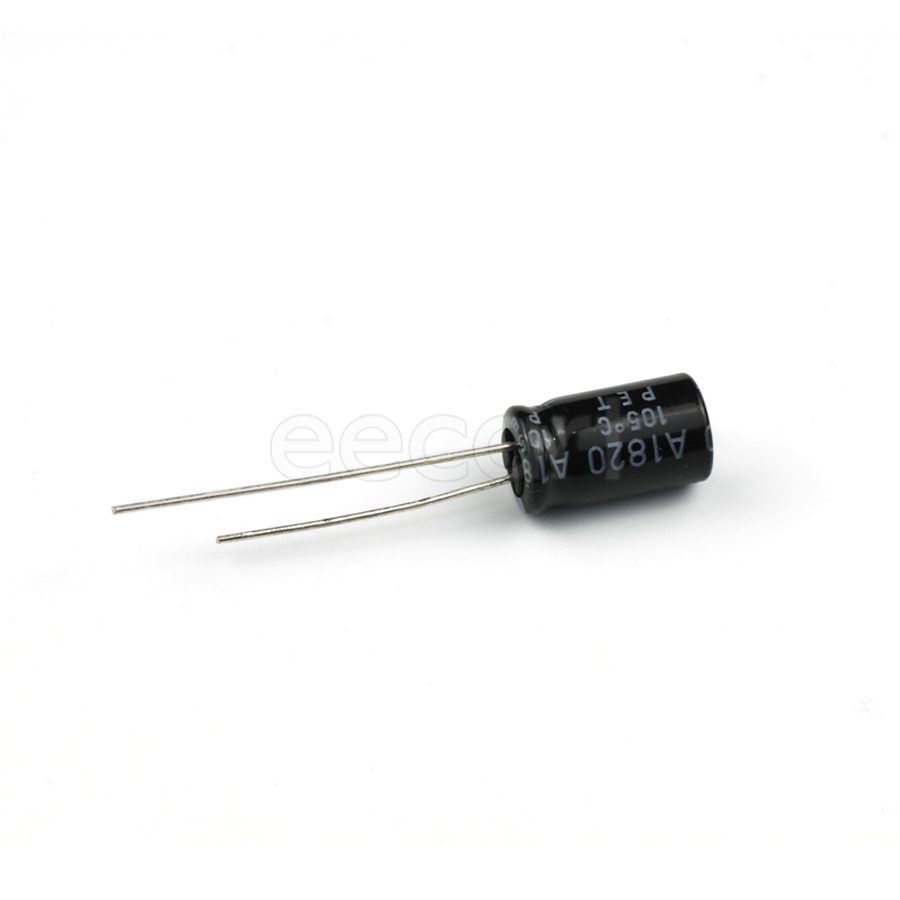

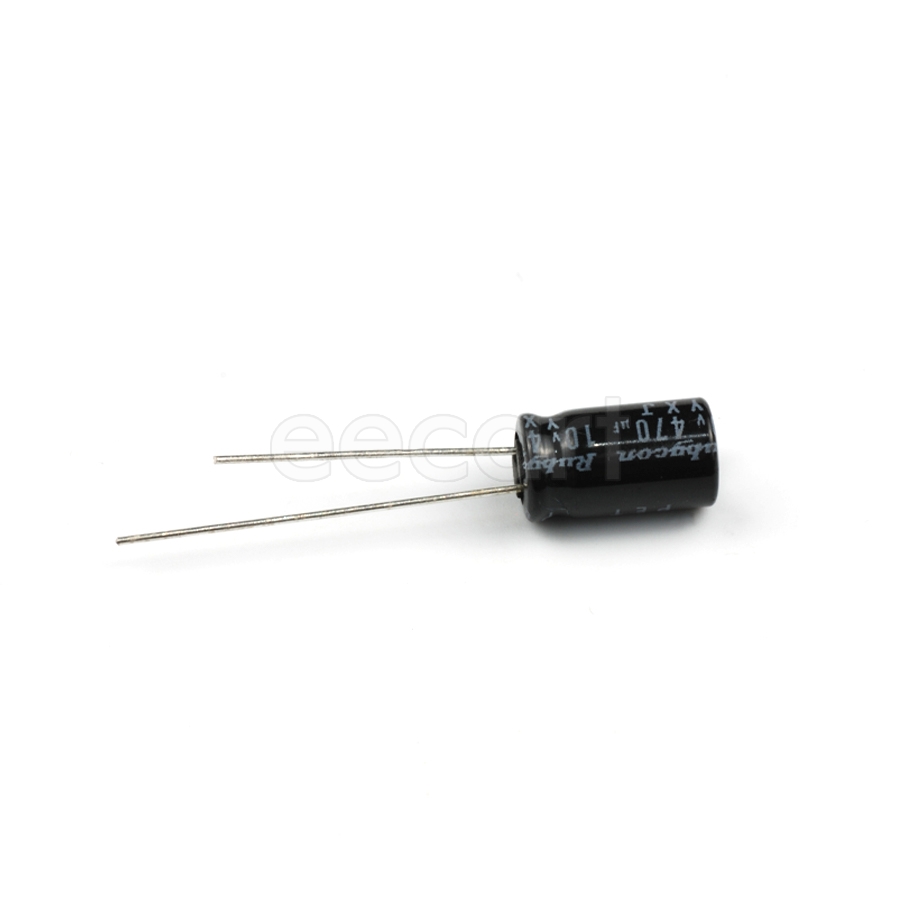

10YXJ470M6.3X11
Manufacturer:
Rubycon
Mfr.Part #:
10YXJ470M6.3X11
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,6.30mm×11.00mm Through Hole 470 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| Life (Hours) | 6000 Hours |
| Ripple Current | 400 mA |
| Height - Seated (Max) | 12.5 mm |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Height | 11 mm |
| Packaging | Bulk |
| Voltage Rating | 10 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.5 mm |
| Voltage | 10 V |
| REACH SVHC | No SVHC |
| Impedance | 220 mΩ |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
Stock: 11223
Distributors
pcbx
pcbxUnit Price$0.12000
Ext.Price$0.12000
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12000 | $0.12000 |
| 10 | $0.06000 | $0.60000 |
| 50 | $0.05422 | $2.71100 |
| 100 | $0.04899 | $4.89900 |
| 500 | $0.04136 | $20.68000 |
| 1000 | $0.03492 | $34.92000 |
| 3000 | $0.03330 | $99.90000 |
| 5000 | $0.03175 | $158.75000 |
| 10000 | $0.02999 | $299.90000 |
