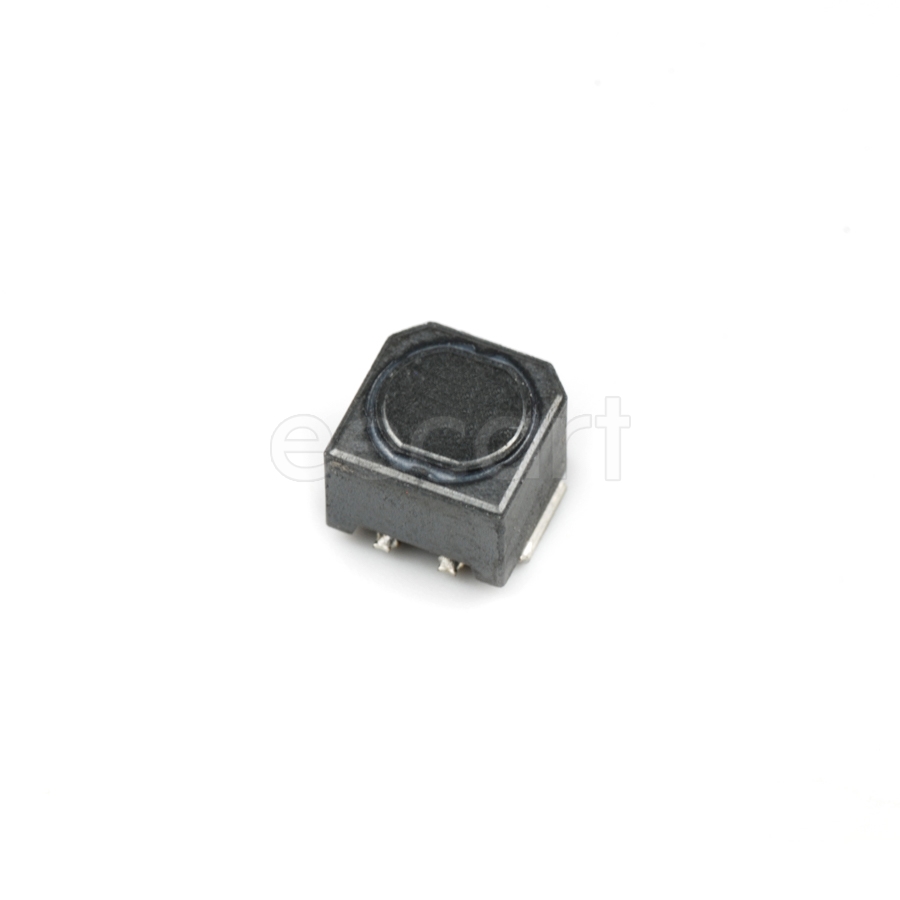

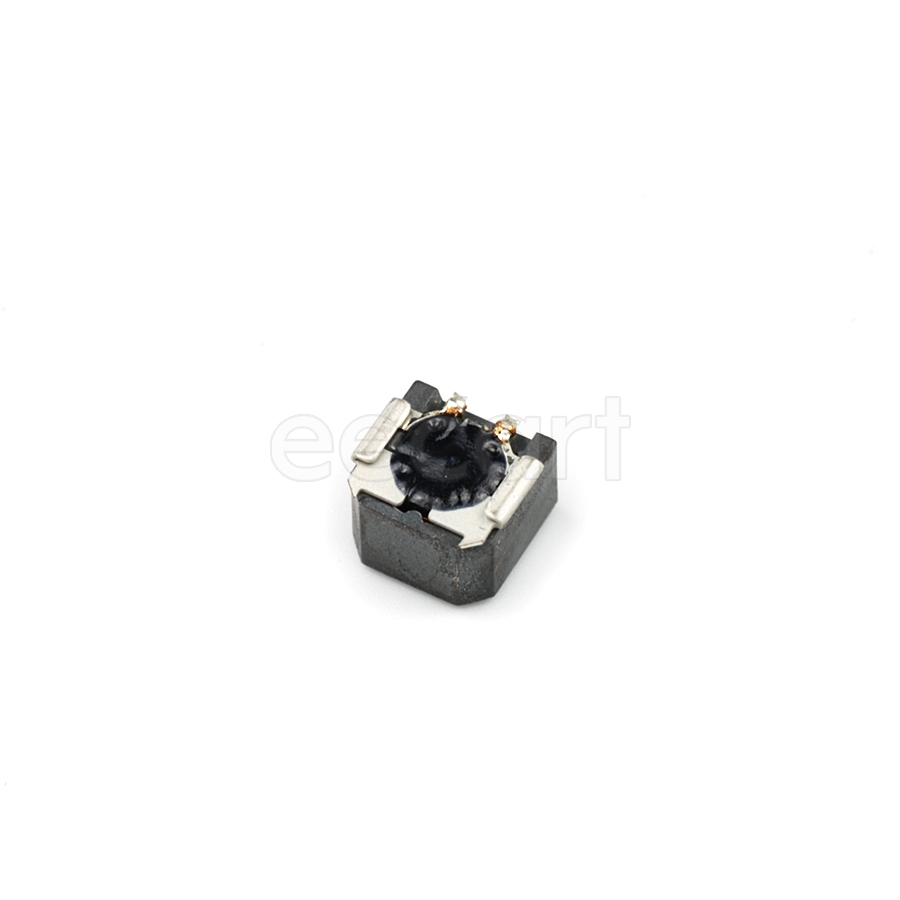

1264EY-100M=P3
Manufacturer:
Murata
Mfr.Part #:
1264EY-100M=P3
Datasheet:
Description:
Fixed Inductors 6.00mmL×6.00mmW×5.00mmH SMD/SMT 10 µH 20 % 3.1 A 54 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5.03 mm |
| Length | 6.2992 mm |
| Width | 6.2992 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 5 mm |
| Current Rating | 3.1 A |
| DC Resistance (DCR) | 54 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.1 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.1 A |
| Series Resistance | 54 mΩ |
| Saturation Current | 3.5 A |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
