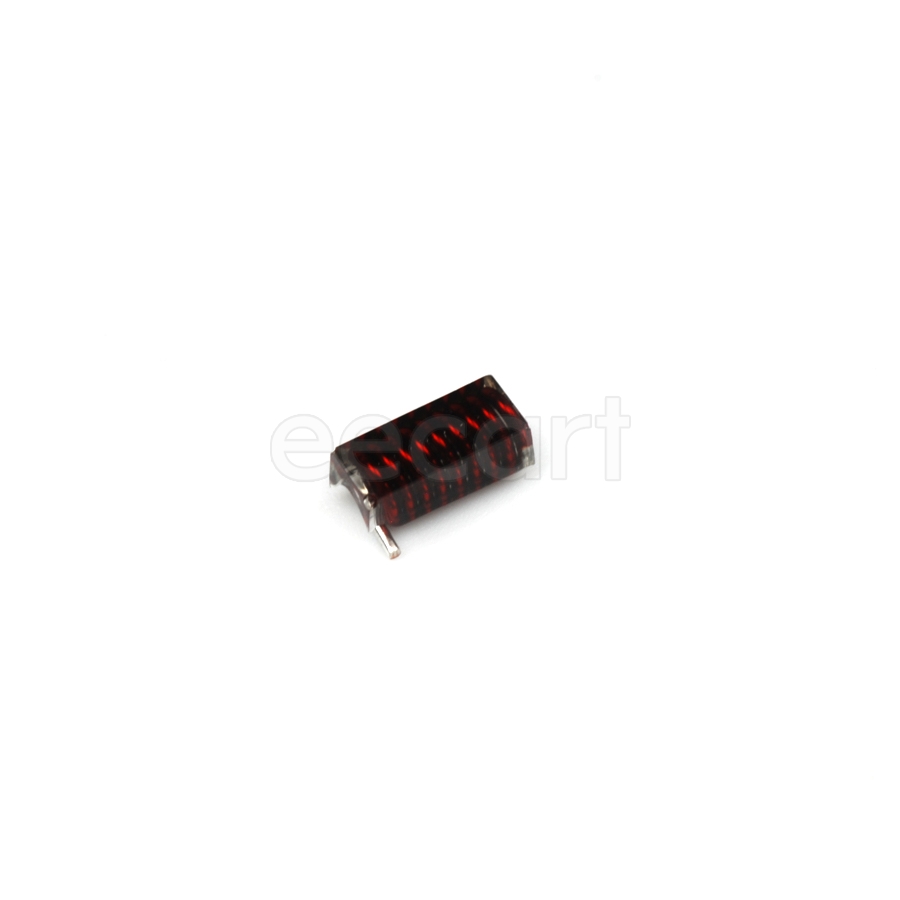

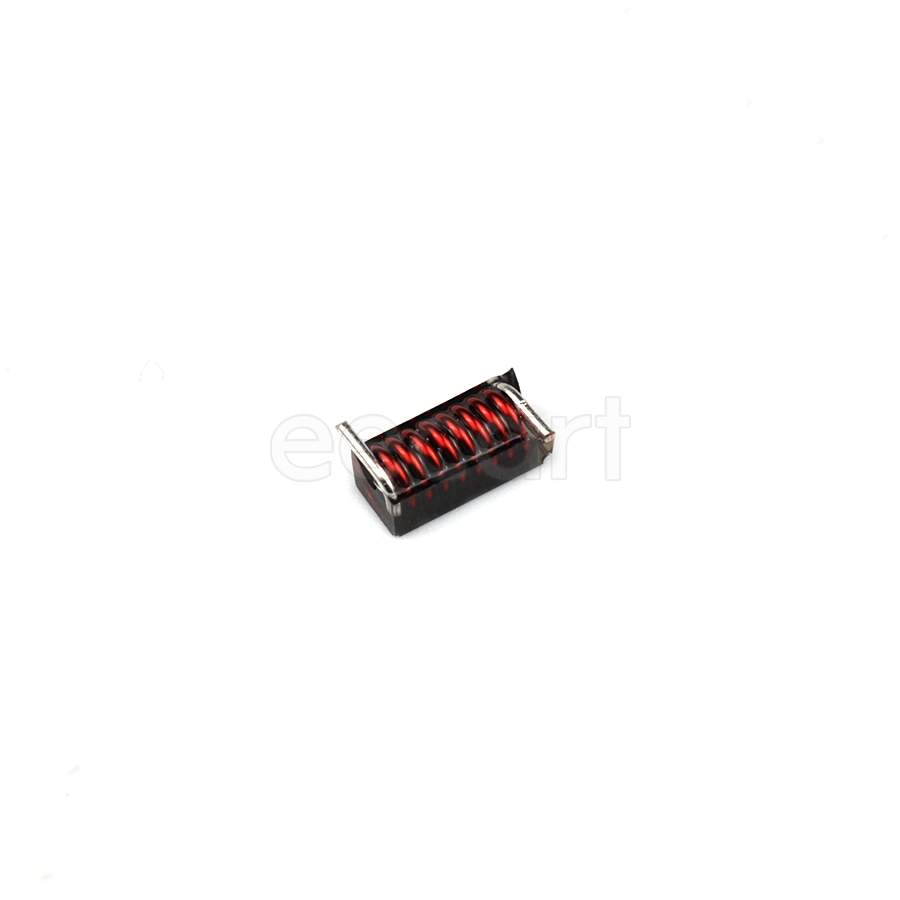

132-18SMGLB
Manufacturer:
Coilcraft
Mfr.Part #:
132-18SMGLB
Datasheet:
Description:
Fixed Inductors 10.55mmL×6.60mmW×5.97mmH SMD/SMT 422 nH 2 % 60 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 2 % |
| Height - Seated (Max) | 5.97 mm |
| Length | 10.55 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.97 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 540 MHz |
| Type | Wirewound |
| Q Factor | 95 |
| DC Resistance (DCR) | 60 mΩ |
| Test Frequency | 50 MHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Unshielded |
| Inductance | 422 nH |
| Core Material | Air |
| RMS Current (Irms) | 2.5 A |
| inductance tolerance | 2 % |
| Max DC Current | 2.5 A |
