132134
Manufacturer:
Amphenol
Mfr.Part #:
132134
Datasheet:
Description:

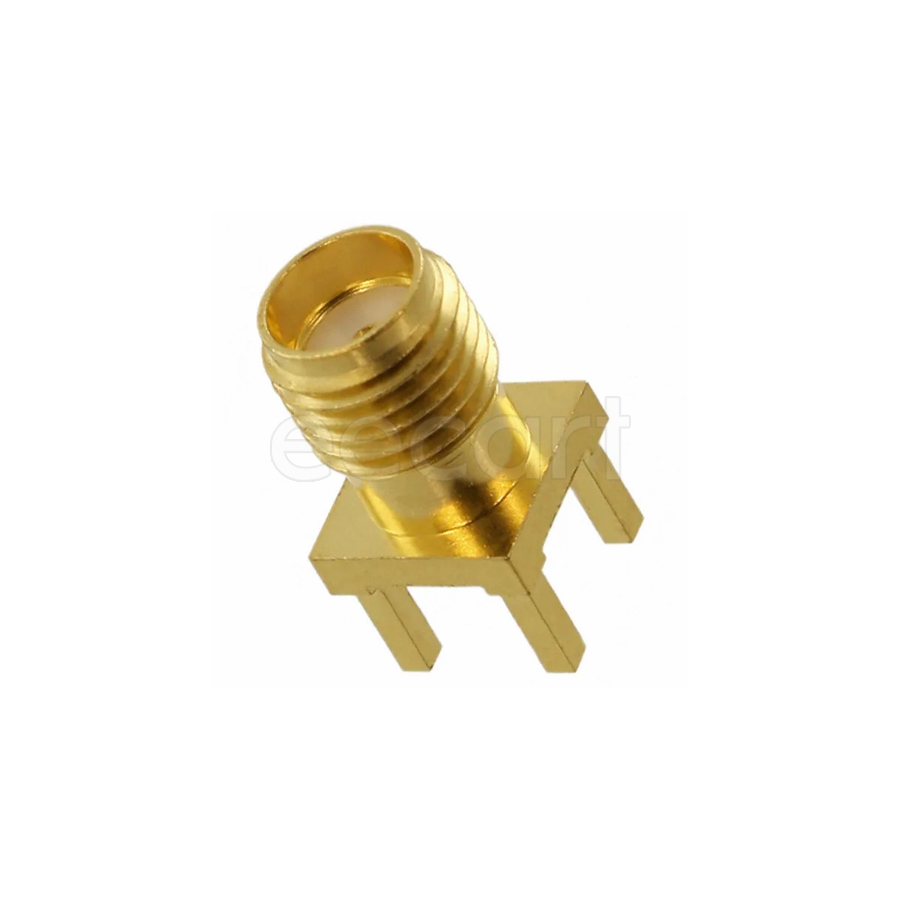

RF / Coaxial Connectors Through Hole SMA Coaxial, SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 9.93 mm |
| Packaging | Bulk |
| Depth | 7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 1 g |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper, Gold |
| Frequency | 18 GHz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | Coaxial, SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | Teflon |
| Connector Style | SMA |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 3678
Distributors
pcbx
pcbxUnit Price$3.39834
Ext.Price$3.39834
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.39834 | $3.39834 |
| 10 | $3.17264 | $31.72640 |
| 25 | $2.97259 | $74.31475 |
| 50 | $2.84093 | $142.04650 |
| 100 | $2.70329 | $270.32900 |
| 300 | $2.55563 | $766.68900 |
| 500 | $2.41603 | $1208.01500 |
| 1000 | $2.22794 | $2227.94000 |
