132203
Manufacturer:
Amphenol
Mfr.Part #:
132203
Datasheet:
Description:

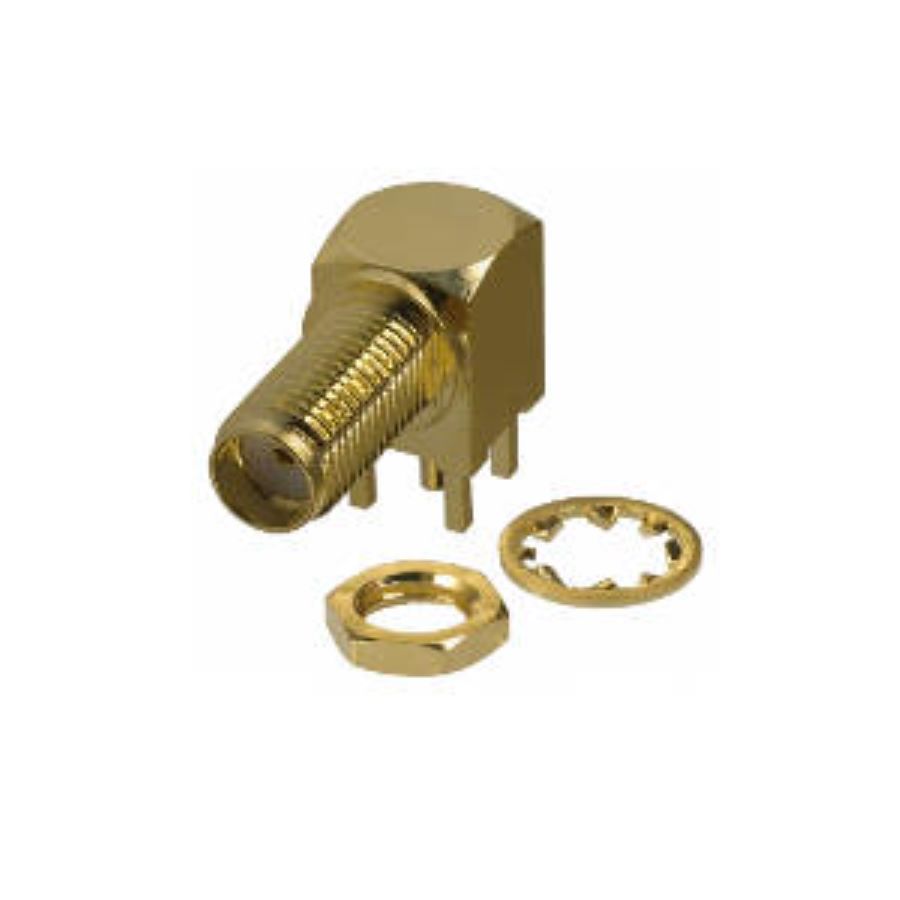

RF / Coaxial Connectors Through Hole Coaxial, SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 10.64 mm |
| Packaging | Bulk |
| Depth | 20.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 6.669991 g |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass, Copper, Gold |
| Frequency | 12.4 GHz |
| Orientation | Right Angle |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | Coaxial, SMA, Socket |
| Max Frequency | 12.4 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | BNC |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 4895
Distributors
pcbx
pcbxUnit Price$8.23380
Ext.Price$8.23380
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.23380 | $8.23380 |
| 10 | $7.06656 | $70.66560 |
| 25 | $6.54050 | $163.51250 |
| 50 | $6.17811 | $308.90550 |
| 100 | $5.83335 | $583.33500 |
| 300 | $5.54353 | $1663.05900 |
| 500 | $5.39754 | $2698.77000 |
| 1000 | $5.17679 | $5176.79000 |
