132289
Manufacturer:
Amphenol
Mfr.Part #:
132289
Datasheet:
Description:

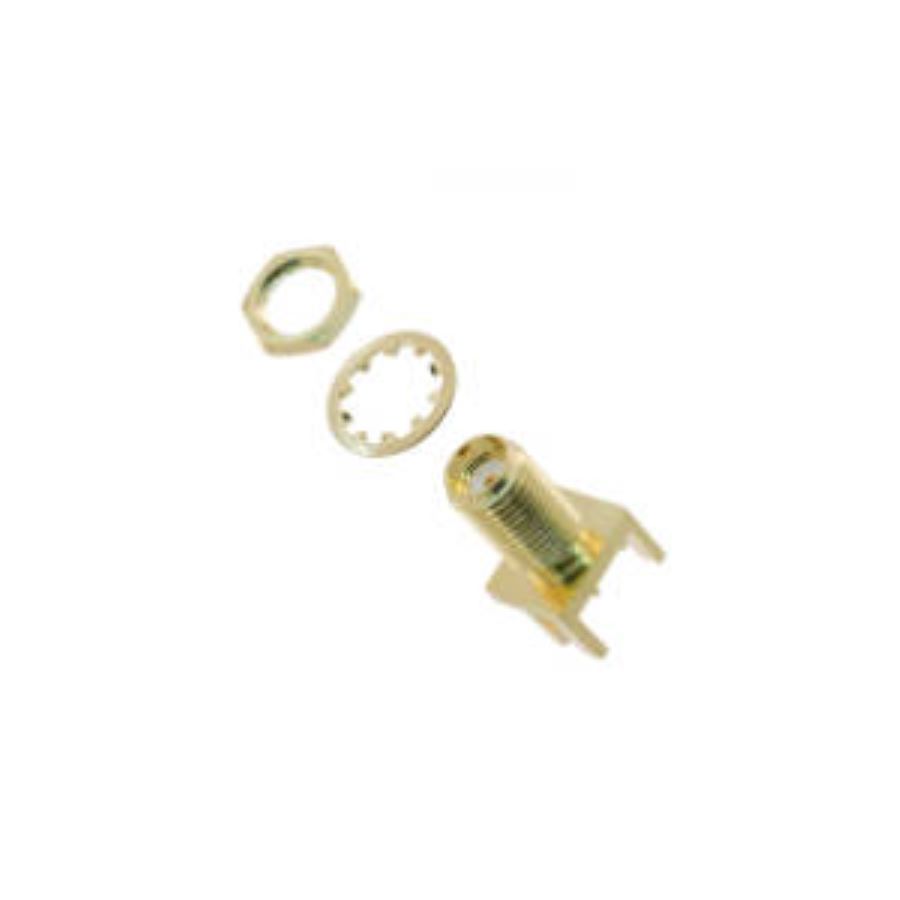

RF / Coaxial Connectors SMD/SMT Coaxial, Receptacle, SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 9.52 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 17.45 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 2.9 g |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper |
| Frequency | 18 Hz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Body Material | Brass |
| Connector Type | Coaxial, Receptacle, SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| Schedule B | 8536695050 |
| Board Thickness | 1.5748 mm |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 4660
Distributors
pcbx
pcbxUnit Price$5.15010
Ext.Price$5.15010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.15010 | $5.15010 |
| 10 | $4.83120 | $48.31200 |
| 25 | $4.28063 | $107.01575 |
| 50 | $4.11136 | $205.56800 |
| 100 | $4.01133 | $401.13300 |
| 300 | $3.97697 | $1193.09100 |
| 500 | $3.94293 | $1971.46500 |
| 1000 | $3.76083 | $3760.83000 |
