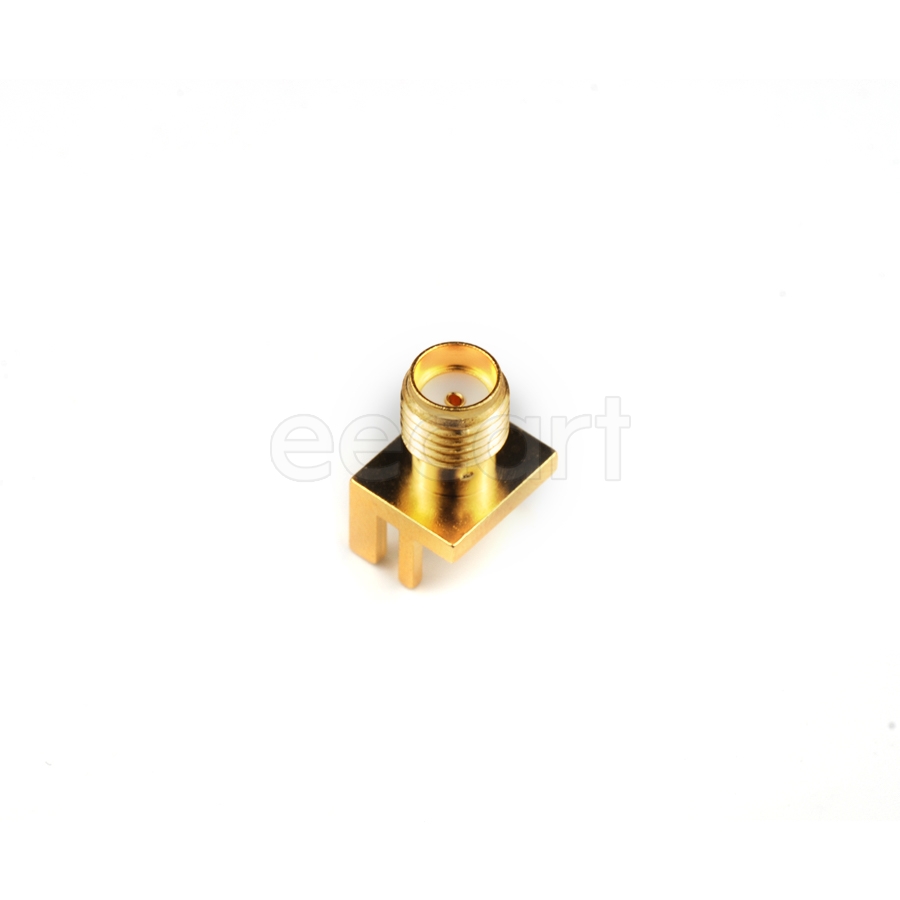

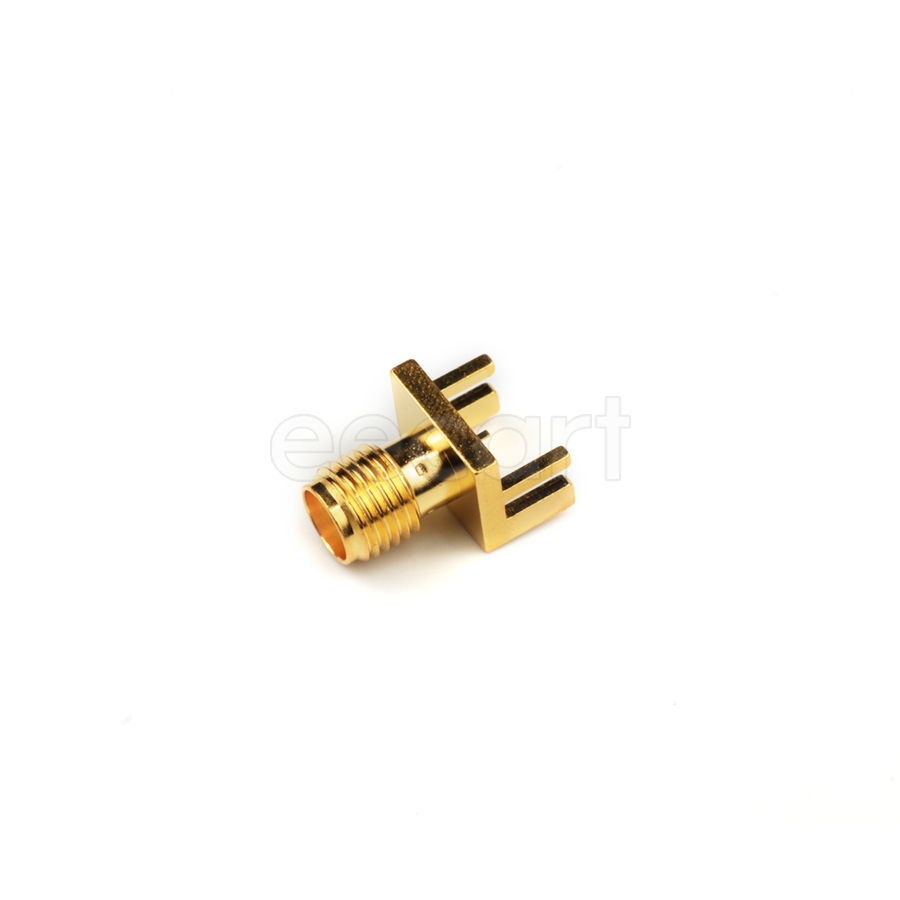

132357-11
Manufacturer:
Amphenol
Mfr.Part #:
132357-11
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT Receptacle, SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 4.285 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper, Gold |
| Frequency | 18 GHz |
| Orientation | Straight |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | Receptacle, SMA, Socket |
| Max Frequency | 18 GHz |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| Board Thickness | 1.5748 mm |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 1443
Distributors
pcbx
pcbxUnit Price$5.98753
Ext.Price$5.98753
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.98753 | $5.98753 |
| 10 | $5.08691 | $50.86910 |
| 25 | $4.76806 | $119.20150 |
| 50 | $4.54054 | $227.02700 |
| 100 | $4.32380 | $432.38000 |
| 300 | $4.13601 | $1240.80300 |
| 500 | $3.67585 | $1837.92500 |
