15-91-2060
Manufacturer:
Molex
Mfr.Part #:
15-91-2060
Datasheet:
Description:

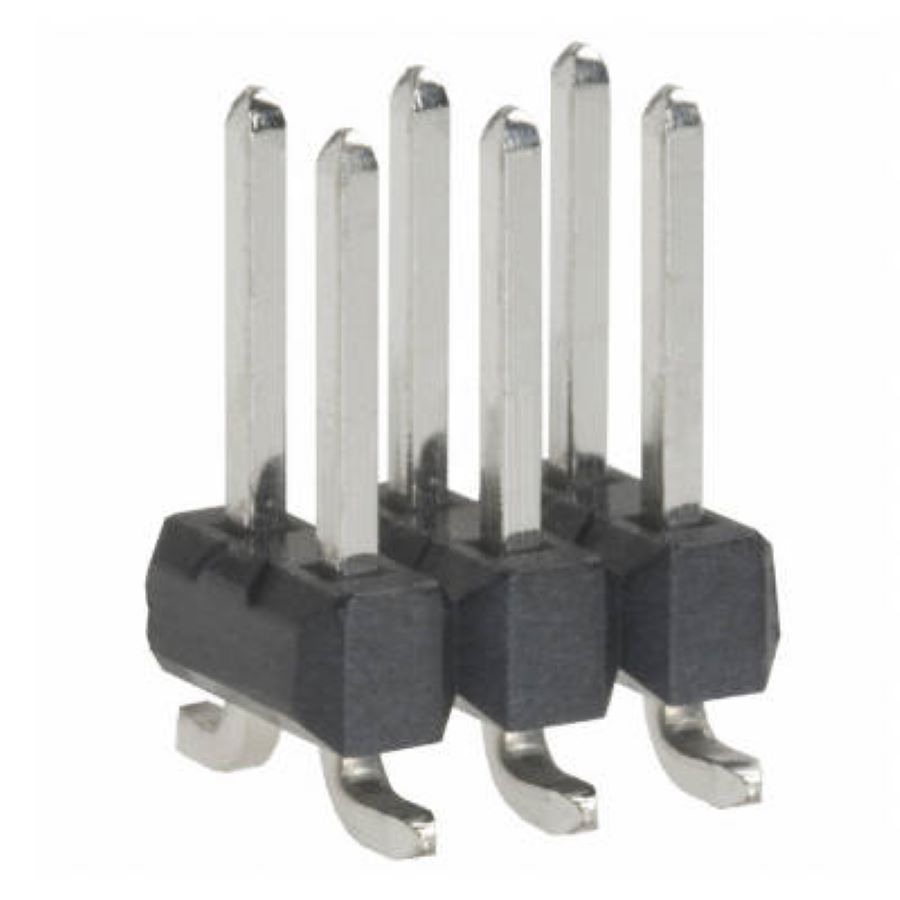

Headers and Wire Housings SMD/SMT Header, Breakaway Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Material | Bronze |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header, Breakaway |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 5529
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.33770 | $3.37700 |
| 25 | $0.31965 | $7.99125 |
| 50 | $0.30257 | $15.12850 |
| 100 | $0.28640 | $28.64000 |
| 300 | $0.26849 | $80.54700 |
| 500 | $0.25170 | $125.85000 |
| 1000 | $0.23596 | $235.96000 |
| 3000 | $0.22396 | $671.88000 |
| 5000 | $0.21257 | $1062.85000 |
| 10000 | $0.20176 | $2017.60000 |
