1604470000
Manufacturer:
Weidmuller
Mfr.Part #:
1604470000
Datasheet:
Description:

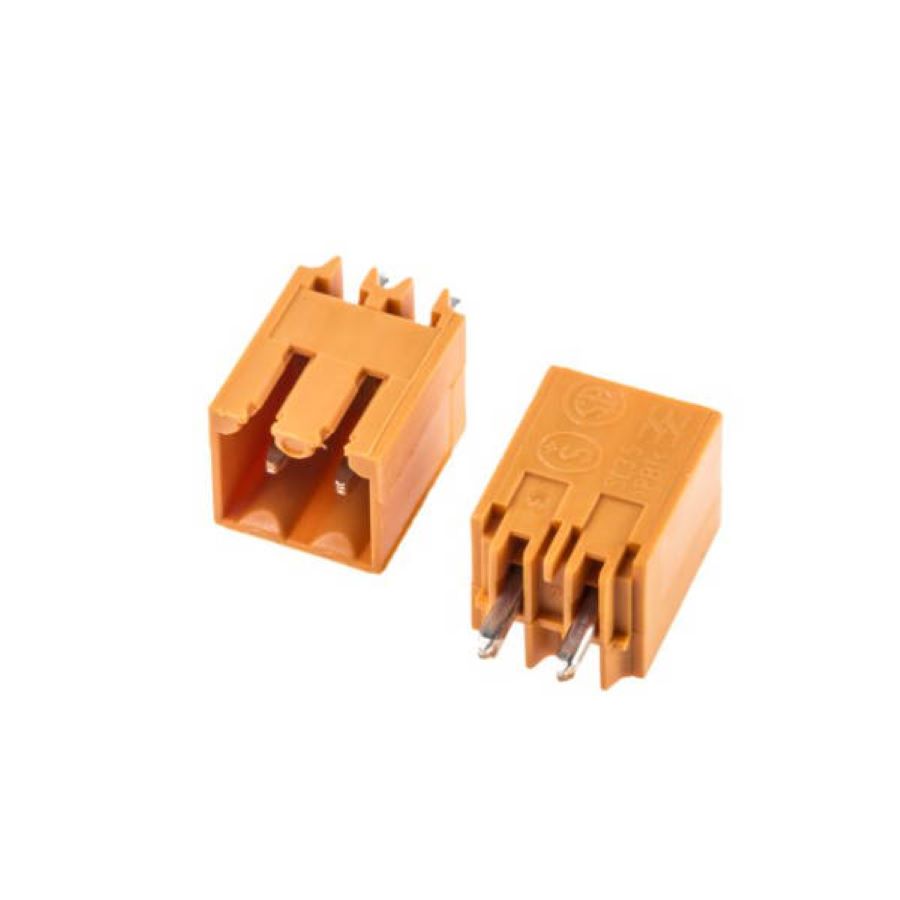

Terminal Blocks Through Hole 2 3.5 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 8.4 mm |
| Width | 7.5 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Material | Steel |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 MΩ |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | CuSn |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UR |
| Orientation | Vertical |
| Color | Orange |
| Gender | Male |
| Number of Contacts | 2 |
| Hole Diameter | 1.3 mm |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Housing Color | Orange |
| Connection Method | Plug |
| Voltage Rating (IEC) | 320 V |
| Current Rating (IEC) | 17 A |
Stock: 1565
Distributors
pcbx
pcbxUnit Price$0.87611
Ext.Price$0.87611
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87611 | $0.87611 |
| 10 | $0.63756 | $6.37560 |
| 25 | $0.55511 | $13.87775 |
| 50 | $0.50131 | $25.06550 |
| 100 | $0.45532 | $45.53200 |
| 300 | $0.41429 | $124.28700 |
| 500 | $0.37695 | $188.47500 |
| 1000 | $0.35350 | $353.50000 |
| 3000 | $0.33445 | $1003.35000 |
| 5000 | $0.31643 | $1582.15000 |
