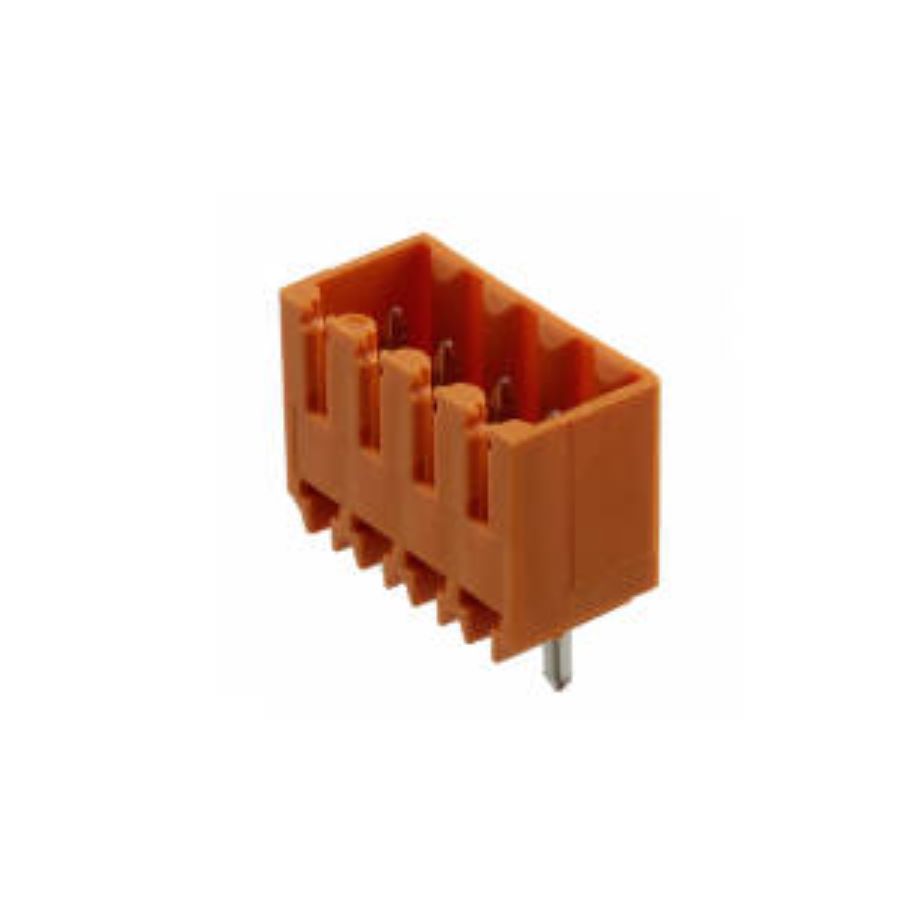

1604490000
Manufacturer:
Weidmuller
Mfr.Part #:
1604490000
Datasheet:
Description:
Terminal Blocks Through Hole 4 3.5 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Length | 15.4 mm |
| Width | 7.5 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 MΩ |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | CuSn |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UR |
| Orientation | Vertical |
| Color | Orange |
| Number of Contacts | 4 |
| Hole Diameter | 1.3 mm |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Housing Color | Orange |
| Connection Method | Plug |
| Voltage Rating (IEC) | 320 V |
| Current Rating (IEC) | 17 A |
Stock: 855
Distributors
pcbx
pcbxUnit Price$1.62664
Ext.Price$1.62664
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.62664 | $1.62664 |
| 10 | $1.16376 | $11.63760 |
| 25 | $1.01538 | $25.38450 |
| 50 | $0.92076 | $46.03800 |
| 100 | $0.84156 | $84.15600 |
| 300 | $0.77261 | $231.78300 |
| 500 | $0.70930 | $354.65000 |
| 1000 | $0.67046 | $670.46000 |
| 3000 | $0.63936 | $1918.08000 |
| 5000 | $0.60970 | $3048.50000 |
