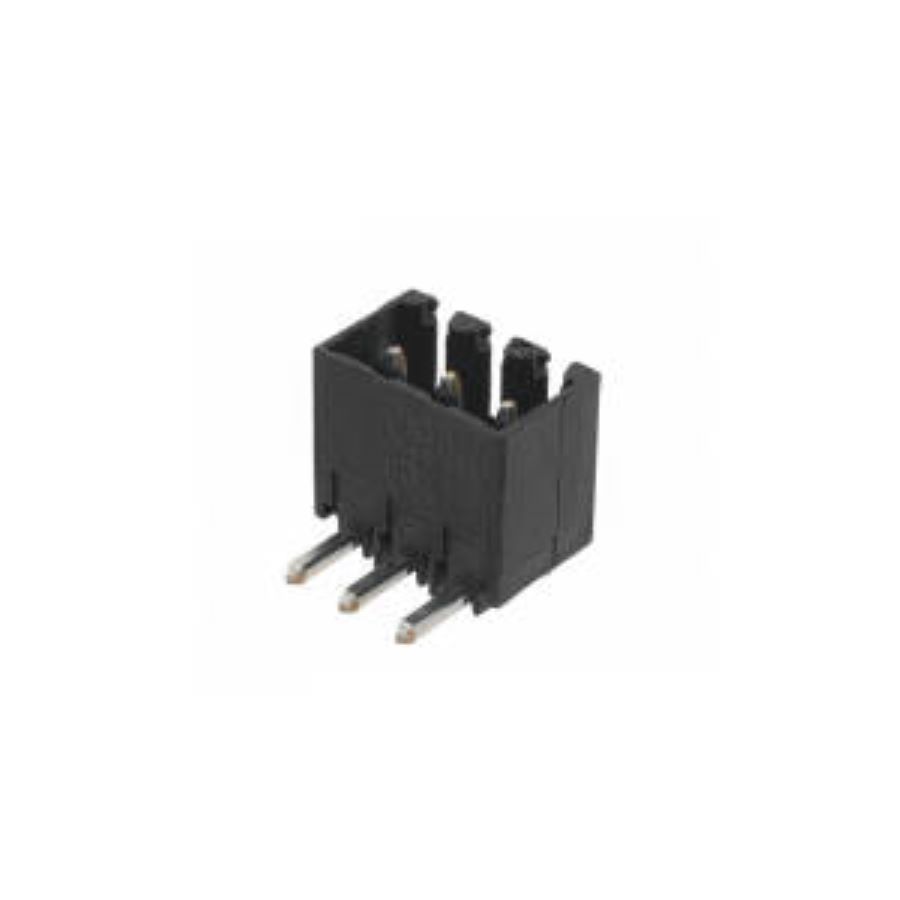

1615420000
Manufacturer:
Weidmuller
Mfr.Part #:
1615420000
Datasheet:
Description:
Terminal Blocks Through Hole 3 3.5 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Width | 11.1 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -25 °C |
| Height | 7.5 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 MΩ |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.5 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Orientation | 90° Angle (Right) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Housing Color | Black |
| Connection Method | Plug |
| Current Rating (IEC) | 12 A |
| Voltage Rating (IEC) | 125 V |
Stock: 50
Distributors
pcbx
pcbxUnit Price$1.28240
Ext.Price$1.28240
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28240 | $1.28240 |
| 10 | $0.92166 | $9.21660 |
| 25 | $0.80315 | $20.07875 |
| 50 | $0.72705 | $36.35250 |
| 100 | $0.66280 | $66.28000 |
| 300 | $0.60635 | $181.90500 |
| 500 | $0.55471 | $277.35500 |
| 1000 | $0.52274 | $522.74000 |
| 3000 | $0.49701 | $1491.03000 |
| 5000 | $0.47254 | $2362.70000 |
