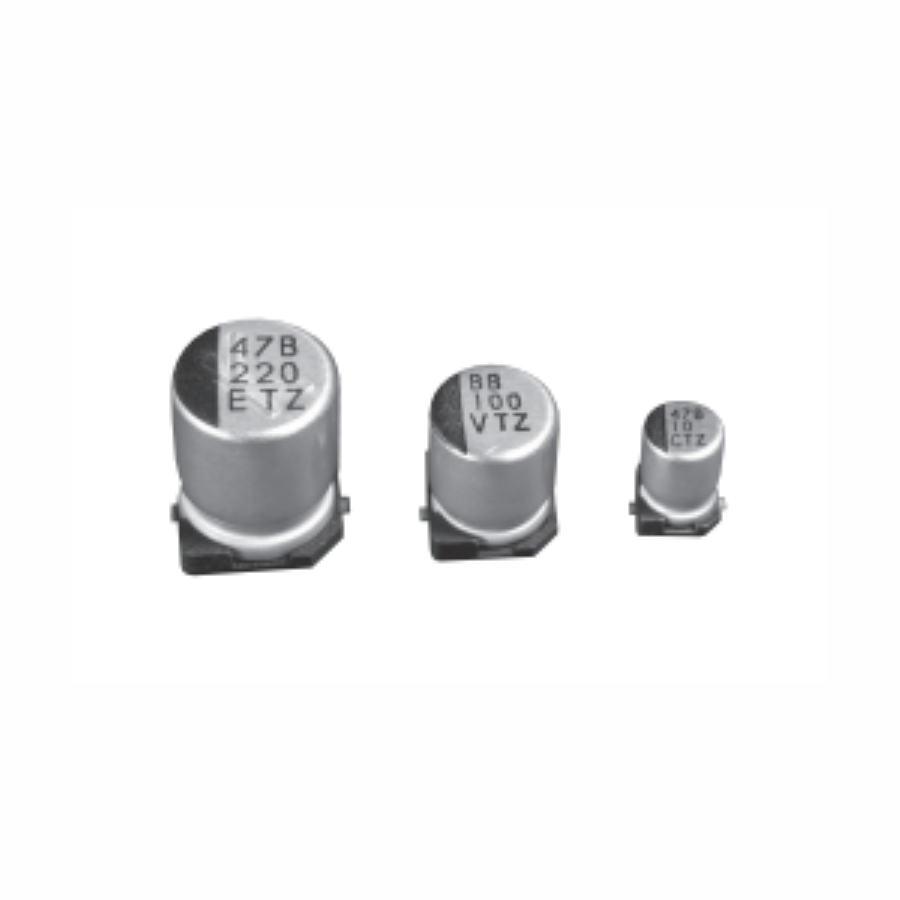

16TZV47M5X6.1
Manufacturer:
Rubycon
Mfr.Part #:
16TZV47M5X6.1
Datasheet:
Description:
Aluminum Electrolytic Capacitors SMD,5.00mm×6.10mm SMD/SMT 47 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 170 mA |
| Height - Seated (Max) | 6.1 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 6.1 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Ratings | AEC-Q200 |
| Impedance | 700 mΩ |
| Ripple Current (AC) | 170 mA |
| Ripple Current @ Low Frequency | 54.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz |
Stock: 1112
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.20775 | $2.07750 |
| 50 | $0.17428 | $8.71400 |
| 100 | $0.14620 | $14.62000 |
| 500 | $0.11883 | $59.41500 |
| 1000 | $0.10943 | $109.43000 |
| 3000 | $0.10005 | $300.15000 |
| 5000 | $0.09147 | $457.35000 |
| 10000 | $0.08720 | $872.00000 |
