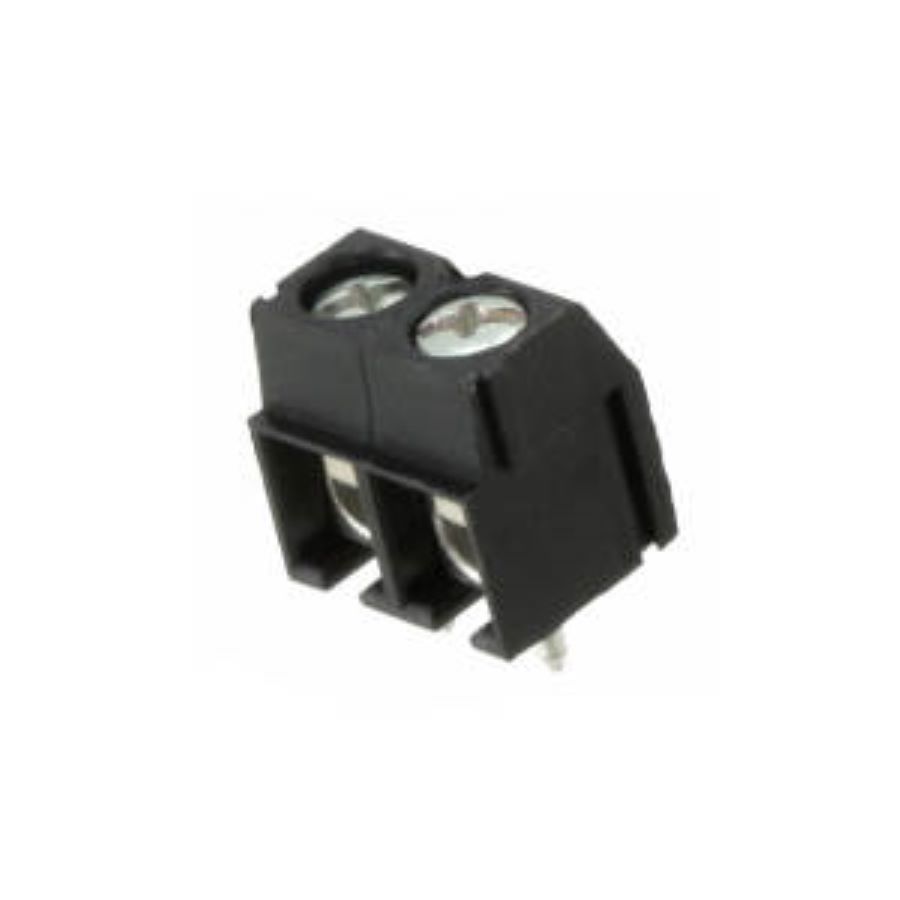

1760510000
Manufacturer:
Weidmuller
Mfr.Part #:
1760510000
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 15 A 300 V 26 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 11.2 mm |
| Width | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -50 °C |
| Height | 10 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5.08 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 16 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Max Supply Voltage | 300 V |
| Color | Black |
| Number of Contacts | 2 |
| Connector Type | PCB, Terminal Block |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Black |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 14 AWG |
Stock: 22381
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.37980 | $3.79800 |
| 25 | $0.33086 | $8.27150 |
| 50 | $0.29807 | $14.90350 |
| 100 | $0.26961 | $26.96100 |
| 300 | $0.24356 | $73.06800 |
| 500 | $0.22002 | $110.01000 |
| 1000 | $0.20492 | $204.92000 |
| 3000 | $0.19246 | $577.38000 |
| 5000 | $0.18075 | $903.75000 |
