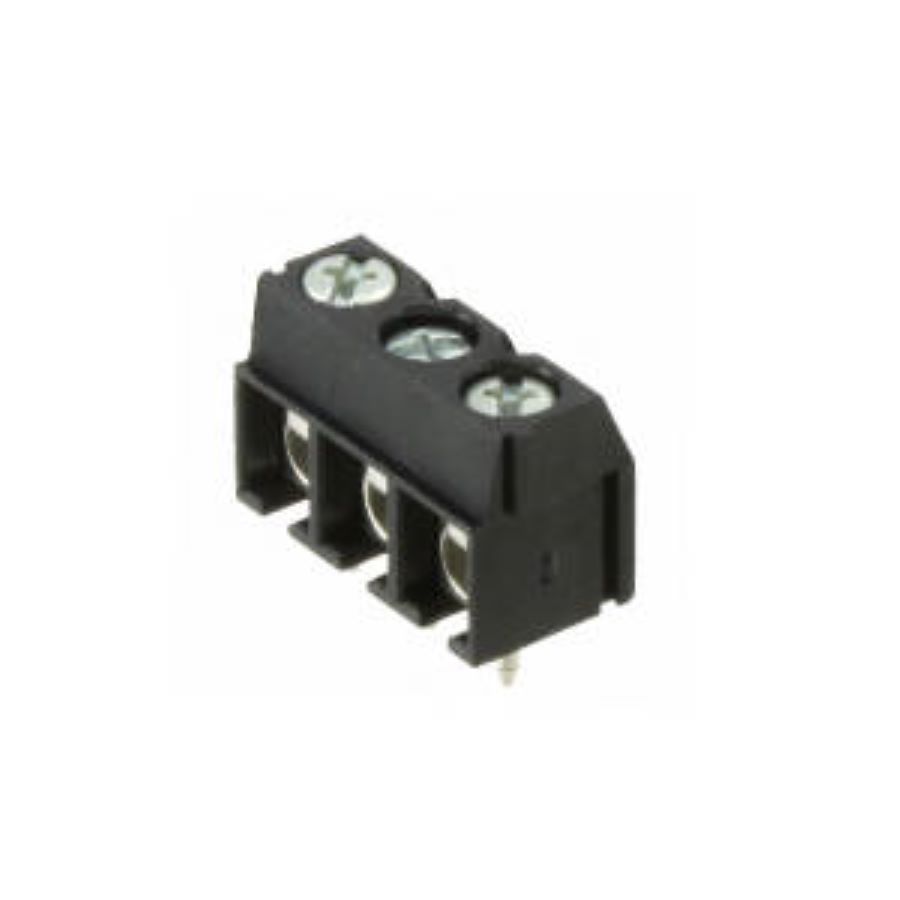

1760520000
Manufacturer:
Weidmuller
Mfr.Part #:
1760520000
Datasheet:
Description:
Terminal Blocks Through Hole 3 5.08 mm 15 A 300 V 26 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Width | 8 mm |
| Termination | Solder |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -50 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5.08 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 16 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Straight |
| Max Supply Voltage | 300 V |
| Color | Black |
| Number of Contacts | 3 |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Black |
| Connection Method | Screw |
| Wire Gauge Range | 26 AWG to 14 AWG |
Stock: 9062
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.46166 | $4.61660 |
| 25 | $0.40182 | $10.04550 |
| 50 | $0.32658 | $16.32900 |
| 100 | $0.30625 | $30.62500 |
| 300 | $0.28718 | $86.15400 |
| 500 | $0.26930 | $134.65000 |
| 1000 | $0.25135 | $251.35000 |
