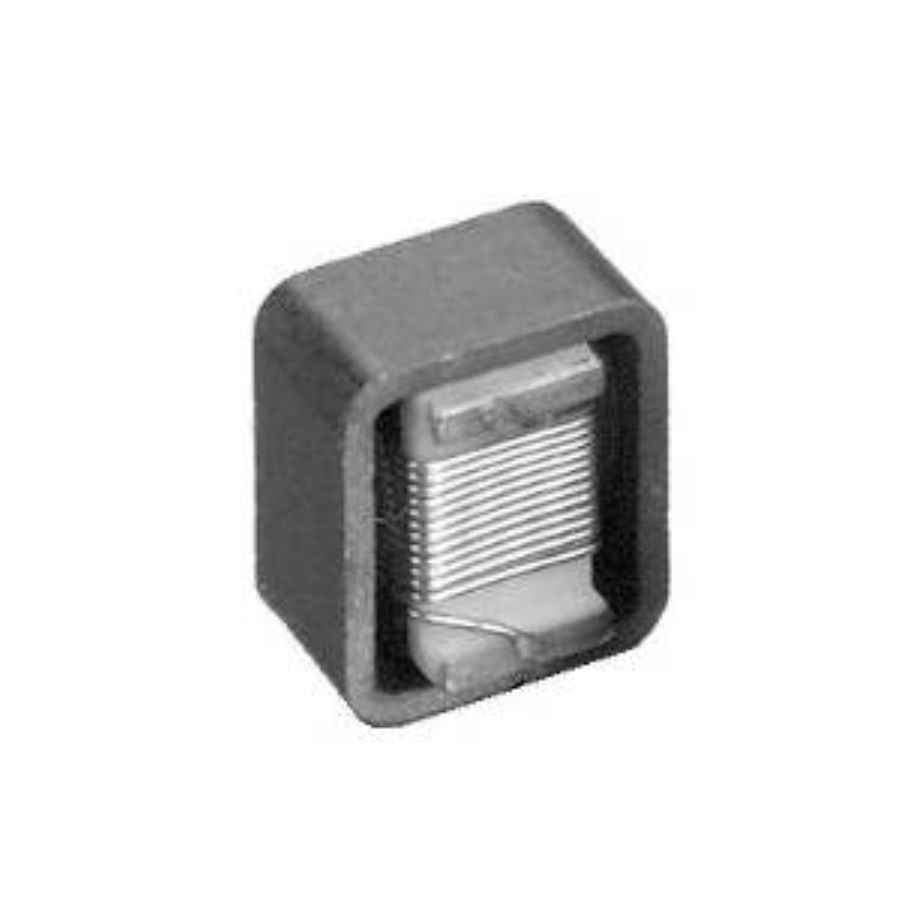

1812PS-103KLC
Manufacturer:
Coilcraft
Mfr.Part #:
1812PS-103KLC
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 10 µH 10 % 1.7 A 170 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Length | 5.87 mm |
| Width | 4.98 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4525 |
| Height | 3.81 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 120 MHz |
| Type | Wirewound |
| Q Factor | 40 |
| DC Resistance (DCR) | 170 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.7 A |
| inductance tolerance | 10 % |
| Max DC Current | 1.7 A |
| Saturation Current | 900 mA |
| Current Rating | 1.7 A |
