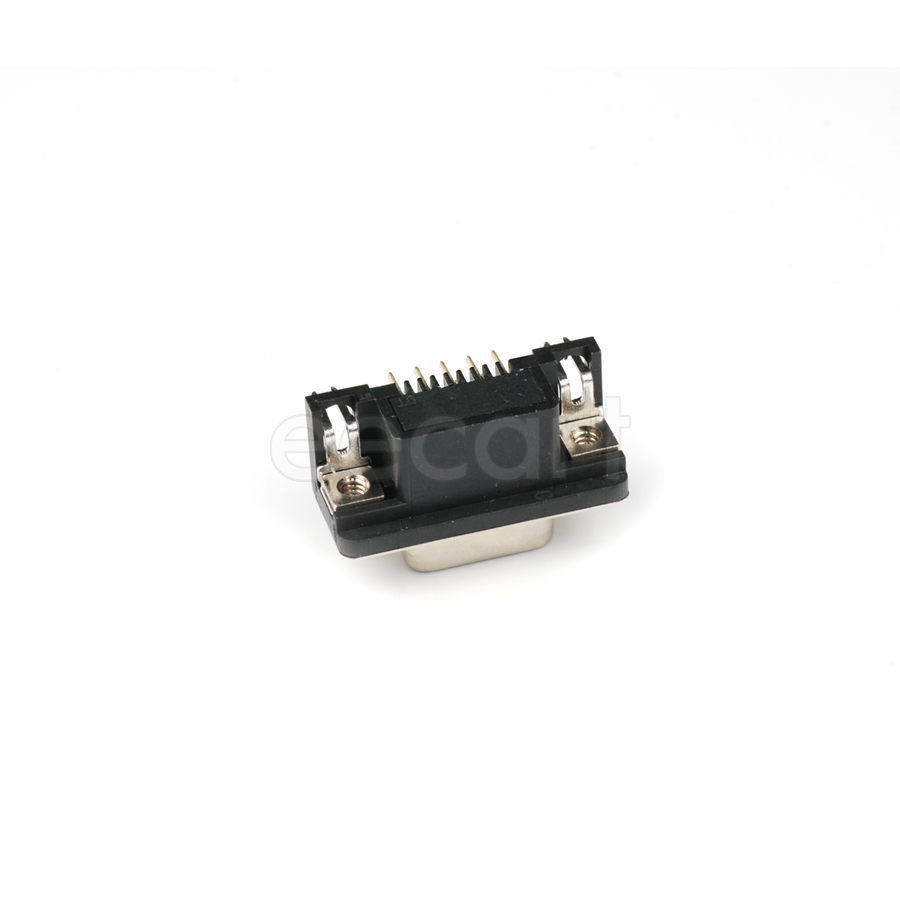

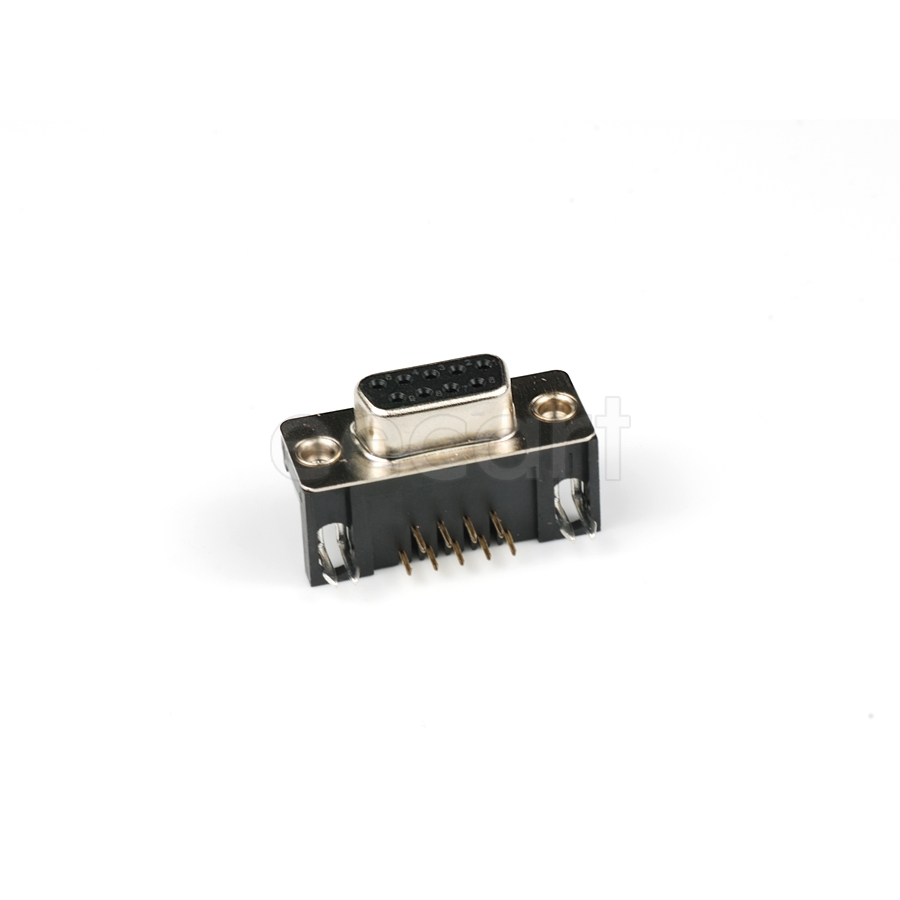

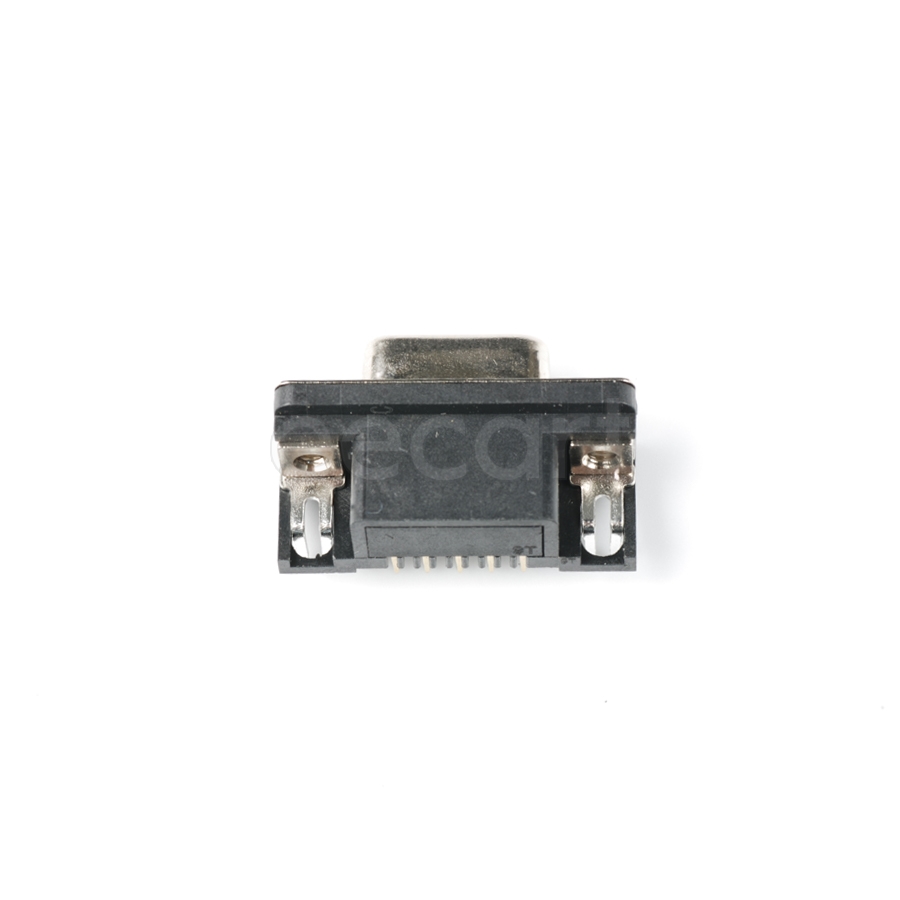

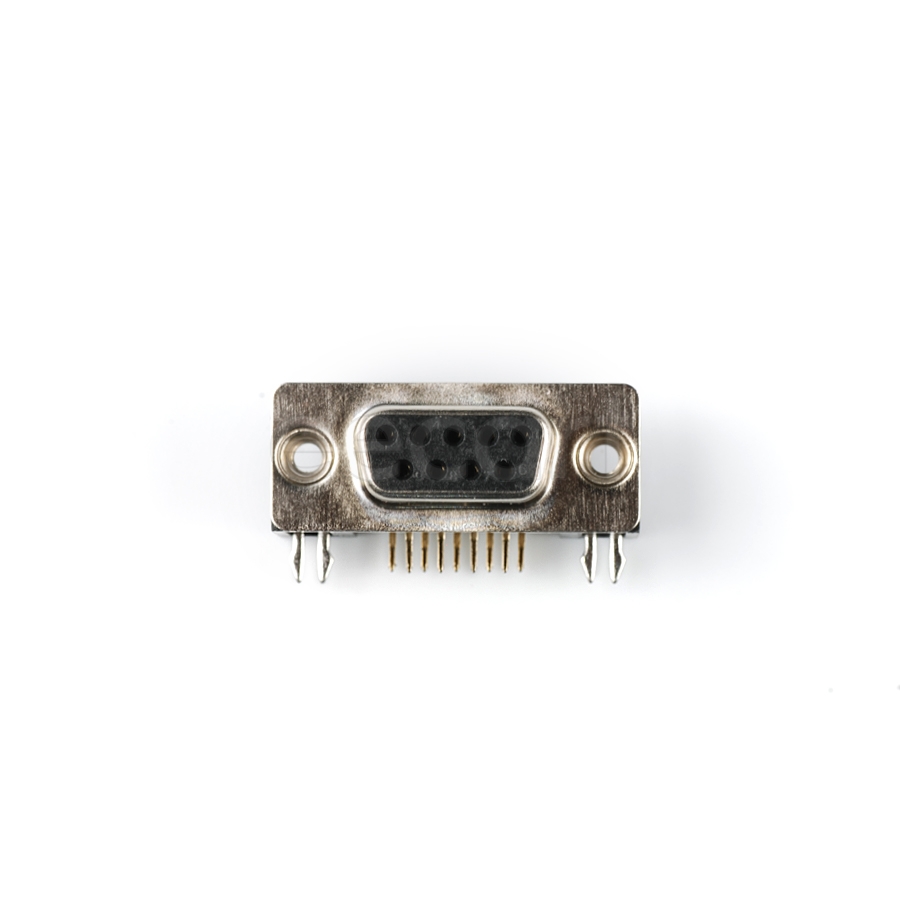

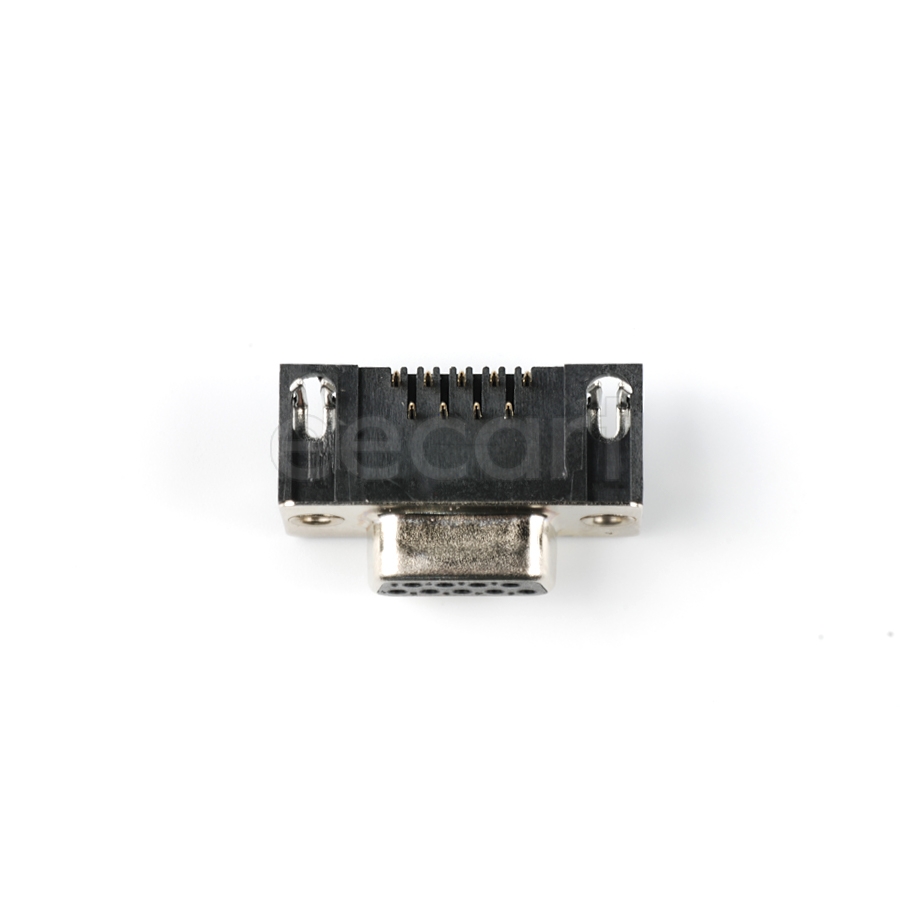

182-009-213R561
Manufacturer:
Norcomp
Mfr.Part #:
182-009-213R561
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:9 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.8 mm |
| Width | 24.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.5 mm |
| Material | Metal |
| Packaging | Tray |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle, Female Sockets |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Color | Black |
| Gender | Female |
| Number of Contacts | 9 |
| Body Material | Steel |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Nylon |
| Housing Color | Black |
| Shell Material | Steel |
Stock: 814
Distributors
pcbx
pcbxUnit Price$1.65856
Ext.Price$1.65856
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.65856 | $1.65856 |
| 10 | $1.42090 | $14.20900 |
| 25 | $1.33283 | $33.32075 |
| 50 | $1.28325 | $64.16250 |
| 100 | $1.19453 | $119.45300 |
| 300 | $1.11195 | $333.58500 |
| 500 | $1.03507 | $517.53500 |
| 1000 | $0.96350 | $963.50000 |
