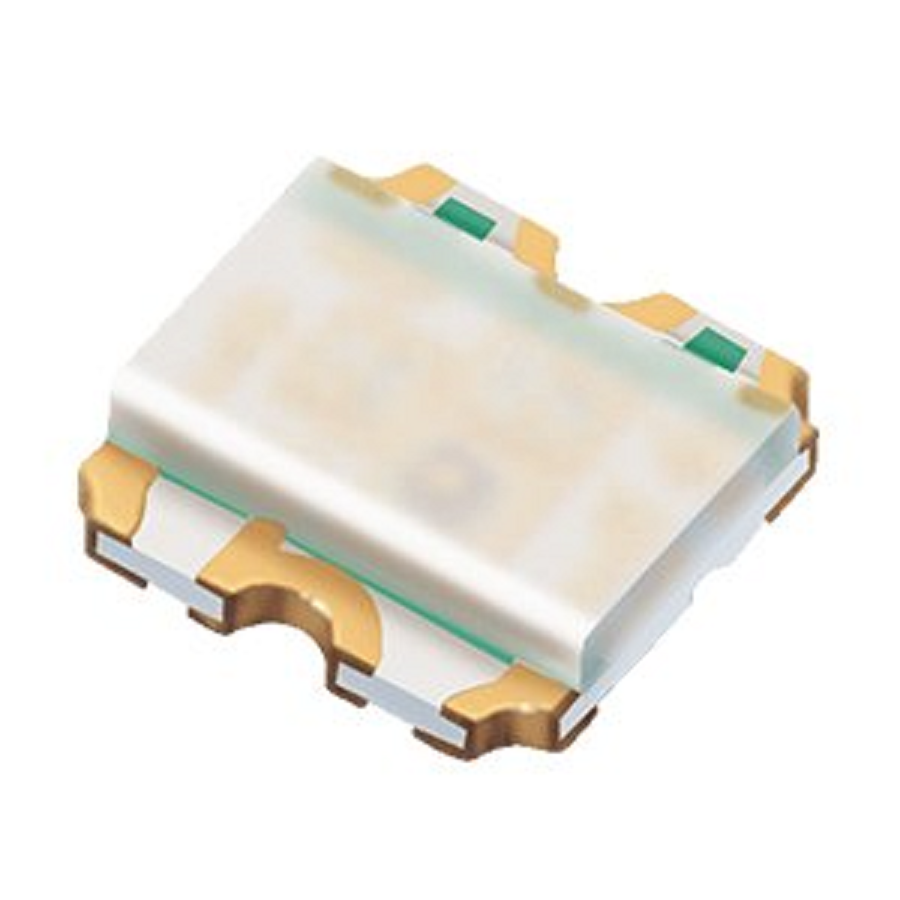

19-337/R6GHBHC-A01/2T
Manufacturer:
Everlight
Mfr.Part #:
19-337/R6GHBHC-A01/2T
Datasheet:
Description:
LEDs 0606(1616 Metric) SMD/SMT Brilliant Red, Brilliant Green, Blue 624 nm, 525 nm, 470 nm 25 mA 1.7 V to 2.4 V, 2.7 V to 3.8 V, 2.7 V to 3.8 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 350 µm |
| Packaging | Reel |
| Depth | 1.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 3 |
| Forward Current | 25 mA |
| Forward Voltage | 1.7 V to 2.4 V, 2.7 V to 3.8 V, 2.7 V to 3.8 V |
| Color | Blue, Green, Red |
| Illumination Color | Brilliant Red, Brilliant Green, Blue |
| Lens Style | Colorless, Diffused, Rectangular |
| Luminous Intensity | 50 mcd |
| Number of LEDs | 3 |
| Viewing Angle | 120 ° |
| Wavelength | 632 nm, 518 nm, 468 nm |
| Lens Transparency | Water Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 624 nm, 525 nm, 470 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 9944
Distributors
pcbx
pcbxUnit Price$0.12730
Ext.Price$0.12730
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12730 | $0.12730 |
| 10 | $0.06365 | $0.63650 |
| 50 | $0.05677 | $2.83850 |
| 100 | $0.05063 | $5.06300 |
| 500 | $0.04635 | $23.17500 |
| 1000 | $0.04243 | $42.43000 |
| 3000 | $0.03884 | $116.52000 |
| 5000 | $0.03555 | $177.75000 |
| 10000 | $0.03254 | $325.40000 |
