1C10X7R104K050B
Manufacturer:
Vishay
Mfr.Part #:
1C10X7R104K050B
Datasheet:
Description:

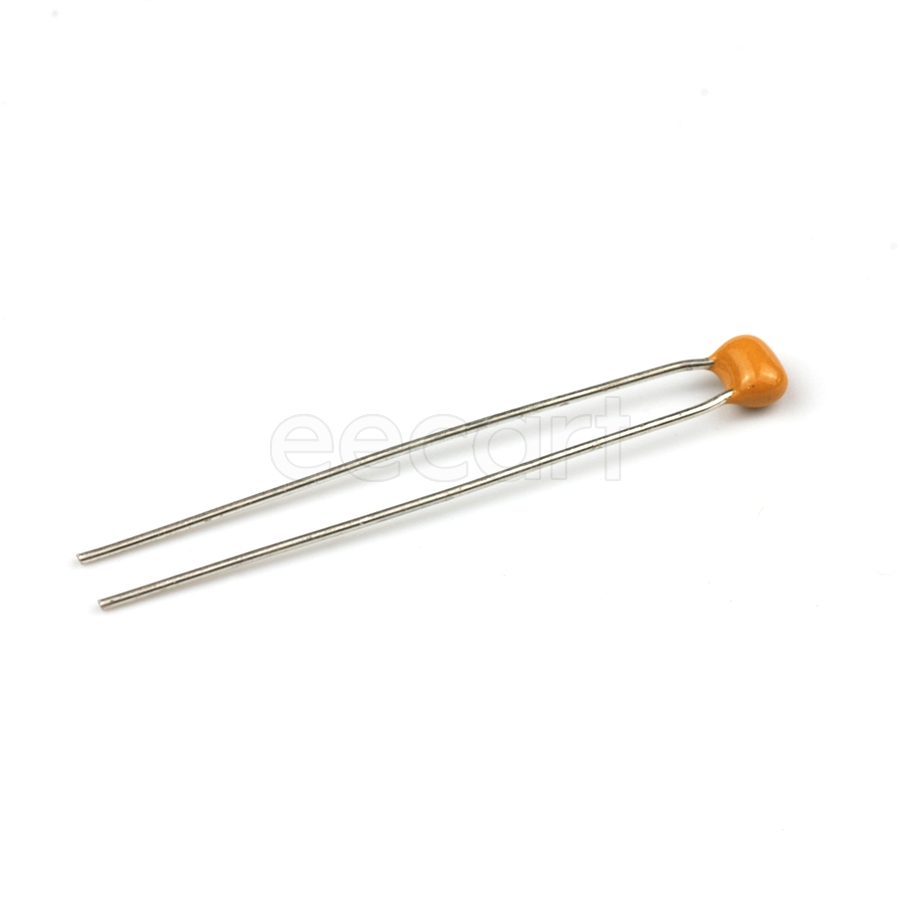

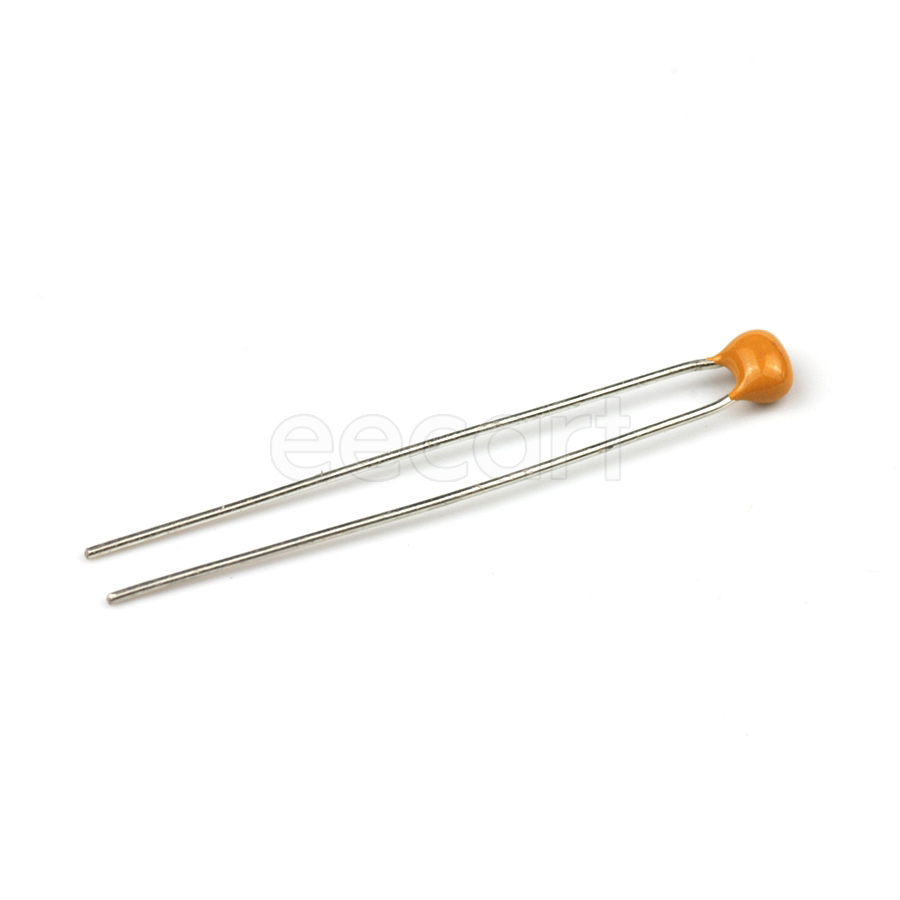

Ceramic Capacitors 6.35mmL×5.08mmW×3.18mmH Through Hole 100 nF 10 % 50 V
| Parameter | Value |
|---|---|
| Capacitance | 100 nF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 10 % |
| Height - Seated (Max) | 6.35 mm |
| Length | 5.08 mm |
| Width | 5.08 mm |
| Termination | Radial |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | X7R |
| Number of Pins | 2 |
| Height | 3.175 mm |
| Packaging | Bulk |
| Voltage Rating | 50 V |
| Depth | 3.175 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 508 µm |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Schedule B | 8532240060 |
Stock: 8421
Distributors
pcbx
pcbxUnit Price$0.23169
Ext.Price$0.23169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23169 | $0.23169 |
| 10 | $0.09660 | $0.96600 |
| 50 | $0.09033 | $4.51650 |
| 100 | $0.08446 | $8.44600 |
| 500 | $0.07883 | $39.41500 |
| 1000 | $0.07198 | $71.98000 |
| 3000 | $0.06843 | $205.29000 |
| 5000 | $0.06506 | $325.30000 |
| 10000 | $0.06446 | $644.60000 |
