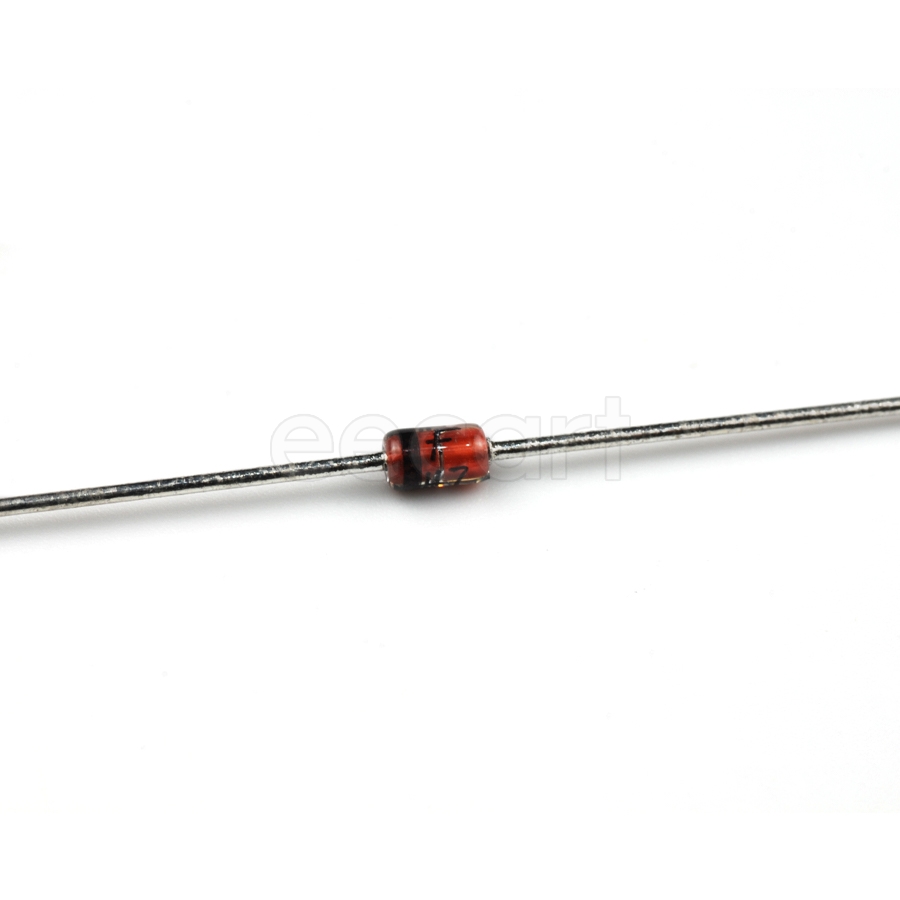

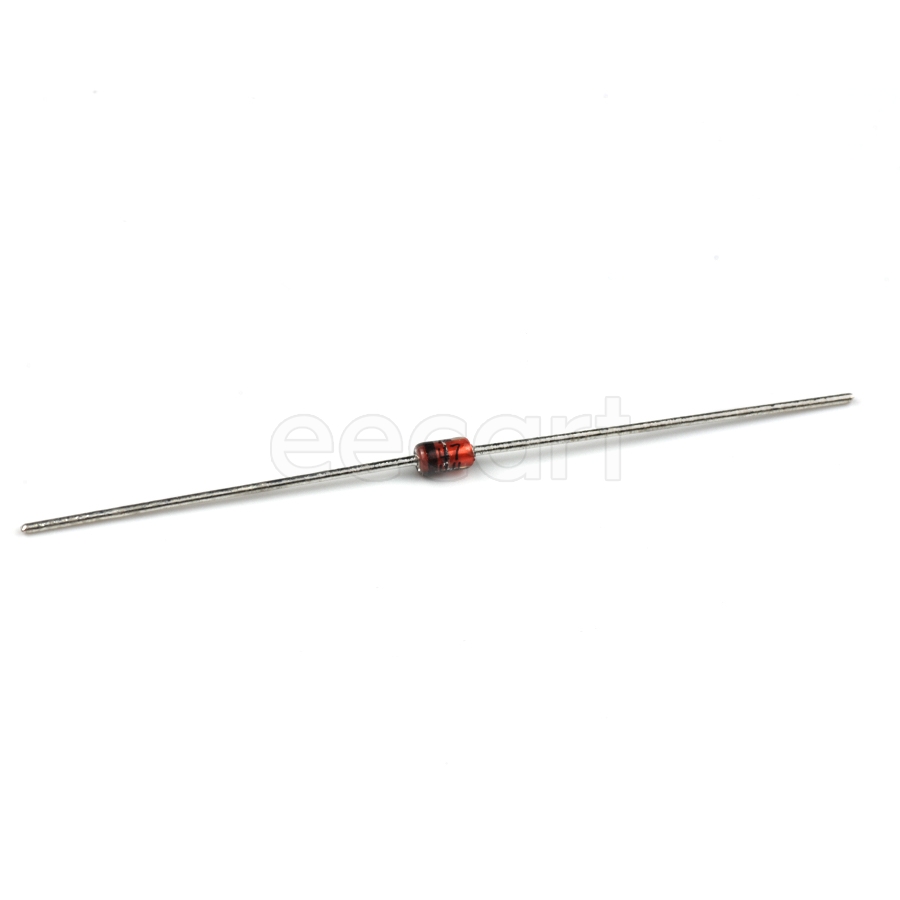

1N4744A
Manufacturer:
On Semiconductor
Mfr.Part #:
1N4744A
Datasheet:
Description:
Zener Diodes DO-41-2 Through Hole Single Zener Voltage:15 V 5 % 1 W
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Tolerance | 5 % |
| Length | 5.21 mm |
| Width | 2.72 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Power Rating | 1 W |
| Height | 2.72 mm |
| Material | Glass |
| Radiation Hardening | No |
| Voltage | 15 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Impedance | 14 Ω |
| Current | 2 A |
| Working Voltage | 15 V |
| Output Current | 1.5 A |
| Max Power Dissipation | 1 W |
| Power Dissipation | 1 W |
| Breakdown Voltage | 15 V |
| Max Reverse Leakage Current | 5 µA |
| Zener Voltage | 15 V |
| Element Configuration | Single |
| ESD Protection | No |
| Test Current | 17 mA |
| Reverse Current | 5 µA |
| Voltage Tolerance | 5 % |
| Zener Current | 17 mA |
| Schedule B | 8541100050 |
| RoHS | Compliant |
| Packaging | Bulk |
Stock: 14150
Distributors
pcbx
pcbxUnit Price$0.06885
Ext.Price$0.06885
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06885 | $0.06885 |
| 10 | $0.04880 | $0.48800 |
| 50 | $0.03907 | $1.95350 |
| 100 | $0.03128 | $3.12800 |
| 500 | $0.02503 | $12.51500 |
| 1000 | $0.02253 | $22.53000 |
| 3000 | $0.02002 | $60.06000 |
| 5000 | $0.01939 | $96.95000 |
