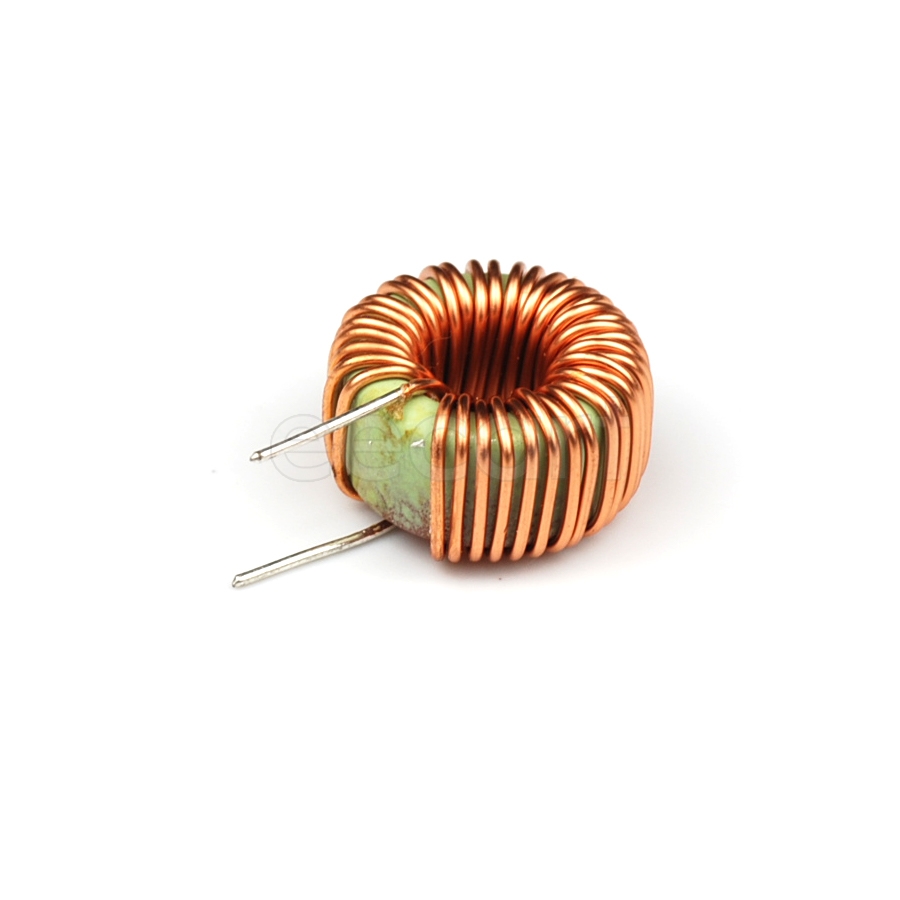

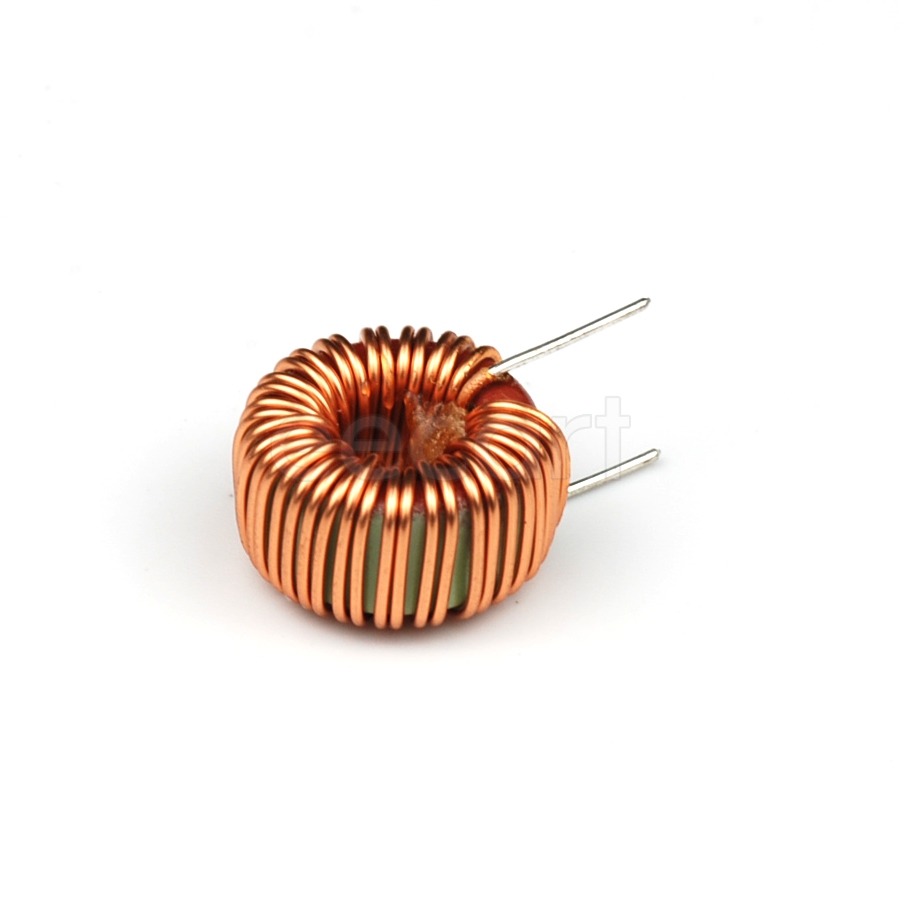

2000-470-V-RC
Manufacturer:
Bourns
Mfr.Part #:
2000-470-V-RC
Datasheet:
Description:
Fixed Inductors 17.27mmL×10.41mmW×17.27mmH Through Hole 47 µH 15 % 3.2 A 64 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 10.4 mm |
| Length | 13.462 mm |
| Width | 7.366 mm |
| Termination | Radial |
| Diameter | 17.27 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 17.272 mm |
| Packaging | Bulk |
| Depth | 10.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 910 µm |
| Lead Pitch | 7.37 mm |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Current Rating | 3.2 A |
| DC Resistance (DCR) | 64 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 47 µH |
| Core Material | Ferrite |
| Max DC Current | 3.2 A |
| DC Current | 3.2 A |
| Schedule B | 8504500000 |
| Type | Toroidal |
Stock: 498
Distributors
pcbx
pcbxUnit Price$1.23281
Ext.Price$1.23281
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.23281 | $1.23281 |
| 10 | $1.01993 | $10.19930 |
| 25 | $0.90708 | $22.67700 |
| 50 | $0.89763 | $44.88150 |
| 100 | $0.88827 | $88.82700 |
| 300 | $0.82815 | $248.44500 |
| 500 | $0.77210 | $386.05000 |
| 1000 | $0.71985 | $719.85000 |
