20020327-D021B01LF
Manufacturer:
Amphenol
Mfr.Part #:
20020327-D021B01LF
Datasheet:
Description:

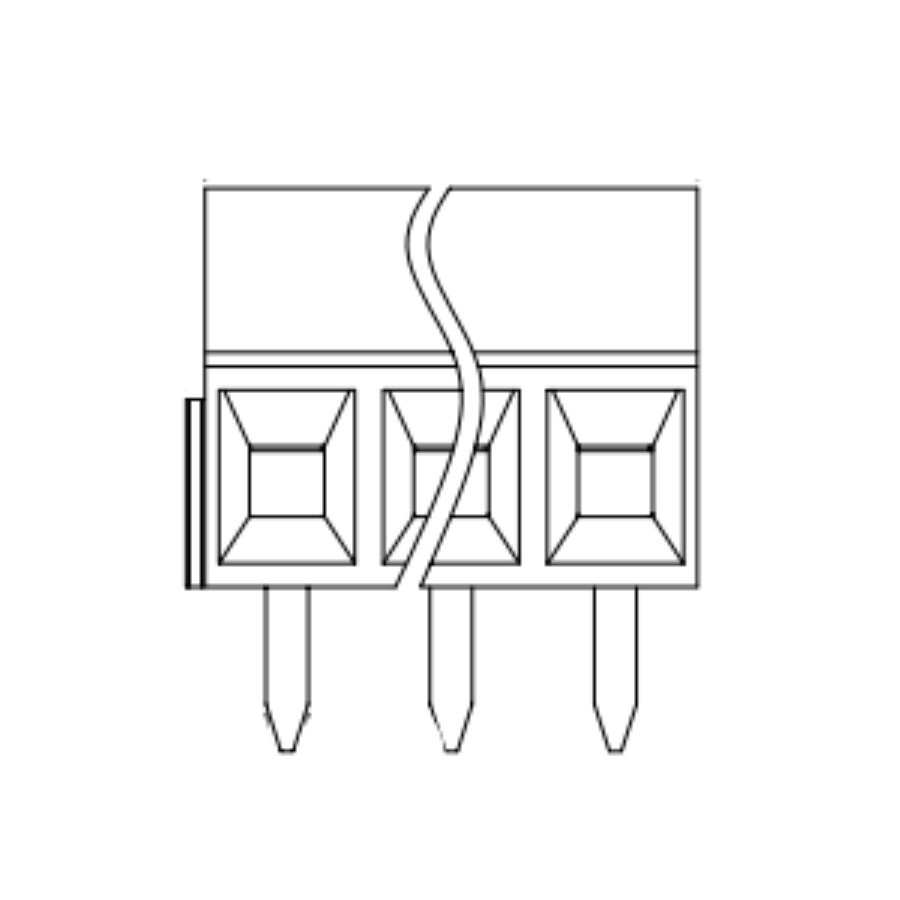

Terminal Blocks Through Hole 2 3.81 mm 10 A 300 V 24 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 8.02 mm |
| Termination | Screw |
| Max Operating Temperature | 115 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.81 mm |
| Current | 10 A |
| Current Rating | 10 A |
| Orientation | Straight |
| Max Supply Voltage | 300 V |
| Color | Green |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Screw, Terminal Block |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Green |
| Plating | Steel |
| Connection Method | Screw |
| Wire Gauge Range | 24 AWG to 16 AWG |
Stock: 1242
Distributors
pcbx
pcbxUnit Price$0.38814
Ext.Price$0.38814
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38814 | $0.38814 |
| 10 | $0.23681 | $2.36810 |
| 25 | $0.23206 | $5.80150 |
| 50 | $0.22741 | $11.37050 |
| 100 | $0.18467 | $18.46700 |
| 300 | $0.17546 | $52.63800 |
| 500 | $0.16671 | $83.35500 |
| 1000 | $0.14021 | $140.21000 |
