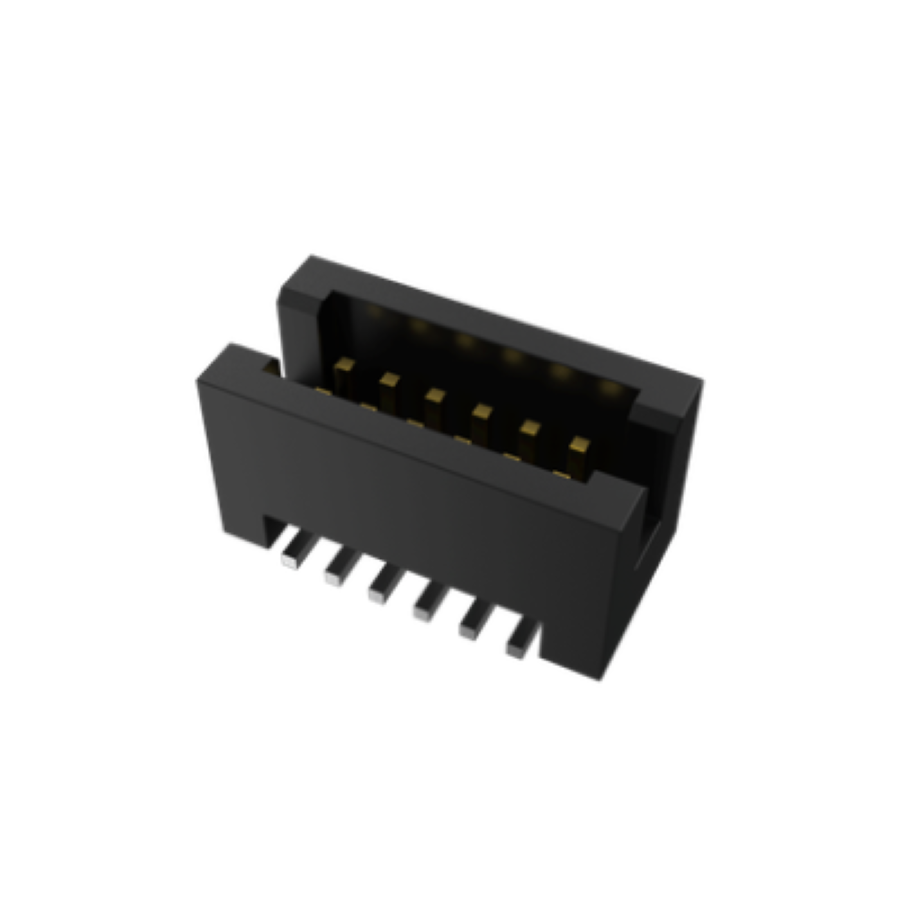

20021221-00012C4LF
Manufacturer:
Amphenol
Mfr.Part #:
20021221-00012C4LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:12 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 5.3 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Connector Type | Male Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Contact Mating Length | 3.048 mm |
| Stack Height | 5.6 mm |
| Mating Post Length | 3.05 mm |
| Schedule B | 8536694040 |
Stock: 451
Distributors
pcbx
pcbxUnit Price$0.83869
Ext.Price$0.83869
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83869 | $0.83869 |
| 10 | $0.71301 | $7.13010 |
| 25 | $0.64798 | $16.19950 |
| 50 | $0.58889 | $29.44450 |
| 100 | $0.53519 | $53.51900 |
| 300 | $0.53305 | $159.91500 |
| 500 | $0.53091 | $265.45500 |
| 1000 | $0.50099 | $500.99000 |
