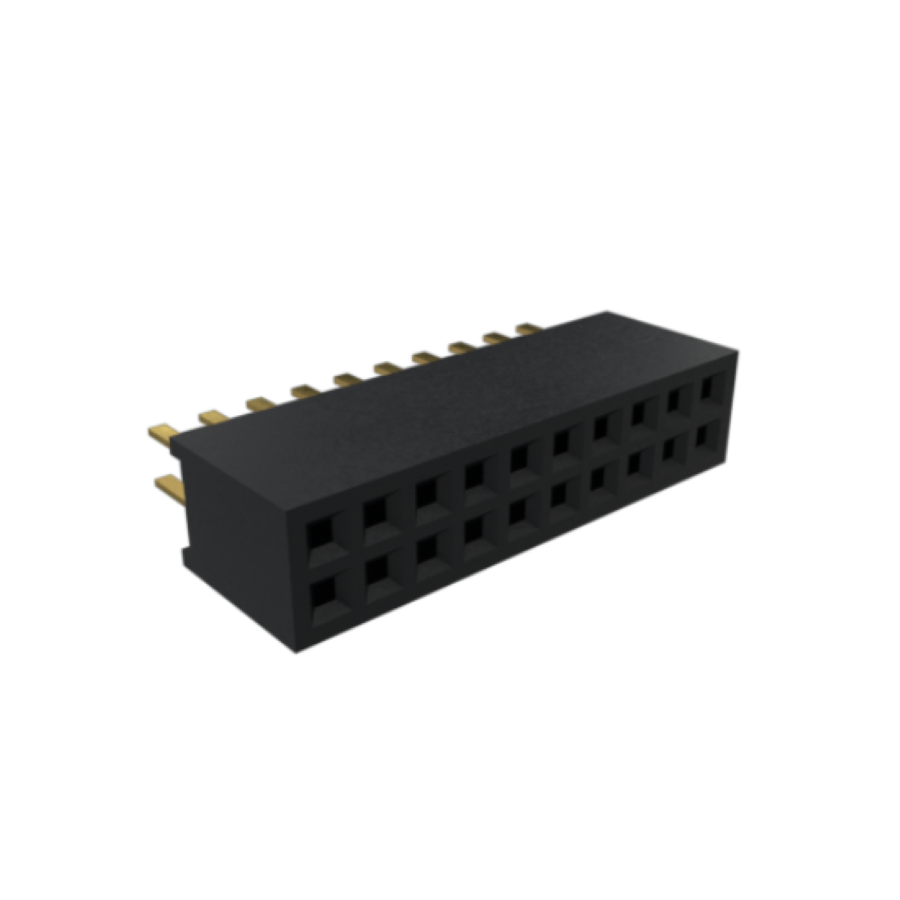

20021311-00012T4LF
Manufacturer:
Amphenol
Mfr.Part #:
20021311-00012T4LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle, Socket Number of Positions:12 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.4 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 12 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Contact Gender | Male |
| Termination Post Length | 2.4 mm |
Stock: 148
Distributors
pcbx
pcbxUnit Price$0.78835
Ext.Price$0.78835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78835 | $0.78835 |
| 10 | $0.73871 | $7.38710 |
| 25 | $0.69219 | $17.30475 |
| 50 | $0.64860 | $32.43000 |
| 100 | $0.60776 | $60.77600 |
| 300 | $0.56949 | $170.84700 |
| 500 | $0.53363 | $266.81500 |
| 1000 | $0.50003 | $500.03000 |
| 3000 | $0.46854 | $1405.62000 |
| 5000 | $0.43904 | $2195.20000 |
| 10000 | $0.41138 | $4113.80000 |
