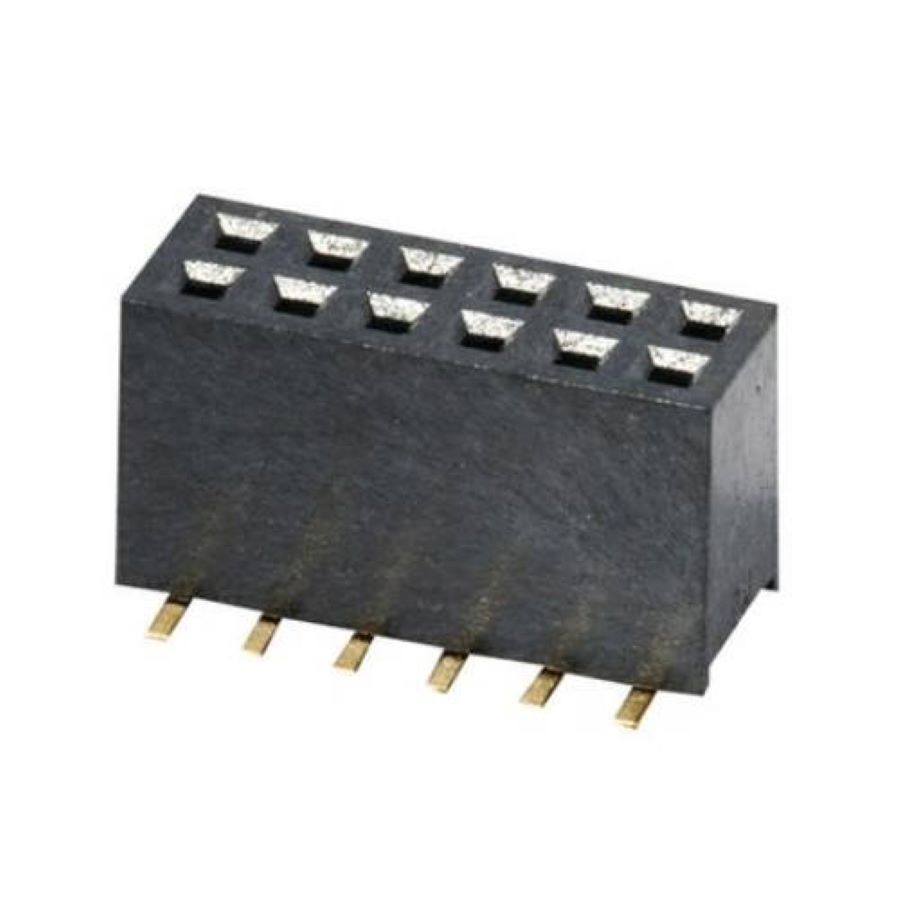

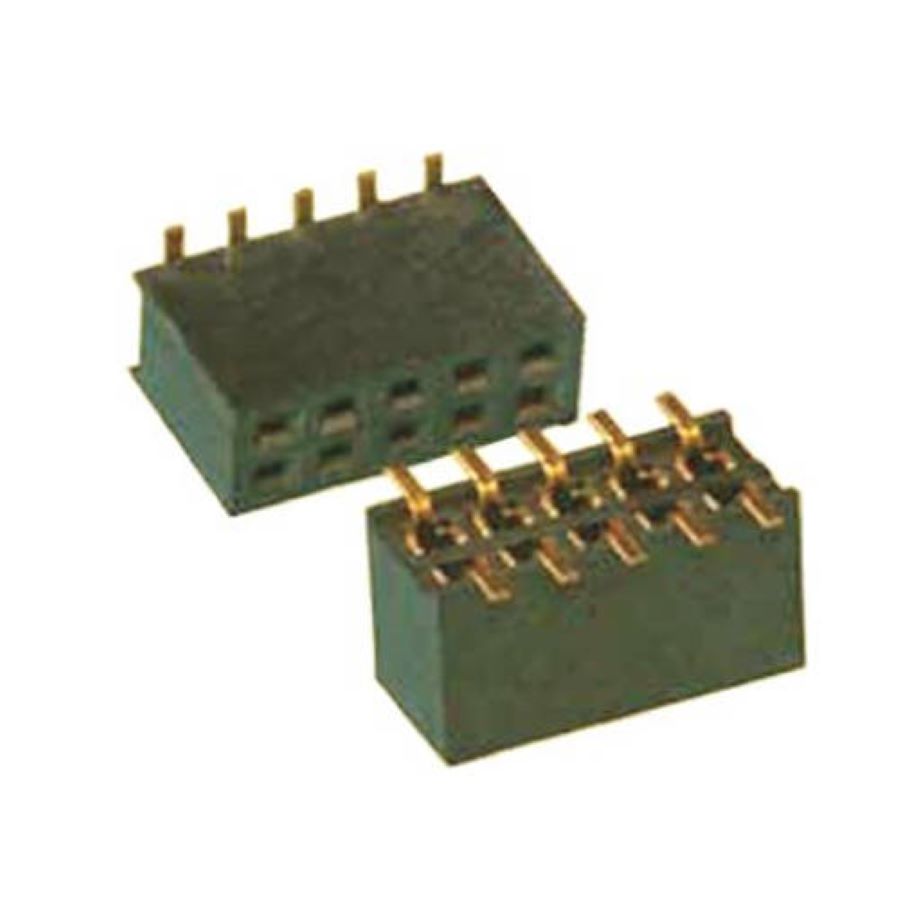

20021321-00016C4LF
Manufacturer:
Amphenol
Mfr.Part #:
20021321-00016C4LF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Receptacle Number of Positions:16 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 20.78 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 16 |
| Connector Type | Receptacle |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Black |
| Stack Height | 4.3 mm |
Stock: 2135
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.85750 | $8.57500 |
| 25 | $0.84467 | $21.11675 |
| 50 | $0.83270 | $41.63500 |
| 100 | $0.71301 | $71.30100 |
| 300 | $0.69156 | $207.46800 |
| 500 | $0.67076 | $335.38000 |
| 1000 | $0.65060 | $650.60000 |
