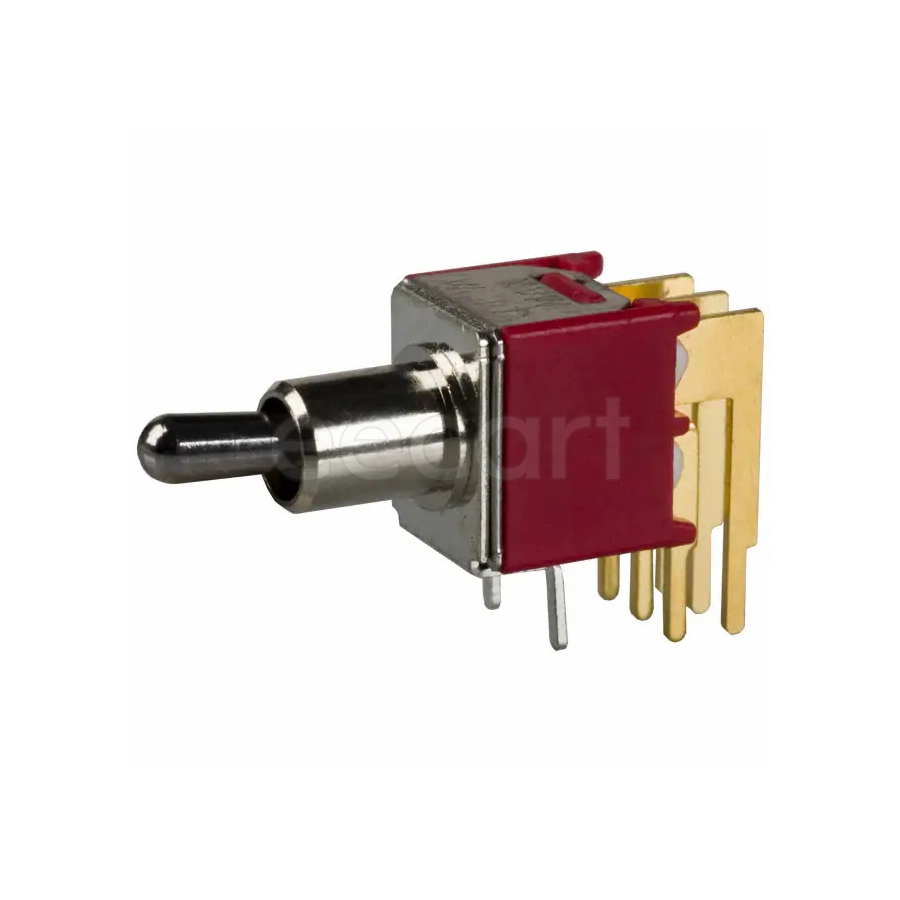

200MDP1T2B2M6RE
Manufacturer:
E-Switch
Mfr.Part #:
200MDP1T2B2M6RE
Datasheet:
Description:
Toggle Switches Through Hole Current Rating:400 mA DPDT ON - ON Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Length | 8.13 mm |
| Width | 9.14 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 20 V |
| Circuit Type | DPDT |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Current Rating | 400 mA |
| Orientation | Right Angle |
| Actuator Length | 5.33 mm |
| Throw Configuration | DPDT |
| Switch Function | ON - ON |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 30 kcycles |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Termination Style | PC Pin |
Stock: 944
Distributors
pcbx
pcbxUnit Price$3.42275
Ext.Price$3.42275
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.42275 | $3.42275 |
| 10 | $2.95329 | $29.53290 |
| 25 | $2.78483 | $69.62075 |
| 50 | $2.66370 | $133.18500 |
| 100 | $2.53514 | $253.51400 |
| 300 | $2.41279 | $723.83700 |
| 500 | $2.29634 | $1148.17000 |
| 1000 | $2.18547 | $2185.47000 |
