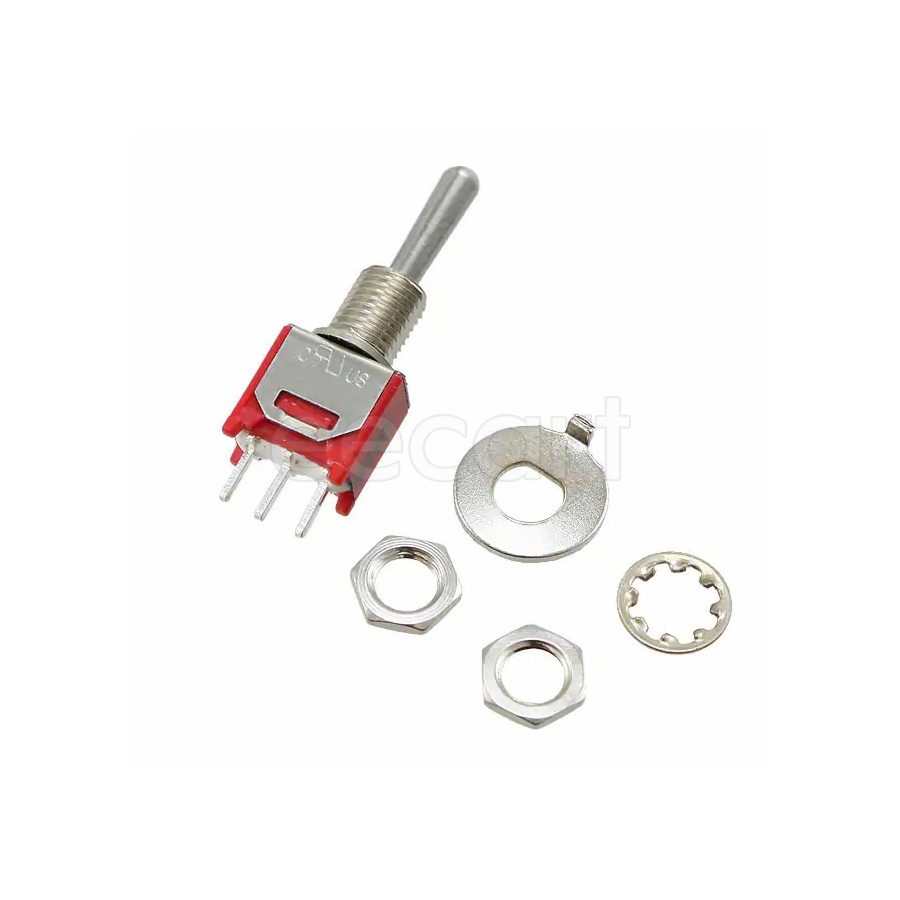

200MSP3T1B1M2QEH
Manufacturer:
E-Switch
Mfr.Part #:
200MSP3T1B1M2QEH
Datasheet:
Description:
Toggle Switches Through Hole Current Rating:3 A SPDT ON - OFF - ON Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 120 V |
| Circuit Type | SPDT |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 3 A |
| Orientation | Vertical |
| Actuator Length | 9.4 mm |
| Throw Configuration | SPDT |
| Switch Function | ON - OFF - ON |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 30 kcycles |
| Actuator Material | Brass, Chrome |
| Contact Current Rating | 3 A |
| Actuator Type | Standard Round |
| Termination Style | PC Pin |
