2027-47-BLF
Manufacturer:
Bourns
Mfr.Part #:
2027-47-BLF
Datasheet:
Description:

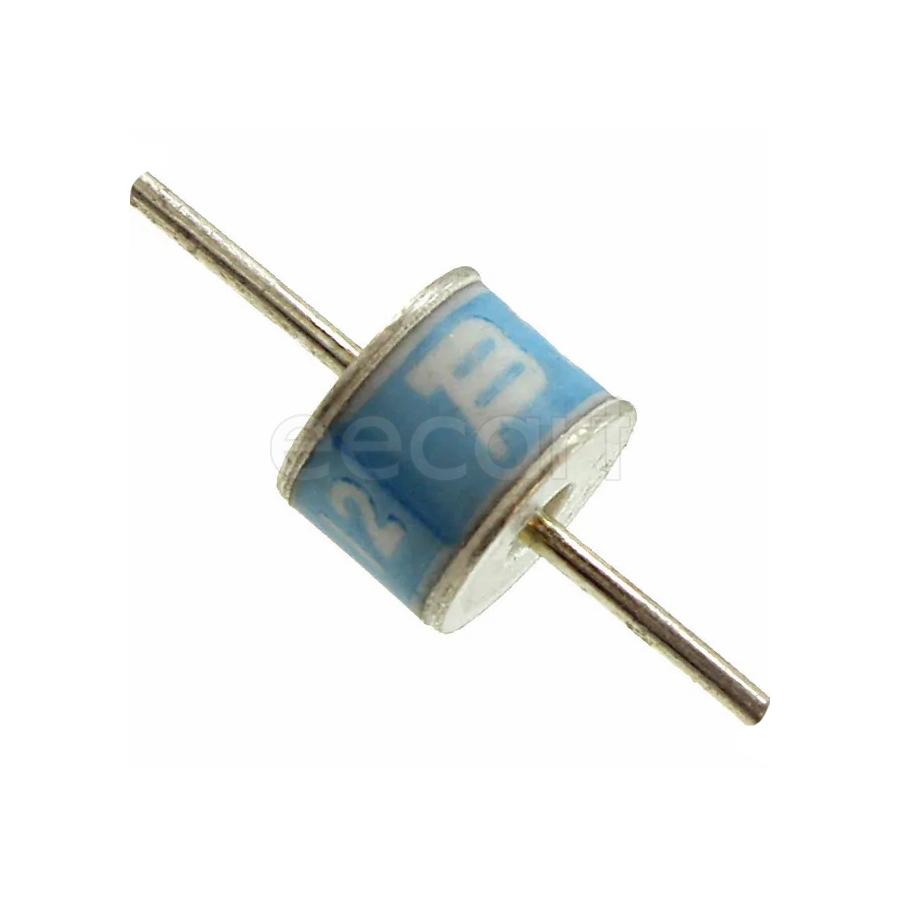

Gas Discharge Tube Arresters (GDT) Through Hole 25 kA 470 V Number of Poles:2 Fail Short:No Diameter:8 mm
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Tolerance | 15 % |
| Length | 6 mm |
| Termination | Axial |
| Diameter | 8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Diameter | 800 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Terminals | 2 |
| Approvals | UL |
| Fail Short | No |
| Number of Poles | 2 |
| Peak Pulse Current | 25 kA |
| DC Sparkover | 470 V |
Stock: 507
Distributors
pcbx
pcbxUnit Price$0.73866
Ext.Price$0.73866
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73866 | $0.73866 |
| 10 | $0.69506 | $6.95060 |
| 25 | $0.63986 | $15.99650 |
| 50 | $0.58904 | $29.45200 |
| 100 | $0.54288 | $54.28800 |
| 300 | $0.51973 | $155.91900 |
| 500 | $0.49757 | $248.78500 |
| 1000 | $0.46936 | $469.36000 |
| 3000 | $0.42682 | $1280.46000 |
| 5000 | $0.38814 | $1940.70000 |
