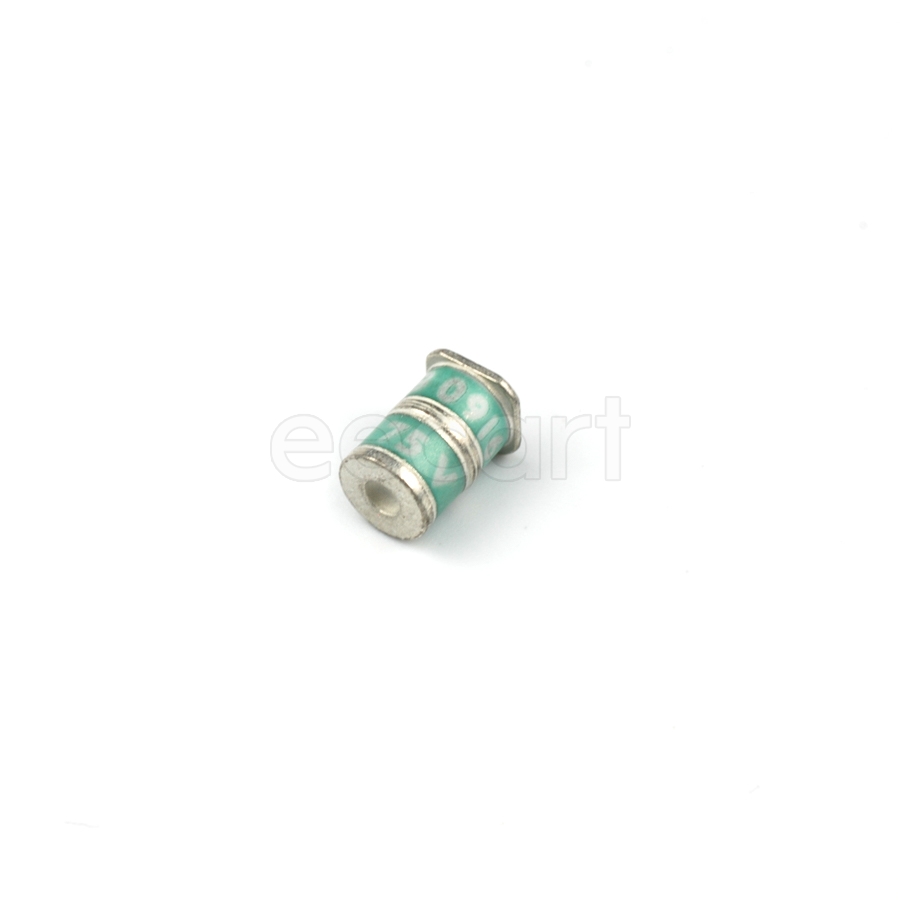

2035-09-SM-RPLF
Manufacturer:
Bourns
Mfr.Part #:
2035-09-SM-RPLF
Datasheet:
Description:
Gas Discharge Tube Arresters (GDT) SMD/SMT 10 kA 90 V Number of Poles:2 Fail Short:No Diameter:5 mm
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Tolerance | 20 % |
| Length | 4.4 mm |
| Termination | SMD/SMT |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.9 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Terminals | 2 |
| Max Voltage Rating (DC) | 90 V |
| Approvals | UL |
| Number of Terminations | 2 |
| Fail Short | No |
| Number of Poles | 2 |
| Peak Pulse Current | 10 kA |
| DC Sparkover | 90 V |
Stock: 712
Distributors
pcbx
pcbxUnit Price$0.88147
Ext.Price$0.88147
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.88147 | $0.88147 |
| 10 | $0.70579 | $7.05790 |
| 25 | $0.64378 | $16.09450 |
| 50 | $0.58722 | $29.36100 |
| 100 | $0.53563 | $53.56300 |
| 300 | $0.50841 | $152.52300 |
| 500 | $0.48258 | $241.29000 |
| 1000 | $0.45522 | $455.22000 |
