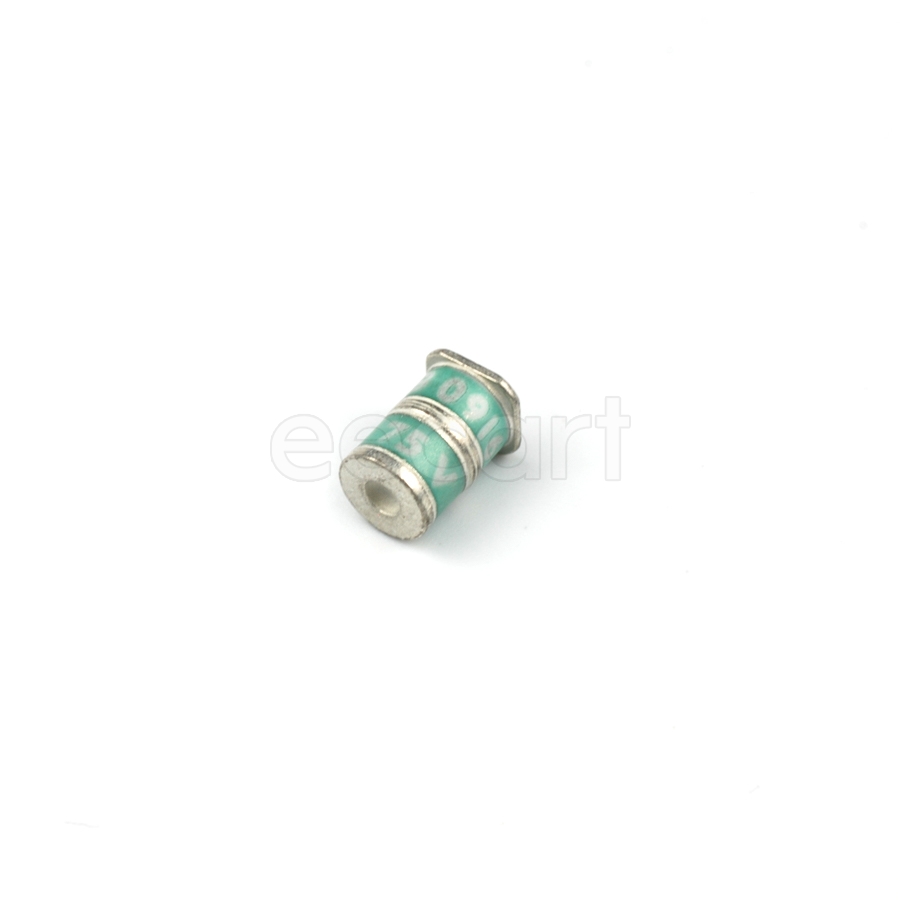

2036-09-SM-RPLF
Manufacturer:
Bourns
Mfr.Part #:
2036-09-SM-RPLF
Datasheet:
Description:
Gas Discharge Tube Arresters (GDT) SMD/SMT 20 kA 90 V Number of Poles:3 Fail Short:No
| Parameter | Value |
|---|---|
| Capacitance | 2 pF |
| Tolerance | 20 % |
| Length | 7.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 5 mm |
| Case/Package | SMD/SMT |
| Mount | SMD/SMT |
| Packaging | Reel |
| Depth | 5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.3 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Terminals | 3 |
| Approvals | UL |
| Fail Short | No |
| Number of Poles | 3 |
| Peak Pulse Current | 20 kA |
| DC Sparkover | 90 V |
Stock: 2357
Distributors
pcbx
pcbxUnit Price$1.04208
Ext.Price$1.04208
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.04208 | $1.04208 |
| 10 | $0.86986 | $8.69860 |
| 25 | $0.79985 | $19.99625 |
| 50 | $0.73547 | $36.77350 |
| 100 | $0.67628 | $67.62800 |
| 300 | $0.63733 | $191.19900 |
| 500 | $0.60062 | $300.31000 |
| 1000 | $0.57793 | $577.93000 |
