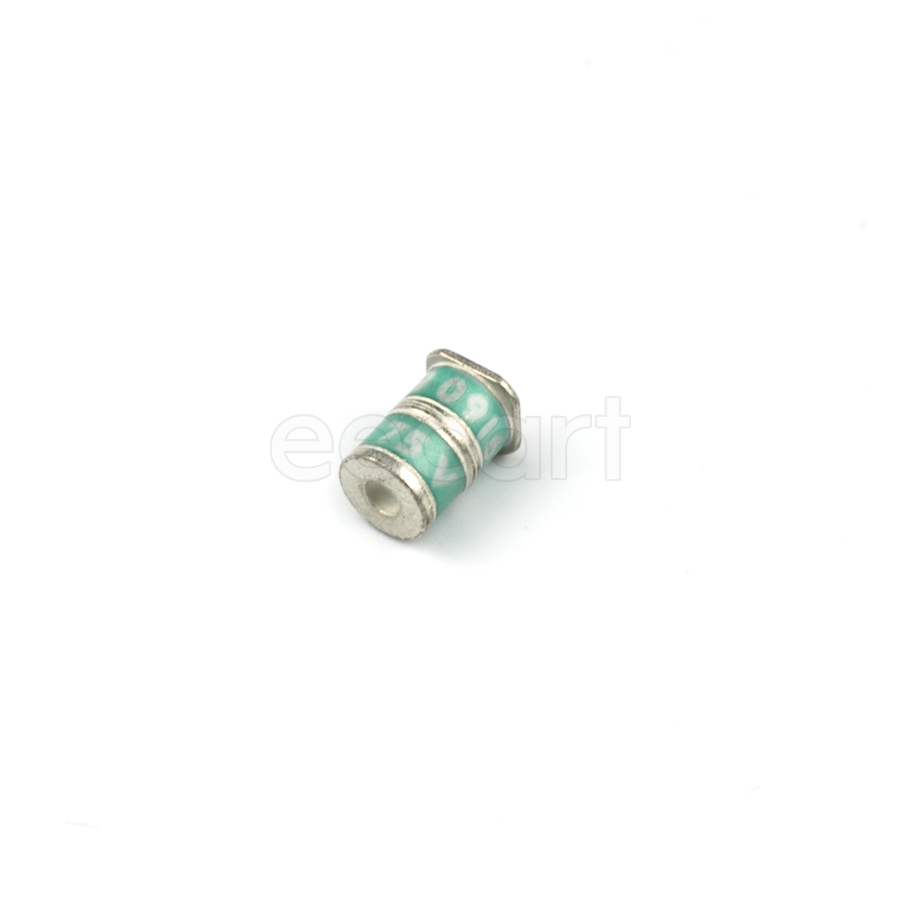

2038-15-SM-RPLF
Manufacturer:
Bourns
Mfr.Part #:
2038-15-SM-RPLF
Datasheet:
Description:
Gas Discharge Tube Arresters (GDT) SMD/SMT 10 kA 150 V Number of Poles:3 Fail Short:No Diameter:5 mm
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Contact Plating | Tin |
| Insulation Resistance | 1 GΩ |
| Length | 7.5 mm |
| Packaging | Reel |
| Fail Short | No |
| Mount | SMD/SMT |
| Min Operating Temperature | -40 °C |
| Depth | 5 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 90 °C |
| Lead Pitch | 3.3 mm |
| Peak Pulse Current | 10 kA |
| Number of Terminals | 3 |
| Case/Package | SMD/SMT |
| REACH SVHC | No SVHC |
| Number of Poles | 3 |
| Tolerance | 20 % |
| Height | 5.3 mm |
| DC Sparkover | 150 V |
| RoHS | Compliant |
Stock: 5344
Distributors
pcbx
pcbxUnit Price$1.28923
Ext.Price$1.28923
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28923 | $1.28923 |
| 10 | $1.18920 | $11.89200 |
| 25 | $1.08458 | $27.11450 |
| 50 | $0.98916 | $49.45800 |
| 100 | $0.84467 | $84.46700 |
| 300 | $0.79988 | $239.96400 |
| 500 | $0.75747 | $378.73500 |
| 1000 | $0.65060 | $650.60000 |
| 3000 | $0.62887 | $1886.61000 |
| 5000 | $0.60786 | $3039.30000 |
