2060-452/998-404
Manufacturer:
WAGO
Mfr.Part #:
2060-452/998-404
Datasheet:
Description:

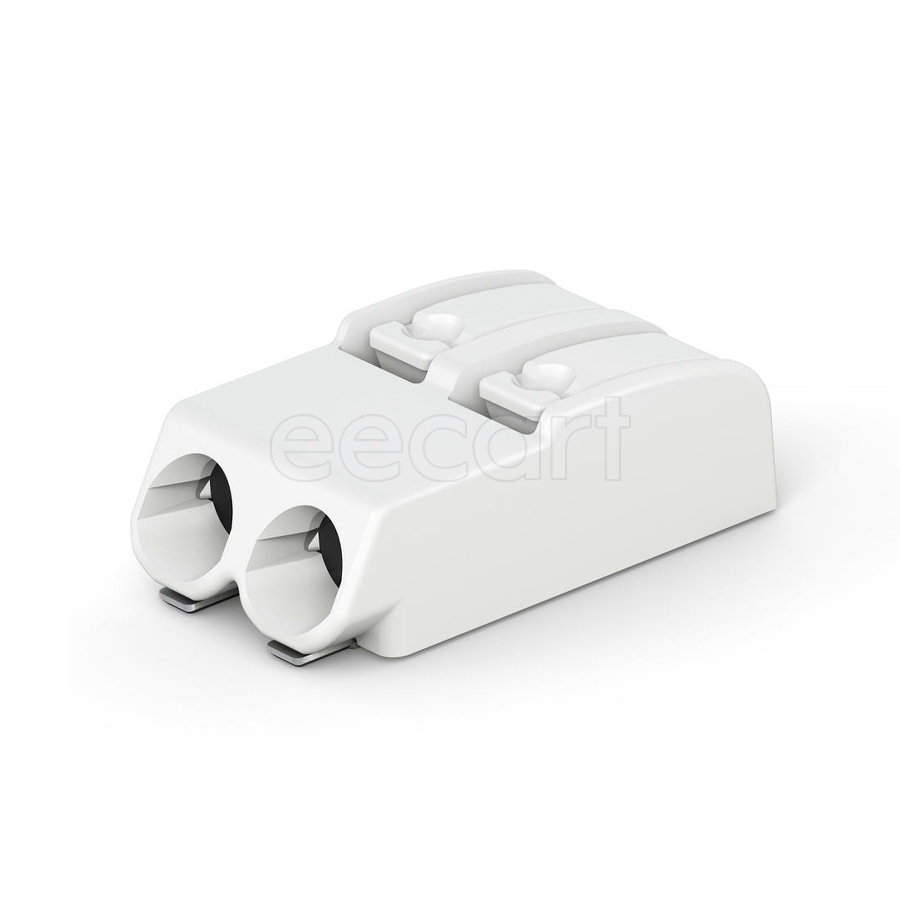

Terminal Blocks SMD/SMT 2 4 mm 9 A 600 V 24 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Length | 7.9 mm |
| Width | 10.1 mm |
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -60 °C |
| Height | 4.5 mm |
| Material | Copper, Tin |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 4 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Color | White |
| Gender | Female |
| Number of Contacts | 2 |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 2 |
| Stripping Length | -7 mm |
| Connection Method | Push-In |
| Wire Gauge Range | 24 AWG to 18 AWG |
| Voltage Rating (IEC) | 63 V |
| Current Rating (IEC) | 9 A |
