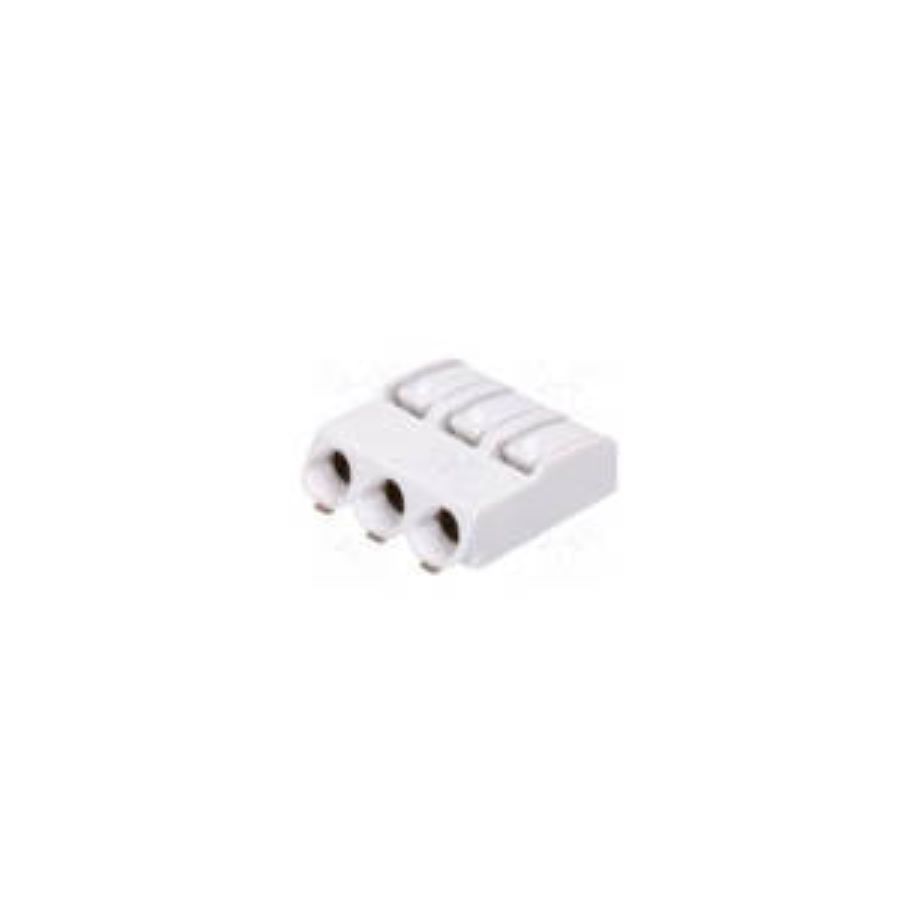

2060-453/998-404
Manufacturer:
WAGO
Mfr.Part #:
2060-453/998-404
Datasheet:
Description:
Terminal Blocks SMD/SMT 3 4 mm 9 A 600 V 24 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Length | 11.9 mm |
| Width | 10.1 mm |
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -60 °C |
| Height | 4.5 mm |
| Material | Copper, Tin |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 4 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Color | White |
| Number of Contacts | 3 |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 3 |
| Stripping Length | -7 mm |
| Schedule B | 8536695050 |
| Connection Method | Push-In |
| Wire Gauge Range | 24 AWG to 18 AWG |
| Voltage Rating (IEC) | 63 V |
| Current Rating (IEC) | 9 A |
Stock: 3699
Distributors
pcbx
pcbxUnit Price$1.30736
Ext.Price$1.30736
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30736 | $1.30736 |
| 10 | $0.94043 | $9.40430 |
| 25 | $0.81940 | $20.48500 |
| 50 | $0.74182 | $37.09100 |
| 100 | $0.67644 | $67.64400 |
| 300 | $0.60804 | $182.41200 |
| 500 | $0.54655 | $273.27500 |
