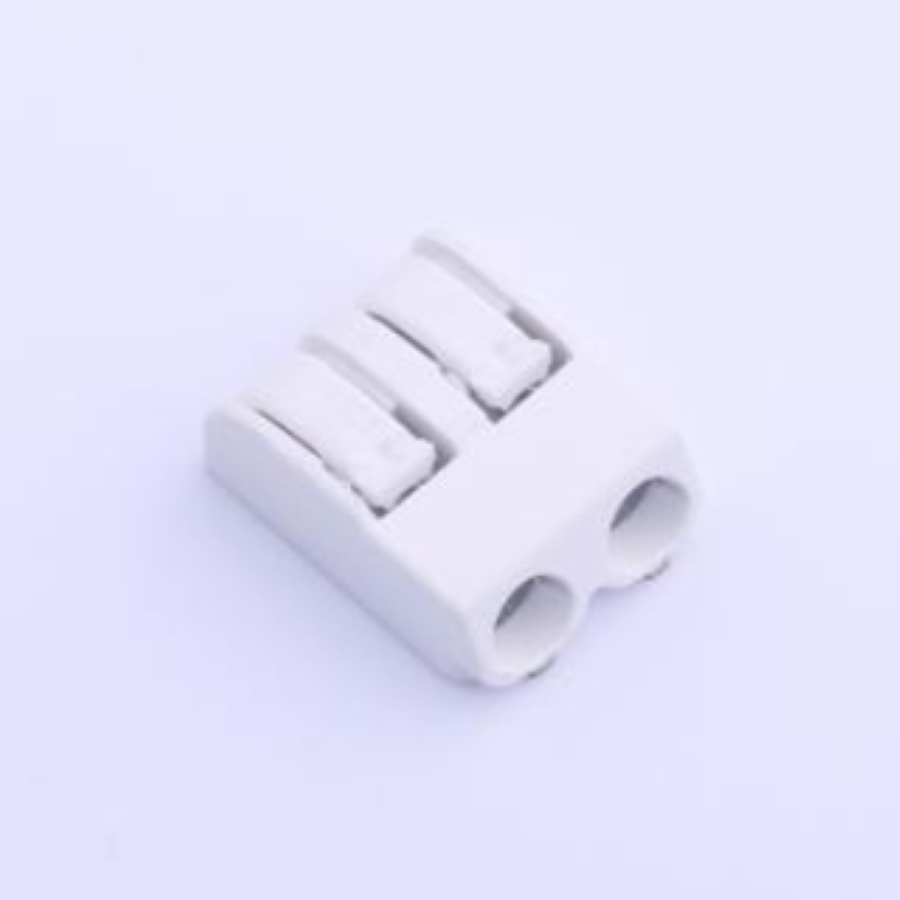

2061-602/998-404
Manufacturer:
WAGO
Mfr.Part #:
2061-602/998-404
Datasheet:
Description:
Terminal Blocks SMD/SMT 2 6 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Length | 11.7 mm |
| Width | 13.8 mm |
| Termination | Spring Clamp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -60 °C |
| Height | 5.6 mm |
| Material | Copper, Tin |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 6 mm |
| Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Color | White |
| Number of Contacts | 2 |
| Wire/Cable Gauge | 20 AWG |
| Number of Positions | 2 |
| Stripping Length | -10 mm |
| Schedule B | 8536695050 |
Stock: 4728
Distributors
pcbx
pcbxUnit Price$1.97693
Ext.Price$1.97693
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.97693 | $1.97693 |
| 10 | $1.41222 | $14.12220 |
| 25 | $1.23313 | $30.82825 |
| 50 | $1.12024 | $56.01200 |
| 100 | $1.02607 | $102.60700 |
| 300 | $0.93196 | $279.58800 |
| 500 | $0.84649 | $423.24500 |
