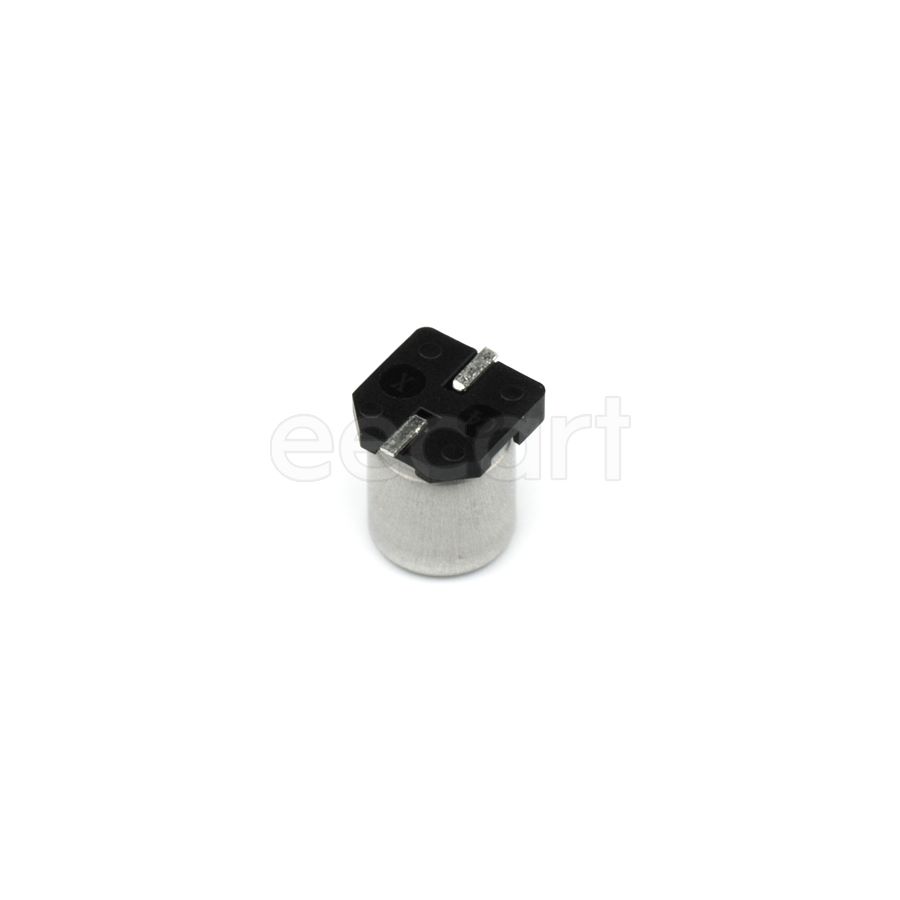

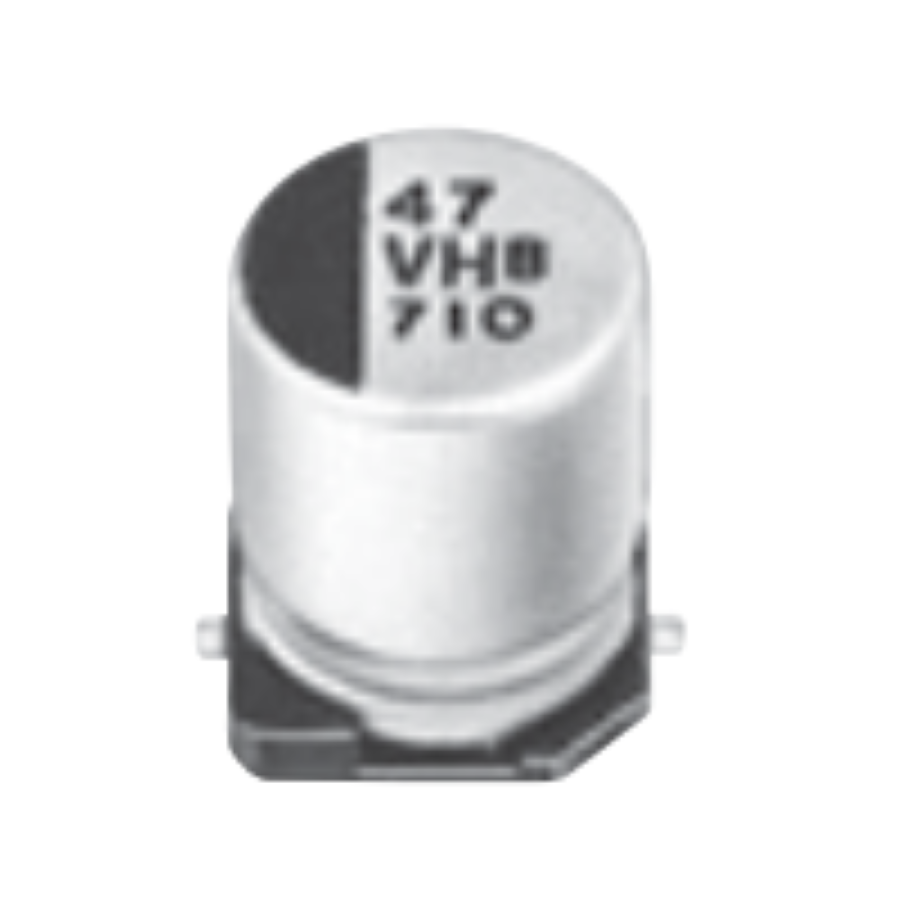

20SVF120M
Manufacturer:
Panasonic
Mfr.Part #:
20SVF120M
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial, Can - SMD SMD/SMT 120 µF 20 % 20 V
| Parameter | Value |
|---|---|
| Capacitance | 120 µF |
| Voltage Rating (DC) | 20 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 25 mΩ |
| Life (Hours) | 1000 hours |
| Ripple Current | 3.2 A |
| Height - Seated (Max) | 6 mm |
| Diameter | 6.3 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 480 µA |
| Dissipation Factor | 12 % |
| Height | 6 mm |
| Material | Polymer |
| Packaging | Reel |
| Voltage Rating | 20 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Ripple Current @ Low Frequency | 50.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.01 A @ 100 kHz |
Stock: 554
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.41977 | $4.19770 |
| 25 | $0.41891 | $10.47275 |
| 50 | $0.41805 | $20.90250 |
| 100 | $0.41720 | $41.72000 |
| 300 | $0.40906 | $122.71800 |
| 500 | $0.40108 | $200.54000 |
| 1000 | $0.39327 | $393.27000 |
