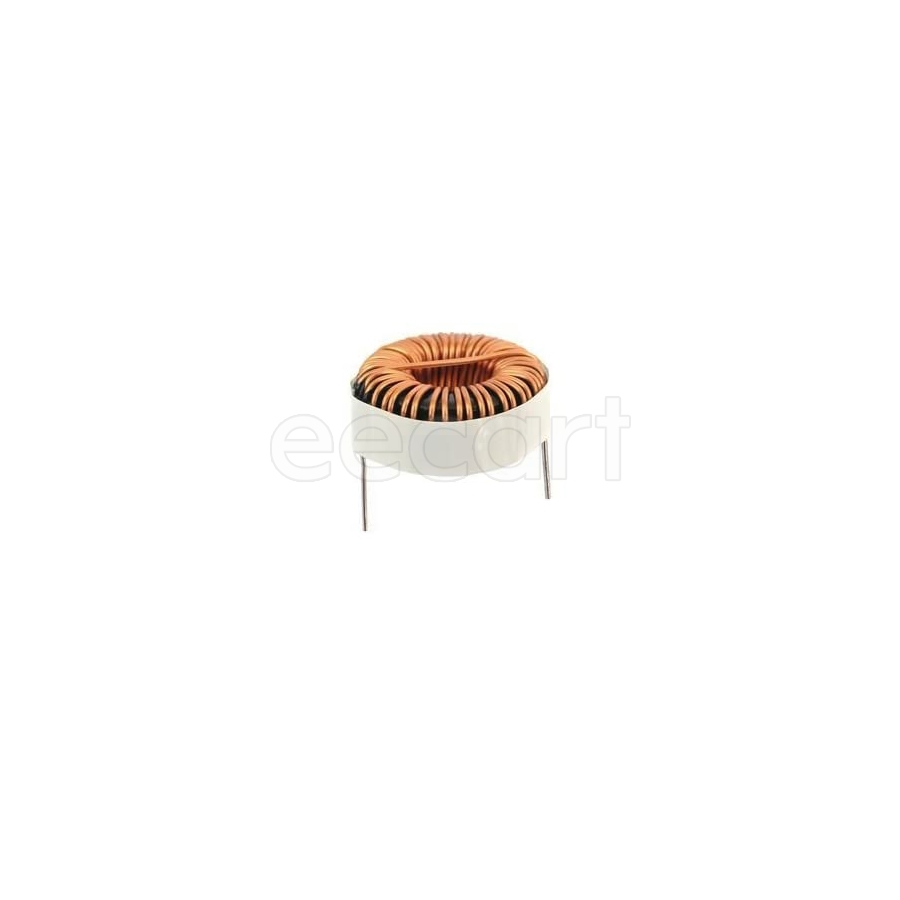

2100HT-102-H-RC
Manufacturer:
Bourns
Mfr.Part #:
2100HT-102-H-RC
Datasheet:
Description:
Fixed Inductors 21.84mmD×11.43mmW×21.84mmH Through Hole 1 mH 15 % 1.6 A 430 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Width | 11.43 mm |
| Termination | Radial |
| Diameter | 21.8 mm |
| Max Operating Temperature | 200 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 11.43 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 20.57 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead/Base Style | Radial |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 430 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 mH |
| RMS Current (Irms) | 1.6 A |
| inductance tolerance | 15 % |
| Max DC Current | 1.6 A |
| DC Current | 1.6 A |
| Schedule B | 8504500000 |
| Type | Toroidal |
