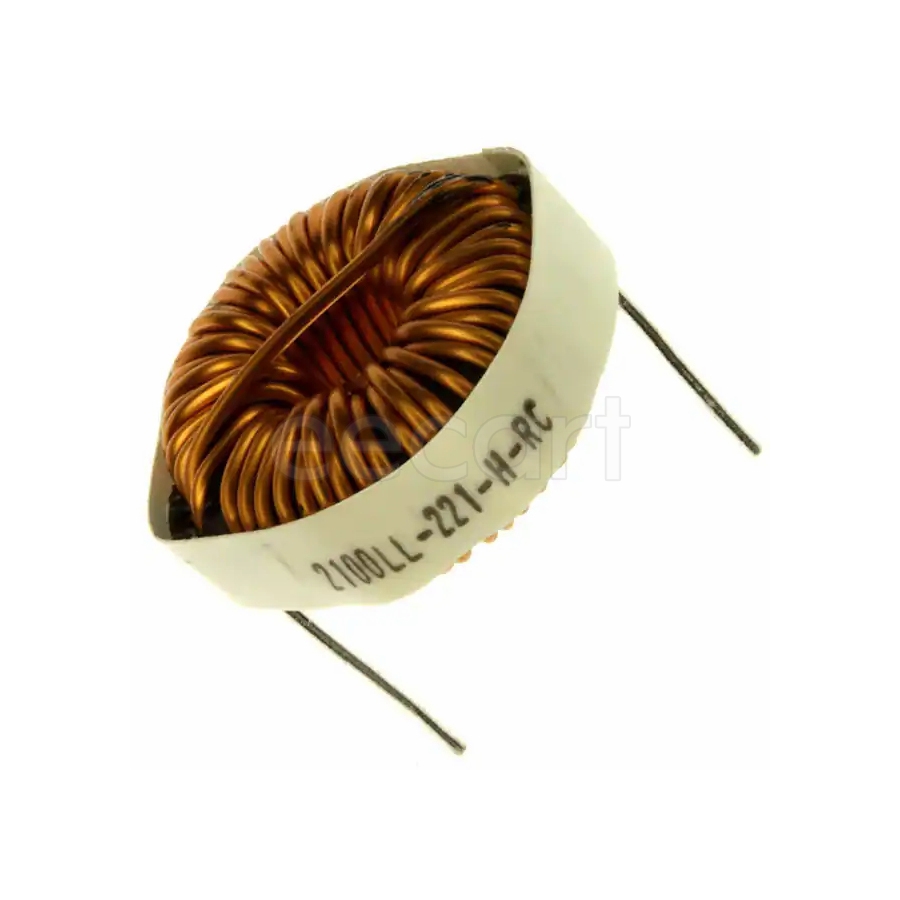

2100LL-221-H-RC
Manufacturer:
Bourns
Mfr.Part #:
2100LL-221-H-RC
Datasheet:
Description:
Fixed Inductors 21.84mmD×11.43mmW×21.84mmH Through Hole 220 µH 15 % 3.5 A 53 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Height - Seated (Max) | 11.43 mm |
| Length | 11.43 mm |
| Termination | Radial |
| Diameter | 21.84 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 11.43 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 863.6 µm |
| Lead Pitch | 19.3 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 12.7 mm |
| Lead/Base Style | Radial |
| Self Resonant Frequency | 1 kHz |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 53 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 220 µH |
| Core Material | Sendust |
| RMS Current (Irms) | 3.5 A |
| inductance tolerance | 15 % |
| Max DC Current | 3.5 A |
| DC Current | 3.5 A |
| Schedule B | 8504500000 |
| Type | Toroidal |
