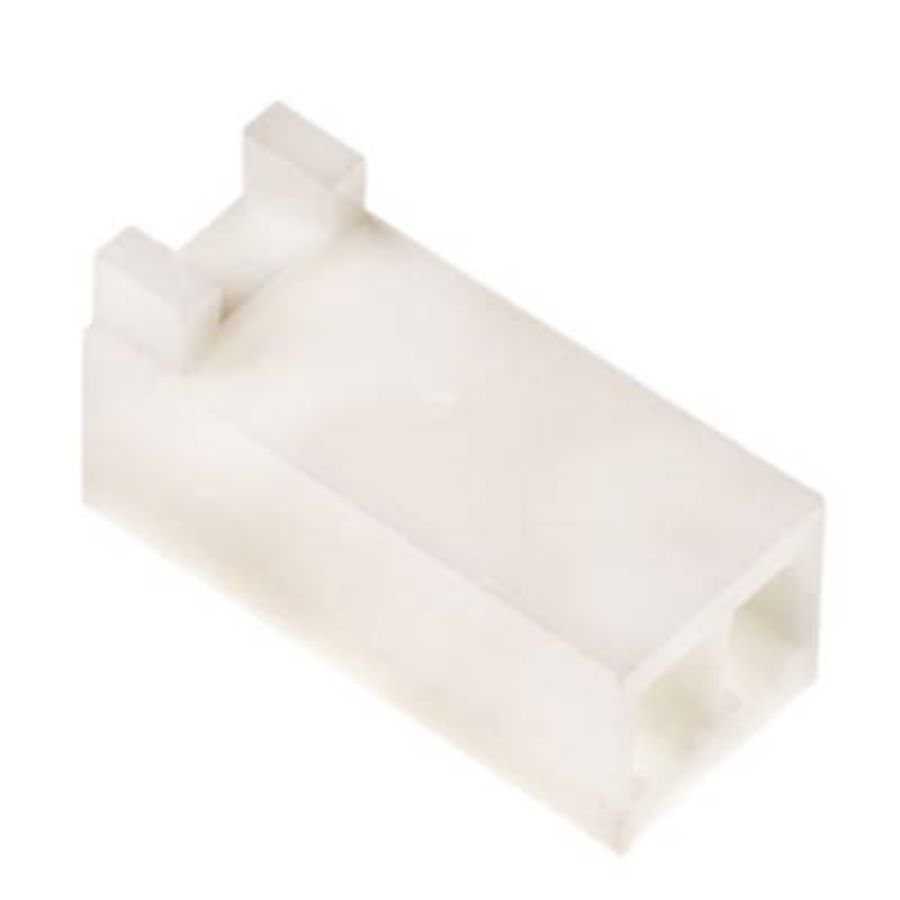

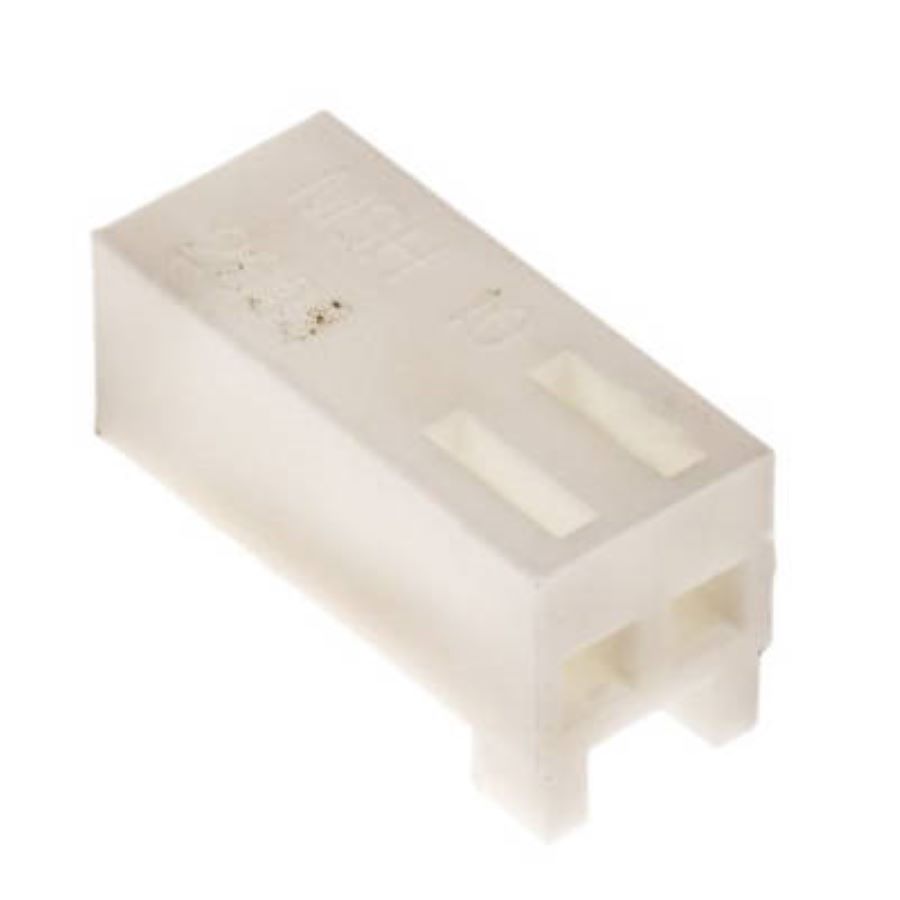

22-01-3027
Manufacturer:
Molex
Mfr.Part #:
22-01-3027
Datasheet:
Description:
Headers and Wire Housings Wire Socket Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.64 mm |
| Width | 4.82 mm |
| Termination | Crimp |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 4.82 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 12.7 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Brass, Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 4 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Connector Type | Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Housing Color | White |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 539444
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.04753 | $0.47530 |
| 50 | $0.03856 | $1.92800 |
| 100 | $0.03129 | $3.12900 |
| 500 | $0.02903 | $14.51500 |
| 1000 | $0.02693 | $26.93000 |
| 3000 | $0.02530 | $75.90000 |
| 5000 | $0.02376 | $118.80000 |
