22-03-2021
Manufacturer:
Molex
Mfr.Part #:
22-03-2021
Datasheet:
Description:

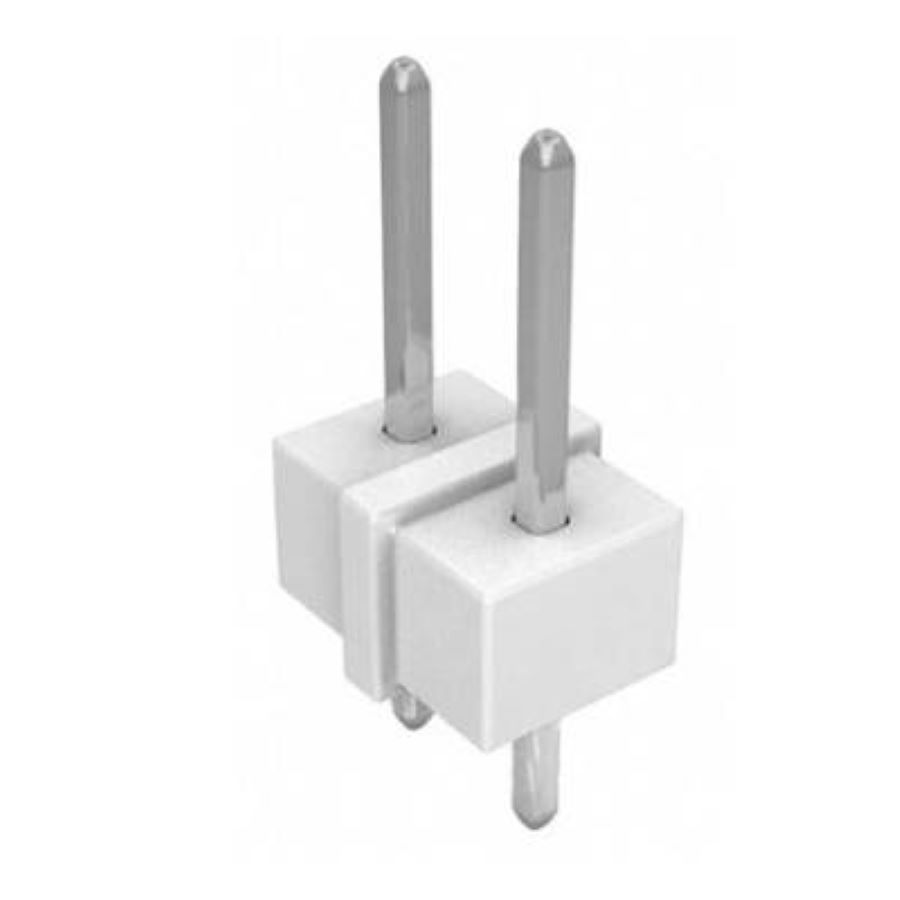

Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 4.83 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 10.79 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 2.34 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Hole Diameter | 1.02 mm |
| Number of Poles | 2 |
| Number of Lines | 1 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 789
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.09683 | $4.84150 |
| 100 | $0.08635 | $8.63500 |
| 500 | $0.07495 | $37.47500 |
| 1000 | $0.06506 | $65.06000 |
| 3000 | $0.05754 | $172.62000 |
