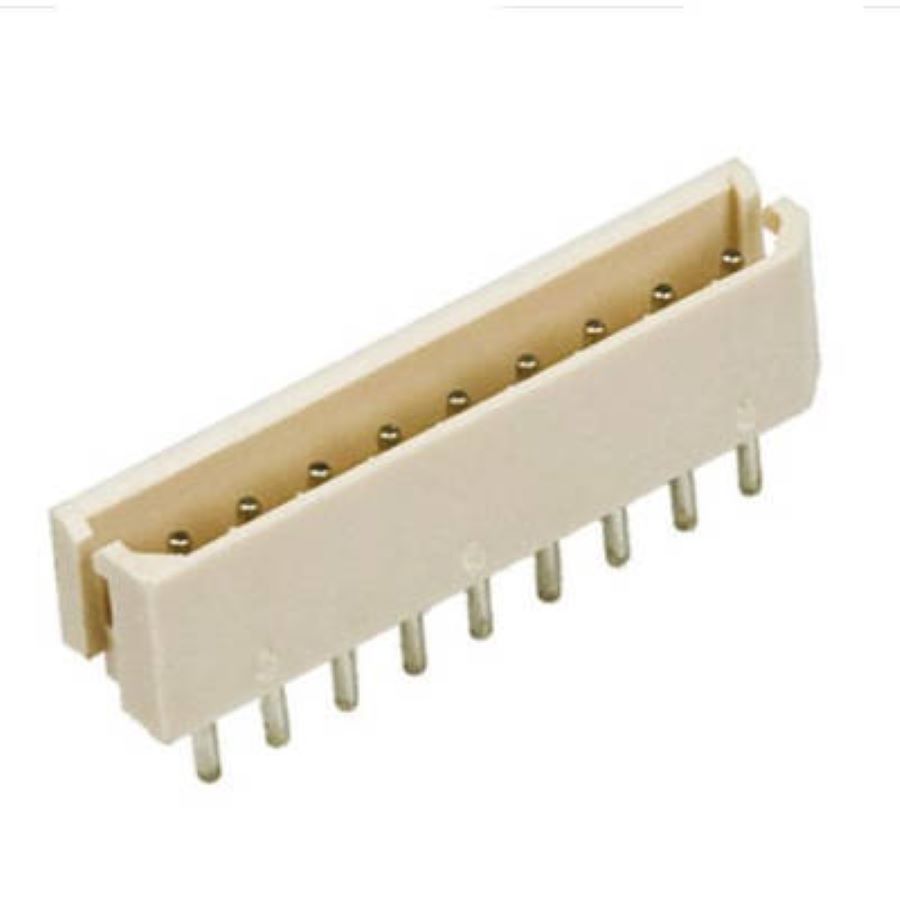

22-03-5095
Manufacturer:
Molex
Mfr.Part #:
22-03-5095
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:9 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Number of Circuits | 9 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Gender | Pin (Male) |
| Number of Contacts | 9 |
| Connector Type | Header |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
Stock: 3128
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.12226 | $1.22260 |
| 50 | $0.11915 | $5.95750 |
| 100 | $0.11612 | $11.61200 |
| 500 | $0.11317 | $56.58500 |
| 1000 | $0.11029 | $110.29000 |
| 3000 | $0.10855 | $325.65000 |
| 5000 | $0.10684 | $534.20000 |
| 10000 | $0.10516 | $1051.60000 |
