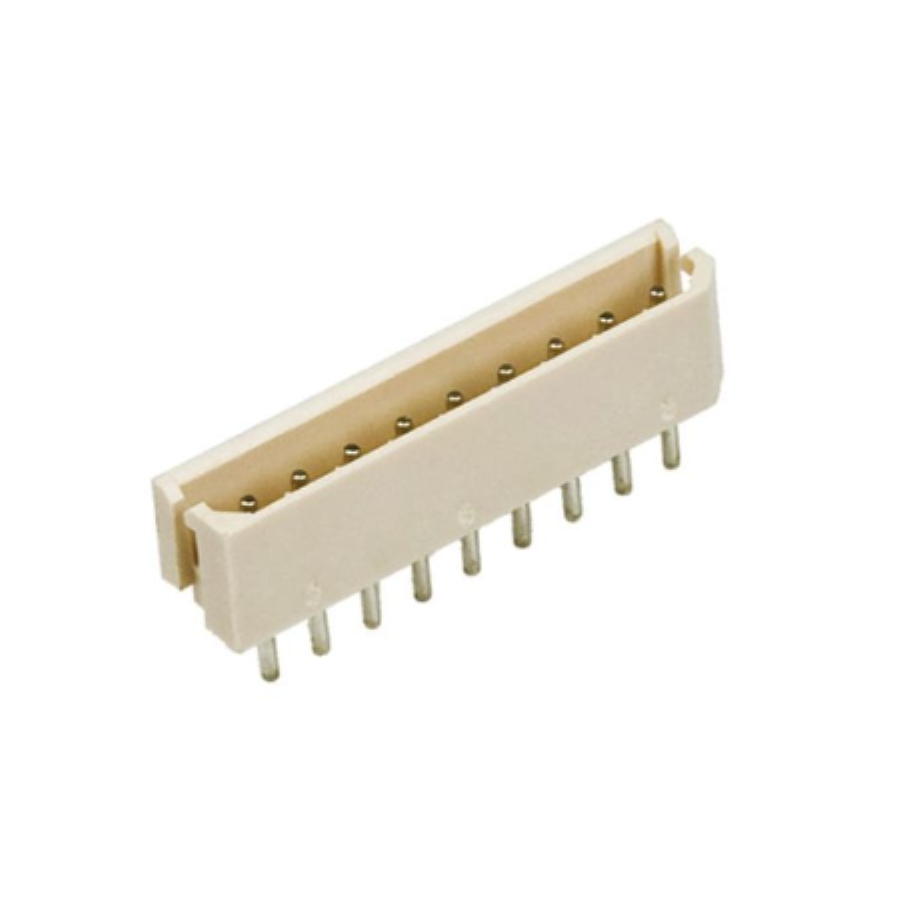

22-03-5155
Manufacturer:
Molex
Mfr.Part #:
22-03-5155
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:15 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 15 |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Number of Circuits | 15 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Pin (Male) |
| Number of Contacts | 15 |
| Connector Type | Header |
| Wire/Cable Gauge | 22 AWG |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 3.5052 mm |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
Stock: 2682
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.23254 | $2.32540 |
| 25 | $0.22747 | $5.68675 |
| 50 | $0.22251 | $11.12550 |
| 100 | $0.21766 | $21.76600 |
| 300 | $0.21291 | $63.87300 |
| 500 | $0.20827 | $104.13500 |
| 1000 | $0.20373 | $203.73000 |
| 3000 | $0.19929 | $597.87000 |
| 5000 | $0.19493 | $974.65000 |
