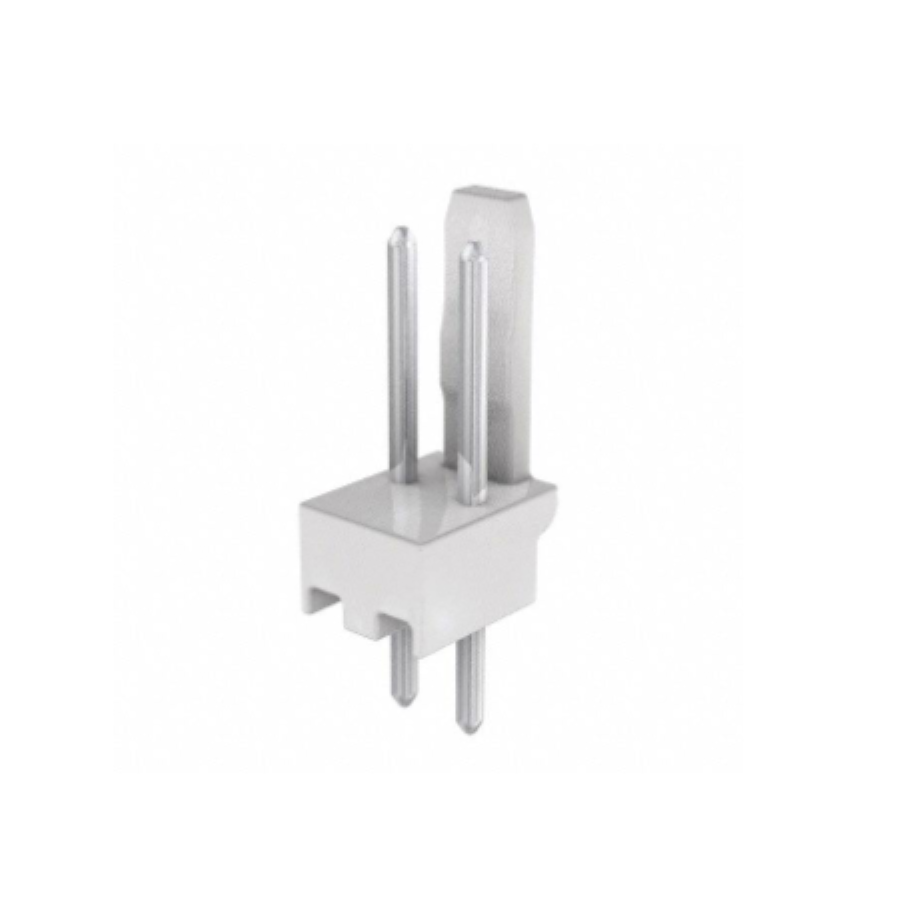

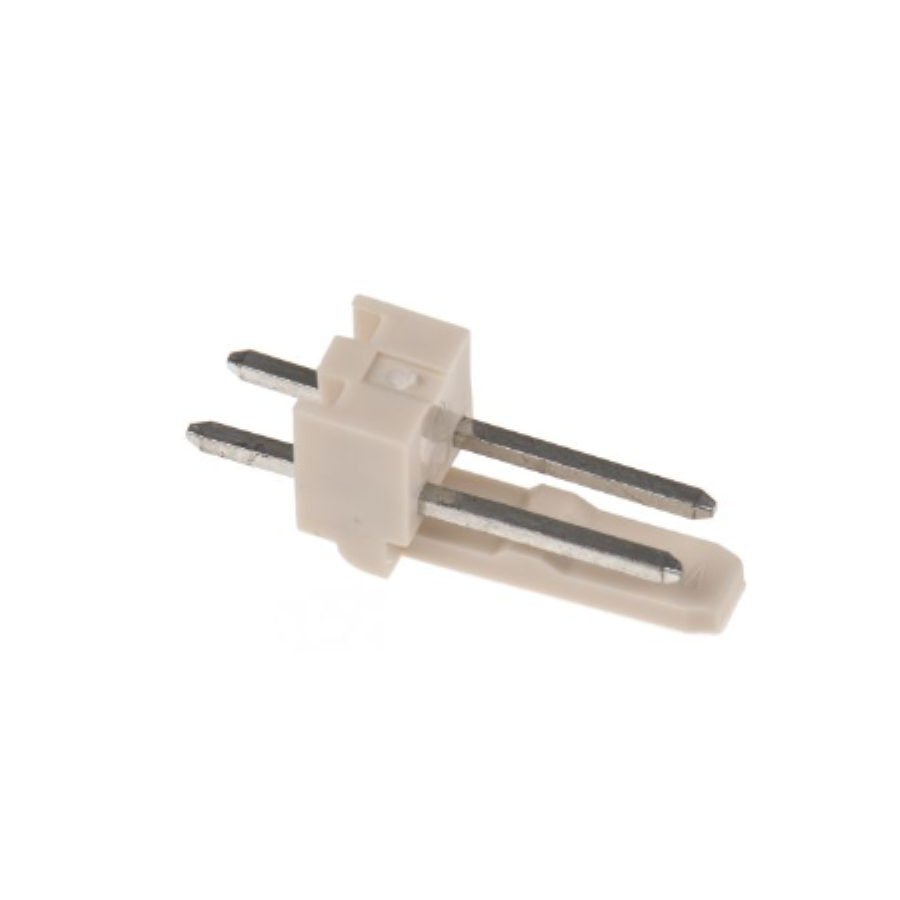

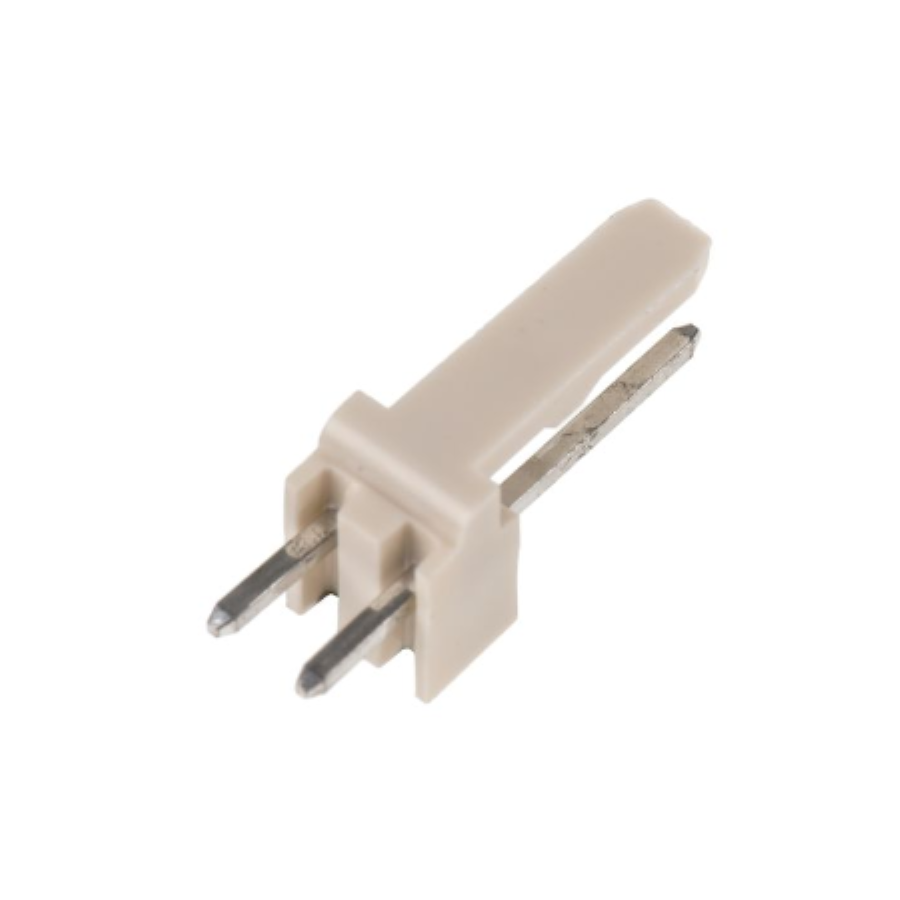

22-04-1021
Manufacturer:
Molex
Mfr.Part #:
22-04-1021
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 4.5 mm |
| Width | 4.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 11.7 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 4.9 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Hole Diameter | 1.19 mm |
| Number of Poles | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Friction |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Shape | Straight |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 7.493 mm |
| Contact Gender | Male |
| Mating Post Length | 7.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TH |
| Termination Post Length | 3.4 mm |
Stock: 12407
Distributors
pcbx
pcbxUnit Price$0.39413
Ext.Price$0.39413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39413 | $0.39413 |
| 10 | $0.30692 | $3.06920 |
| 25 | $0.29580 | $7.39500 |
| 50 | $0.27954 | $13.97700 |
| 100 | $0.26417 | $26.41700 |
| 300 | $0.24181 | $72.54300 |
| 500 | $0.22135 | $110.67500 |
| 1000 | $0.20262 | $202.62000 |
| 3000 | $0.19150 | $574.50000 |
