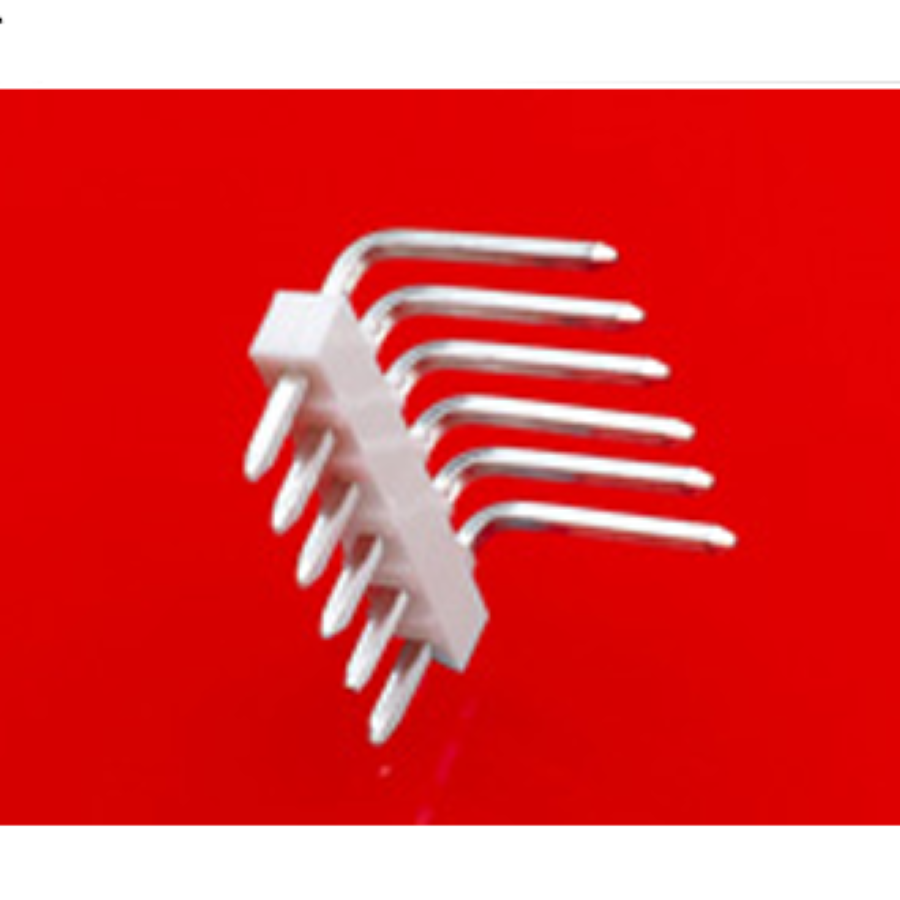

22-05-2061
Manufacturer:
Molex
Mfr.Part #:
22-05-2061
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 14.99 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 250 V |
| Height | 6.3 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 50 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 6 |
| Hole Diameter | 1.02 mm |
| Number of Poles | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 9.3726 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 1502
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.25306 | $2.53060 |
| 25 | $0.24016 | $6.00400 |
| 50 | $0.22792 | $11.39600 |
| 100 | $0.21630 | $21.63000 |
| 300 | $0.19798 | $59.39400 |
| 500 | $0.18121 | $90.60500 |
| 1000 | $0.16586 | $165.86000 |
| 3000 | $0.16087 | $482.61000 |
| 5000 | $0.15603 | $780.15000 |
| 10000 | $0.15133 | $1513.30000 |
