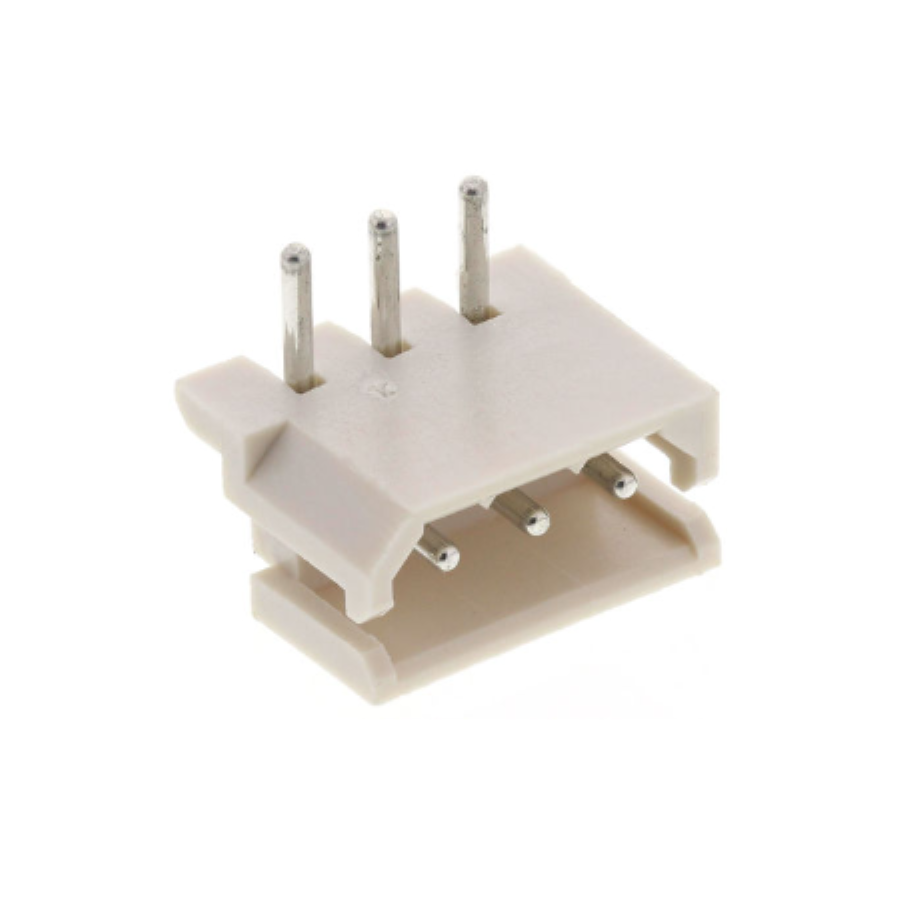

22-05-7035
Manufacturer:
Molex
Mfr.Part #:
22-05-7035
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 9.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 4.9 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 7.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.5 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 2.5 mm |
| Current Rating | 4 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| shrouded | Yes |
| Contact Gender | Male |
| Test Voltage | 1 kV |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.5 mm |
Stock: 7717
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.10772 | $1.07720 |
| 50 | $0.09215 | $4.60750 |
| 100 | $0.07883 | $7.88300 |
| 500 | $0.07402 | $37.01000 |
| 1000 | $0.06951 | $69.51000 |
| 3000 | $0.06690 | $200.70000 |
| 5000 | $0.06439 | $321.95000 |
| 10000 | $0.06198 | $619.80000 |
